Home > Products > LED street light > china 2016 new products heat dissipation material COB led street light 40W patented product with high lumens and MW driver

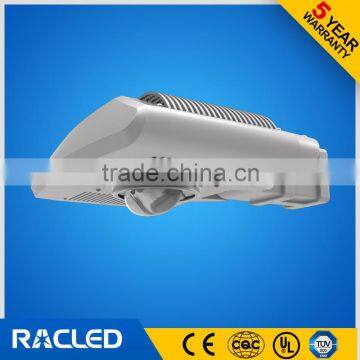

china 2016 new products heat dissipation material COB led street light 40W patented product with high lumens and MW driver
- Tianjin/Beijing
- T/T Credit Card
You May Like
-
led street light 30W Standardized modular with high lumens and MW driver
-
led street light 200W Standardized modular with high lumens and MW driver
-
60W Standardized modular with high lumens and MW driver. led street light
-
led street light 100W Standardized modular aluminum alloy lamp body material
-
new COB modular led street light 120W
-
new COB modular led street light 60W Professional beam angle adjustable
Product Details
LED Light Source | COB | Input Voltage(V) | 100-240vac 100-240vdc or other inout on your request | |
Lamp Power(W) | 40 | Lamp Luminous Flux(lm) | 4000 | |
Lamp Luminous Efficiency(lm/w) | 100 | Color Temperature(CCT) | Pure White | |
Working Temperature(℃) | -40, +50 | Working Lifetime(Hour) | 50000 | |
Lamp Body Material | Aluminum | IP Rating | IP65 | |
Certification | CCC, CE, CQC, EMC, UL | Warranty(Year) | 5 | |
Place of Origin | Shaanxi, China | Brand Name | RACLED | |
Model Number | RACBDZ40MHN70-01 |
Product Description
Advantages
² New composite heat conduction/heat dissipation material application; integrated, standard and modular heat dissipation & shell;
² High reliable and performance LED integrated optical source; the whole light effect is over 100Lm/W.
² Based on patented all-round ventilated heat dissipation design with low thermal resistance and wind resistance;
² Intelligent constant driving technology, break power source life bottleneck
² Equal luminance grading design to eliminate zebra effect; low glare design; disable glare evaluation TI<10, unsuitable glare evaluation G>5;
² Modular jointing scheme, single module can be applied to 40/50/60W with the maximum power 300W after jointing
² 0-90°adjustable installation angle; protection grade IP65; can be used under -25°-- -55°.
Technical parameters
Specification | |
Module | RACBDZ40MHN70-01 |
Module | 1 |
Power: | 40w |
Replace HID Lamp: | |
Type Of Chip: | High Power LED Chip |
Brand Of Chip: | Cree Osram LG |
Lighting effect | >=100Lm/W |
Light flux | >=4000lm |
Install angle | 0-90° |
Power factor | >=0.95 |
Color rendering index | >70Ra |
Light source voltage | DC36V |
Light distribution type | Optical glass rectangular Equal brightness of light distribution |
Source life | >50000H |
Color Temperature: | 5500 ~ 6500K |
IP rating | Ra ≥ 70 |
Dimensions | |
Finishing Color: | White |
SHAPE: | Rectangle |
Weight: | 5.3 Kg |
Size: | 420×360×140mm |
Diameter of socket: | 50-60mm |
Package Size: | |
Work Environment | |
Input Voltage: | 100-240vac 100-240vdc or other inout on your request |
Operating Temperature: | -25℃—+55℃ |
Application | |
Application: | Mainly suitable for the lighting of urban traffic routes and resident community roads etc. |
Recommend mounting height: | 6m-8m |
FAQ
Q1.Are you a trading company or factory?
We are the factory based in the ancient city Xi’an China since 2015. We acquired and worked to IS9000 quality standard and we are the TUV audited manufacturer.
Q2.How much will the shipping cost of LED light?
We are committed to keeping shipping costs as low as possible. The shipping charges are calculated based on the ordered products. We ship to worldwide.
Q3.How can I make orders for LED light?
Please see the following order info:
v Delivery term: FOB, EXW, CFR, CIF.
v Delivery terms: T/T, western union, L/C.
v Delivery time: 3-5 days for sample, 7-15 days for bulk order.
We accept mini order.
Q4.How do you ensure the quality of LED light?
We are strictly focus on quality control. All goods 100% inspected before shipping, we do at least 5 test, including Incoming raw material test, sample test then bulk produce, waterproof test, burn-in test, appearance inspection.
Q5.You have the ability to do independent reseach and development?
Our engineering department has 11 people, we have the research and development capabilities.We also collect regularly each customer feedback, product improvement and new product development. We also hold monthly new product launches.
Q6.Can we add our logo on products?
YES.you can add your logo on products.
Q7. Can we customize product?
Yes, OEM&ODM is welcome.
Q8.How long can I get your reply?
We respond to every inquiry within 24 hours.
- 2014 . 6 Led Lighting Exhibition
- 2015 . 6 Guangzhou international lighting exhibition
- 2015 .10 China shaanxi specialty products exhibition
- 2015 .10 China shaanxi Uzbekistan economic and trade fair
- 2015 .11 Interlight Moscow powered by light+building
This type of LED lamps can request according to the buyer, customization
