DVI Splitter 1 in 4 Out With Dual-link DVI-D and UP to 4K

DVI SPLITTER

Dual link DVI-D & up to 4K

Model No:DVISP002M1  2 Port splitter

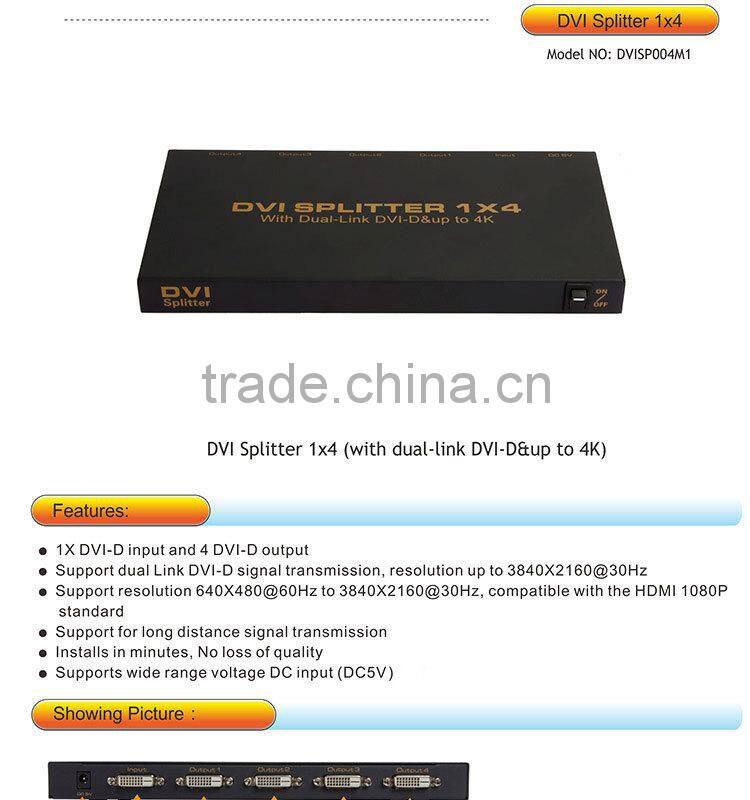

Model No:DVISP004M1  4 Port splitter

Model No:DVISP008M1  8 Port splitter

 Model No:DVISP016M1  16 Port splitter

FEATURES:

l 1X DVI-D input and 2/4/8/16X DVI-D output

l Support dual Link DVI-D signal transmission, resolution up to 3840X2160@30Hz

l Support resolution 640X480@60Hz to 3840X2160@30Hz, compatible with the HDMI 1080P standard

l Support for long distance signal transmission

l Installs in minutes, No loss of quality

l Supports wide range voltage DC input (DC5V~12V)

SPECIFICATIONS:

DVI interface type ………………………….................................................................... Dual link DVI-D

Single link input/output resolution …………………………...............................up to 1920x1080@60Hz

Dual link input/output resolution …………………………..................................up to 3840x2160@30Hz

Support video color format …………………………..…..…………………….24bit/deep color 30bit,36bit

Max signal bandwidth………………………………………………………….……………………..340MHz

Max baud rate…………………….………………….………………….………………3.4Gbps Serial Link

Input/Output TMDS signal ………….……………………………….……………….0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..……………………. 5Volts p-p (TTL)

DVI input cable distance…………………………………………≤10m AWM 20276 DVI standard cable

DVI output cable distance………………………………………..≤10m AWM 20276 DVI standard cable

Max working current ………………………………………….……….…….…….0.8A/5V (DVISP002M1)

Max working current ………………………………………….……….…….….....1.2A/5V (DVISP004M1)

Max working current ………………………………………….……….…….…...1.5A/12V (DVISP008M1)

Max working current ………………………………………….……….…….…...2.5A/12V (DVISP016M1)

Power adapter …………………AC 100V~240V 50HZ/60Hz, DC5V/2A(DVISP002M1/DVISP004M1)

Power adapter ……………….AC 100V~240V 50HZ/60Hz, DC12V/3A(DVISP008M1/DVISP016M1)

Operating Temperature range ……..…………….……………………………………………. -5 to +45℃

Storage Temperature range……………………………………………………………………. -15 to +55℃

Operating Humidity range ………………………….….……….……….10 to 90%RH (No Condensation)

Storage Humidity range………………………….….……….……………5 to 95%RH (No Condensation)

Case Dimension (L x W x H) ………………………………….…………. 179x66x28mm (DVISP002M1)

Case Dimension (L x W x H) ………………………………….………….277x136x27mm (DVISP004M1)

Case Dimension (L x W x H) ………………………………….………….482x180x44mm (DVISP008M1)

Case Dimension (L x W x H) ………………………………….………….482x180x66mm (DVISP016M1)

Weight …….…………………………….………………………………………….…...370g (DVISP002M1)

Weight …….…………………………….………………………………………….…...800g (DVISP004M1)

Weight …….…………………………….………………………………………….…..1.5kg (DVISP008M1)

Weight …….…………………………….……………………………………………...1.8kg (DVISP016M1)
