Home > Products > UHMWPE PIPE > High Quality Wear Resistance Ultra-High molecula weight polyethylene Dredging Pipeline

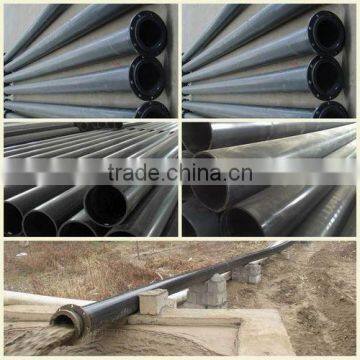

High Quality Wear Resistance Ultra-High molecula weight polyethylene Dredging Pipeline
USD $20 - $300
/ Meter
100 Meters(Min.Order)
- 40000 Metric Ton / Metric Tons per Month
- QINGDAO
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | MAX | |
| Model Number | uhmwpe pipe | Material | PE | |
| Specification | 65-800mm | Length | Customization | |
| Thickness | 8mm-38mm | Standard | International Standard |
Product Description
Specifications
High Quality Wear Resistance UHMWPE Dredging PipelineExcellent anti-aging
Good chemical resistance
Lightweight
ISO
High Quality Wear Resistance Ultra-High molecula weight polyethylene Dredging Pipeline
Brief Introduction
UHMWPE is a thermoplastic engineering plastic with a viscosity-average molecular weigh greater than 1.5×106, and is made by polymerization of ethylene under the action of a catalyst. Its molecular weight has reached over 5 million, its five properties of abrasion, impact and corrosion resistance, self-lubrication, and absorption of impact energy are the best among the available plastics. It is called globally “marvelous plastics” UHMWPE, a new star of materials, will present a vigorous life and play an important part in many regions of the national economy.
Characteristics
1. Outstanding impact strength even at very low temperature.
2. Excellent sliding abrasion resistance, wear strength several times as large as steel.
3. Very low coefficient of friction.
4. Nonstick, self-lubrication properties.
5. Good chemical resistance.
6. Excellent anti-aging.
7. Hygienic and nontoxic
8. Lightweight.
9. Hydrophobic, energy absorption and sound-dampening properties.
Applications
1.Building machinery, agriculture machinery, mining machinery; e.g. liners for silos, hoppers, dump trucks, railcars and chutes.
2.Transporting machinery: sliding guide, guide roll, bushing.
3.Packing, container and tubing: open-type pot, bucket, gasoline tank, gas tube, conveying tube of grain.
4.Pulp and paper industry: doctor blade, suction box cover, filter, chain conveyor plate and dewatering plate.
5.Textile machinery: loom picker, shuttle, stick, strap, cap, buffer, gear, pinion and small roller.
6.Chemical industry: pump impeller, pump housing, valve seats and valve gasket.
7.Medical, macromolecular material: artificial articulation, surgical parts.
8.Sport goods: ski and snowboard bottom surface, snowmobile drive sprocket, golf ball core.
9.Aviation and military: bulletproof vest, aircraft seat.
Specification Table
| UHMWPE Pipe Specification Table | ||||||
| Diameter (mm) | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6MPa | 2.0Mpa |
| Wall Thickness(mm) | ||||||
| 65 | 8 | 9 | ||||
| 96 | 9 | 10 | ||||
| 110 | 8 | 10 | ||||
| 130 | 8 | 10 | 12 | |||
| 159 | 10 | 12 | 15 | |||
| 168 | 8 | 10 | 13 | 16 | ||
| 205 | 8 | 10 | 12 | 15 | 18 | |
| 219 | 9 | 11 | 13 | 16 | 20 | |
| 236 | 10 | 12 | 14 | 18 | 22 | |
| 250 | 10 | 12 | 15 | 19 | 23 | |
| 273 | 9 | 11 | 13 | 16 | 21 | 25 |
| 280 | 9 | 11 | 14 | 17 | 21 | 26 |
| 300 | 10 | 12 | 15 | 18 | 23 | 27 |
| 315 | 10 | 12 | 15 | 19 | 24 | 29 |
| 325 | 10 | 13 | 16 | 19 | 24 | 30 |
| 350 | 11 | 14 | 17 | 21 | 26 | 32 |
| 377 | 12 | 15 | 18 | 22 | 28 | 35 |
| 400 | 12 | 16 | 19 | 24 | 30 | 36 |
| 415 | 13 | 16 | 20 | 25 | 31 | |
| 426 | 13 | 17 | 20 | 25 | 32 | |
| 536 | 16 | 21 | 26 | 23 | ||
| 560 | 16 | 22 | 27 | 33 | ||
| 630 | 19 | 25 | 30 | 37 | ||
| 652 | 20 | 26 | 32 | 38 | ||
| 710 | 21 | 27 | 34 | |||
| 800 | 23 | 31 | 38 | |||
