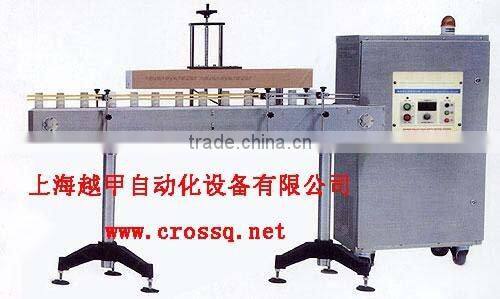

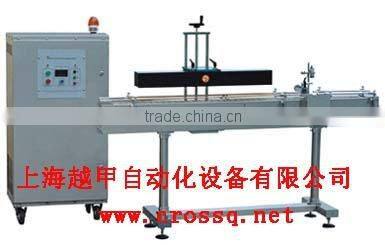

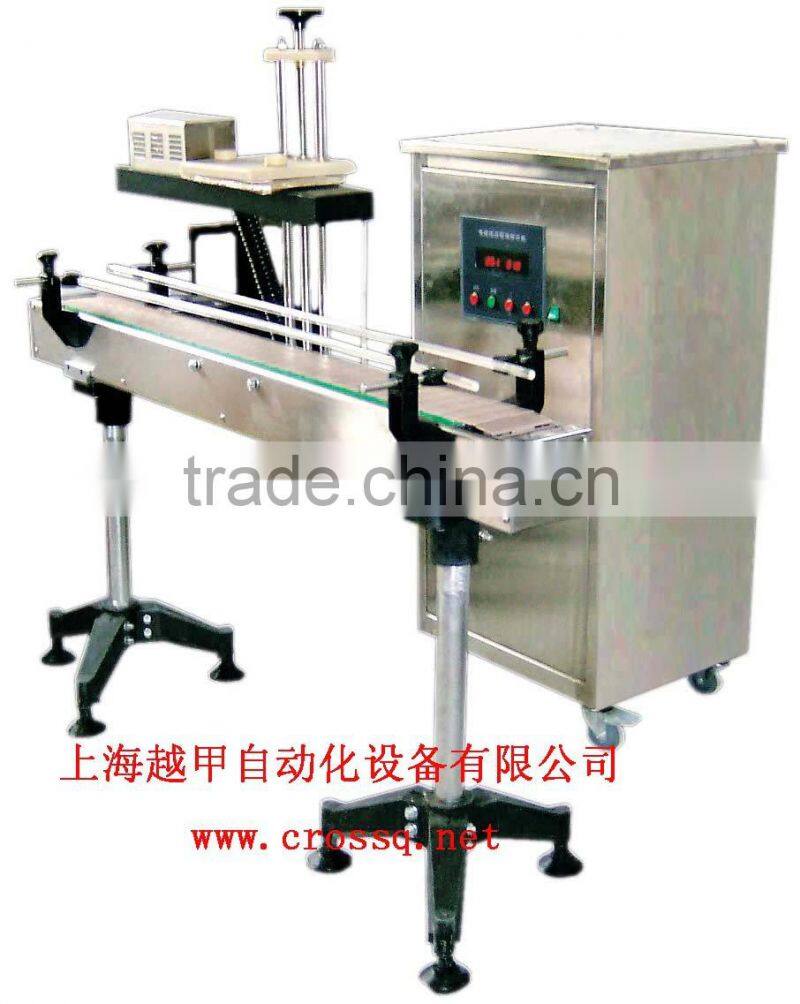

Automatic Magnetic Sealing Machine SM-I

Automatic Magnetic Sealing Machine SM-I

FEATURES

1. Aluminum foil produce high temperature instant to keep aluminum foil adhesive to bottle strong, achieve high seal effect.

2. With reasonable design, reliable performance, easy operation, high efficiency, with small size and light weight, low noise and little consumption.

3. Advance digital microcomputer control, dynamic frequency auto-tracing technology, with newest insulated bipolar transistors IGBT module.

4.Own multi-protection function, when sealing can display dynamically, low frequency output, whole machine fully comply with the stringent requirements of airtight seal, seal intact rate nearly 100%.

5. Control system uses a modular digital integrated circuit transistor.

6. Cooling system adopts dual-fan cooling system/double radiator force water cooling system.

APPLICATIONS

SM-I mainly used for sealing drugs, liquor, perfume, detergent, milk, drinks, food, chemical products.

SPECIFICATIONS

Type SM-I

Sealing Diameter 10-60mm
Frequency 100KHZ+-5%
Sealing Speed 0-30 bottles/min
Container Height unlimited
Rated Output 580W 2KW

Electric Currency 5A

Voltage 220V-240V

Dimension 2000*930*1250 (mm)

Power Supply 220V 50Hz

Weight 180 kg
