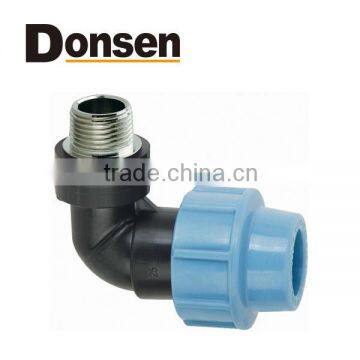

90 degree elbow male with brass threaded insert
- 100000 Carton / Cartons per Month
- ningbo/ shanghai
- T/T D/P D/A
You May Like
-
2014 Single Union Ball valve PN16 (Straight instsert) PP FITTING
-
2014Single union ball valve PN16(Female thread and ST) PVC VALVE
-
2014 Reducing Coupling PP COMPRESSION FITTINGS PP PIPE FITTINGS
-
2014 Male adaptor PP COMPRESSION FITTINGS IRRIGATION FITTINGS
-
2014 CLAMP SADDLE WITH BRASS INSERT IRRIGATION FITTINGS
-
90 DEGREE TEE WITH THREADED MALE TAKE OFF
Product Details
| Material | Other, plastic+copper | Technics | Other, injection | |
| Type | Elbow | Place of Origin | Zhejiang, China | |
| Model Number | COD.2020 | Brand Name | Donsen | |
| Connection | Male | Shape | Equal | |
| Head Code | Other, ound |
Product Description
Specifications
1.100%imported PP material2.Professional factory
3.OEM order available
4.1.0-1.6Mpa &20-110mm
5.Easy & quick installation
DONSEN PP compression fittings line has been designed for the conveyance of fluids at high pressures, for water conveyance, for potable water distribution and applications in the thermo-hydraulic sector. This product line is accordance with the most severe international standards in terms of mechanical properties and alimentary compatibilities.
Technical data
Materials
Part | Material |
Body(A) | Heterophasic block polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature. |
Blocking bush(D) | Polypropylene |
Nut(B) | Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004) |
Clinching ring(C) | Polyacetal resin(POM)with high mechanical resistance And hardness |
O Ring gasket(E) | Special elastomeric acrylonitrile rubber(EPDM) for alimentary use |
Reinforcing ring | AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1''to 4'' |
Working Pressures
DONSEN PP compression fittings allows the maximum working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
Dn | PFA* | PMA* | PEA* |
16-63 | 16 | 20 | 24 |
75-110 | 10 | 12.5 | 15 |
Temperature(°C ) | Da-10a25 | Da+26a+35 | Da+36a+45 |
16-63 | 16 | 20 | 24 |
75-110 | 10 | 12.5 | 15 |
Reference Standards
Dimensions: UNI 9561Working
Pressure: UNI 9562,DIN 8076-3,ISO 14236,BRL-K03.
Polyethylene(PE)pipes: UNI 7990,DIN 8074,UNI EN 12201
Threads: UNI ISO7/1,UNI EN 10026-1,ANSI ASME B1-20.1
Flanges: DIN 2501-1,UNI EN 1452-3.IS 7005-2
