Home > Products > Motion Detect Modules > Mini High Sensitivity Pyrosensor Motion Detect Modules SB0071
Mini High Sensitivity Pyrosensor Motion Detect Modules SB0071
- shenzhen
- T/T Credit Card
You May Like
-
SB0061-best price mini sensor module for ligjhting and Security top manufacturer
-
SB00422A-Delay time Changeable Human Body Sensor Module
-
Smart pir Sensor Module with adjust time & distance freely
-
24*32mm mini PIR motion sensor /detector modules with high sensitivity, fast delivery, great quality
-
3-5m SB00322A-1 Intelligent PIR Sensor motion module
-
10 by 8mm size 3-5m PIR Sensor motion module , factory price
Product Details
| Place of Origin | Guangdong, China | Brand Name | senba | |
| Model Number | SB0071 | Theory | Optical Sensor | |
| Output | Digital Sensor |
Product Description
Specifications
Type:SB0071Dual element, low noise, high sensitivity
TTL Output
4-5m detect length Field of view:100-110degree
PIR infrared radial sensor SB0071

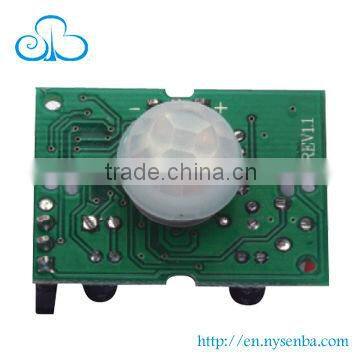

Motion detector module uses a motion detector IC and PCB mounted Fresnel lens.
Item: SB0071
General
SB0071 is a pyroelectric sensor module which developed for human body detection. A PIR detector combined
with a fresnel lens are mounted on a compact size PCB together with an analog IC, SB0061, and limited
components to form the module. High level output of variable width is provided.
Features and Electrical Specification
Compact size (24 x 32 mm)
Supply current: DC5V-20V(can design DC3V-24V)
Current drain :< 50uA
Voltage Output: High/Low level signal:3.3V
TTL output: TTL output can be directly connected to micro-controller or logic device
High sensitivity
Delay time:5s-18 minutes(as customer requirement)
Operation Temperature: -15°C -70°C
Infrared sensor: dual element, low noise, high sensitivity
Light sensor: CdS photocell (can be add as customer requirement)
