10MM Outdoor (GL10528) Cds Light Sensor for Street Light, Factory Supply
- 1000000 Piece / Pieces per Month
- ShenZhen
- T/T Credit Card
You May Like
-
5MM Small Size High Confirmity Cds Photoresistor Coated with Epoxy GL5528
-
Hot sale Indoor Cds Photoresistor for Light Control Switch GL5528
-
5MM High Conformity LDR Sensor for Electronic toy
-
Mini Size Indoor LDR Sensor for Light Control Switch GL5528
-
Best Price Outdoor LDR Sensor for Automatic Control Door GL5528 from Factory
-
Coated with Epoxy LDR Sensor For Indoor Ray Control GL5528
Product Description
Specifications
Cds Photoresistor1. High sensitivity,Fast response
2. Good spectrum characteristic
3. Factory Price
4. Sample Free

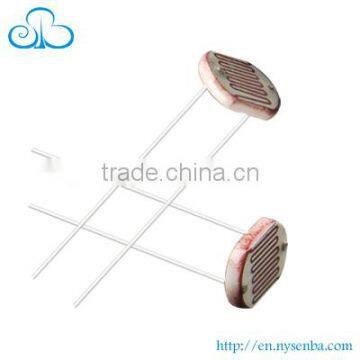

10MM Outdoor (GL10528) Cds Light Sensor for Street Light, Factory Supply
10mm Ceramic Mini LDR photo sensor , best price from largest manufacurer
General Theory:
Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminated area based on this characteristic........
Features for Cds Light Sensor
Coated with epoxy
Good Reliability
High Sensitivity
Small Volume
Fast Response
Good Spectrum Characteristic
Applications for Cds Light Sensor
Switch
Light control
Electronic toy
Light control lamp
Photoelectric control
Industrial control
Camera automatic photometry
Annunciator
Specifications for Cds Light Sensor
Specification | Type | Max. Voltage (VDC) | Max. power (mw) | Environmental temp. | Spectrum peak value (nm) |
φ10 series | GL10516 | 200 | 200 | -30~+70°C | 560 |
GL10528 | 200 | 200 | -30~+70°C | 560 | |
GL10537-1 | 200 | 200 | -30~+70°C | 560 | |
GL10537-2 | 200 | 200 | -30~+70°C | 560 | |
GL10539 | 200 | 200 | -30~+70°C | 560 |
Specification | Light resistance (10Lux) (KΩ) | Dark resistance (MΩ) |
r100/10 | Response time (ms) | Illuminance resistance Fig. No. | |
Increase | Decrease | |||||
φ10 series | 5-10 | 1 | 0.6 | 30 | 30 | 3 |
10-20 | 2 | 0.6 | 30 | 30 | 3 | |
20-30 | 3 | 0.7 | 30 | 30 | 4 | |
30-50 | 5 | 0.7 | 30 | 30 | 4 | |
50-100 | 8 | 0.8 | 30 | 30 | 6 | |
