Senba Opto-coupler Analog Optotransistor for Audio Power Amplifier LCR0202

FOB Price

Negotiable / Piece

500 Pieces(Min.Order)

Supply Ability 1000000000 Piece / Pieces per Month
Port shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	senba
Model Number	LCR0202	Usage	Other
Theory	Current Sensor	Output	Analog Sensor

Product Description

Specifications

1.Pure resistor and non-polarity output
2.Wide range of analog linear resistance, the low "on" resistance, high"off" resistance

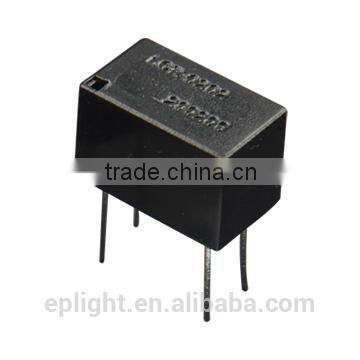

Senba Opto-coupler Analog Optotransistor for Audio Power Amplifier LCR0202

Analog Linear Optical Coupling is photoelectric component by inputting the different current to control the changes of resistance. It makes use of CdS and LED semi-conductor with rigorous selection, aging and test. The product is widely used by current input control and pure resistance with non-polarity output.Our company own the patent of manufacturing and the patent number is ZL02225334.3.

Characteristics

Pure resistor and non-polarity output .
Wide range of analog linear resistance, the low “on”resistance, high “off”resistance.
Simple circuit configuration suitable for DC and AC use.
Input to output isolation, and low distortion coupling.
Encapsulation with PPO high-temperature resistant material.

Typical Application
Acoustic protect and control.
Volume control and electric isolation coupling.
Light adjust and motor speed control.
Communication transmission and automatic control.

Specification

Model	LCR-0202
Encapsulation	DIP-4 (cuboid small package)
Input Current	0-20mA, Max.40mA
Input Voltage	1.6-2.5VDC
Output Light Resistance	50Ω-1KΩ @20mA-0.01mA
Output Dark Resistance	1Ω-10MΩ @10 seconds off later
Response time	<2.5ms
Insulating Voltage	>2500VRMS
Working Frequency	<300KHz
Out-cell Resist Voltage	<50V
Dynamic Range	<100dB
DC Coupling Capacitance	<5pF
Max Power	100mw
Operating Temp.	-30--70°C
Storage Temp.	-40--80°C

Dimensions

Cuboid Long	12.5mm
Cuboid Wide	7.5mm
Cuboid High	8mm
Lead Length	9mm
Lead Diameter	0.45mm
Pin Gap	9.0mm 4.5mm
Input Polarity Sign	LED Cathode-Lead

LCR-0203LCR-0202
