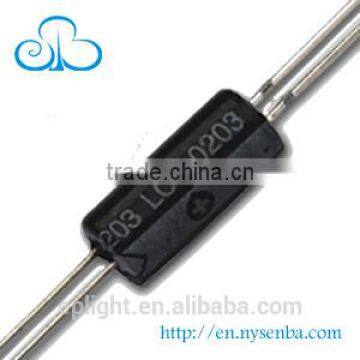

Pure resistor and non-polarity output analog linear coupling LCR0203
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | senba | |
| Model Number | LCR0203 | Usage | Other | |
| Theory | Current Sensor | Output | Analog Sensor |
Product Description
Specifications
Pure resistor and non-polarity output
Power isolation
Analog Linear Optical Coupling is photoelectric component by inputting the different current to control the changes of resistance. It makes use of CdS and LED semi-conductor with rigorous selection, aging and test. The product is widely used by current input control and pure resistance with non-polarity output.Our company own the patent of manufacturing and the patent number is ZL02225334.3.
Characteristics
Pure resistor and non-polarity output .
Wide range of analog linear resistance, the low “on”resistance, high “off”resistance.
Simple circuit configuration suitable for DC and AC use.
Input to output isolation, and low distortion coupling.
Encapsulation with PPO high-temperature resistant material.
Typical Application
Acoustic protect and control.
Volume control and electric isolation coupling.
Light adjust and motor speed control.
Communication transmission and automatic control.
Specification
| Model | LCR-0203 |
| Encapsulation | Aluminum Alloy Columnar Package |
| Input Current | 0-20mA, Max.40mA |
| Input Voltage | 1.6-2.5VDC |
| Output Light Resistance | 50Ω-1KΩ @20mA-0.01mA |
| Output Dark Resistance | 1Ω-10MΩ @10 seconds off later |
| Response time | <2.5ms |
| Insulating Voltage | >2500VRMS |
| Working Frequency | <300KHz |
| Out-cell Resist Voltage | <50V |
| Dynamic Range | <100dB |
| DC Coupling Capacitance | <5pF |
| Max Power | 100mw |
| Operating Temp. | -30--70°C |
| Storage Temp. | -40--80°C |
Dimensions
| Cylindric Diameter | 6.0mm |
| Cylindric Long | 13.5mm |
| Output Lead Length | 27.5mm |
| Input Lead Length | 25mm |
| Lead Diameter | 0.45mm |
| Lead Gap | 2.8mm |
| Input Polarity Sign | LED Anode-Lead |
| Ektexine Material | PVC |
LCR-0203LCR-0202
