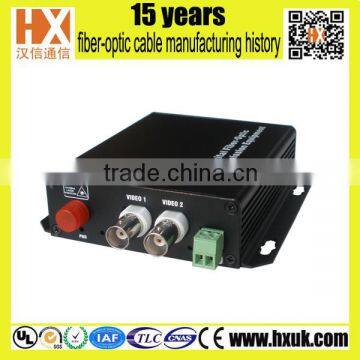

long distance transmission single mode cctv fiber optic transmitter receiver

Specifications

long distance transmission single mode cctv fiber optic transmitter receiver

1.Description

1).RB-FCV-VXXT/R series VoF unit can transmit XX line bidirectional digital video broadcasting, XX line bidirectional high-fidelity audio, XX line bidirectional asynchronous date,xx line 10/100M adapt Ethernet date to one fiber efficiently.

2).RB-FCV-VXXT/R series supports any high resolution dynamic or stationary picture high-fidelity transmit. It also can be anti-disturbance against several signals, environment, and work stably. It is widely used in security monitoring and control, high way, electronical policy management, automation control, intelligent residential districts and so on.

2.Feature

• 8-bit or 10-bit digitally encoded and non-compression video transmission
• Directly compatible with NTSC, PAL and SECAM CCTV camera systems and support RS-232, RS-422
• and RS-482 data protocols
• Power supply and other parameter state indication, which can monitor the operation condition of system
• Support no-damage regenerative trunk of video
• Constant input optical power, and large dynamic range, no electrical or optical adjustments required.
• Special ASIC design
• Industry-grade of operating temperature from 10 to 75, which is applied to the different working environment
• Hot-swap function
• Stand-alone type or card-type installed in 19" 2U or 4U rack-mount chassis.
• Optical interface: FC, ST, SC(optional)
• Abundant signal interface, such as video, data, audio, telephone, Ethernet, binary input/output and talkback

3.Application

1. Intelligent transportation system;

2. High speed way video monitoring and control system;

3. Toll monitoring and control system;

4. Close circuit TV industry monitoring and control;

5. TV program switching channel transmit;

6. High-fidelity video conference system;

7. Security monitoring and control system;

3.Package
