HDPE Blow Moulding Machine 10 Liter
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Other, PE bottle, jerrycan | |
| Plastic Processed | Other, PE, PP, PVC, PC, ABS | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | LONGWAYS | Model Number | LWB90D | |
| Voltage | 380v 60hz. | Power(W) | 60KW | |
| Dimension(L*W*H) | 4600*3000*2400mm | Weight | 8T | |
| Certification | CE | Warranty | 24 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

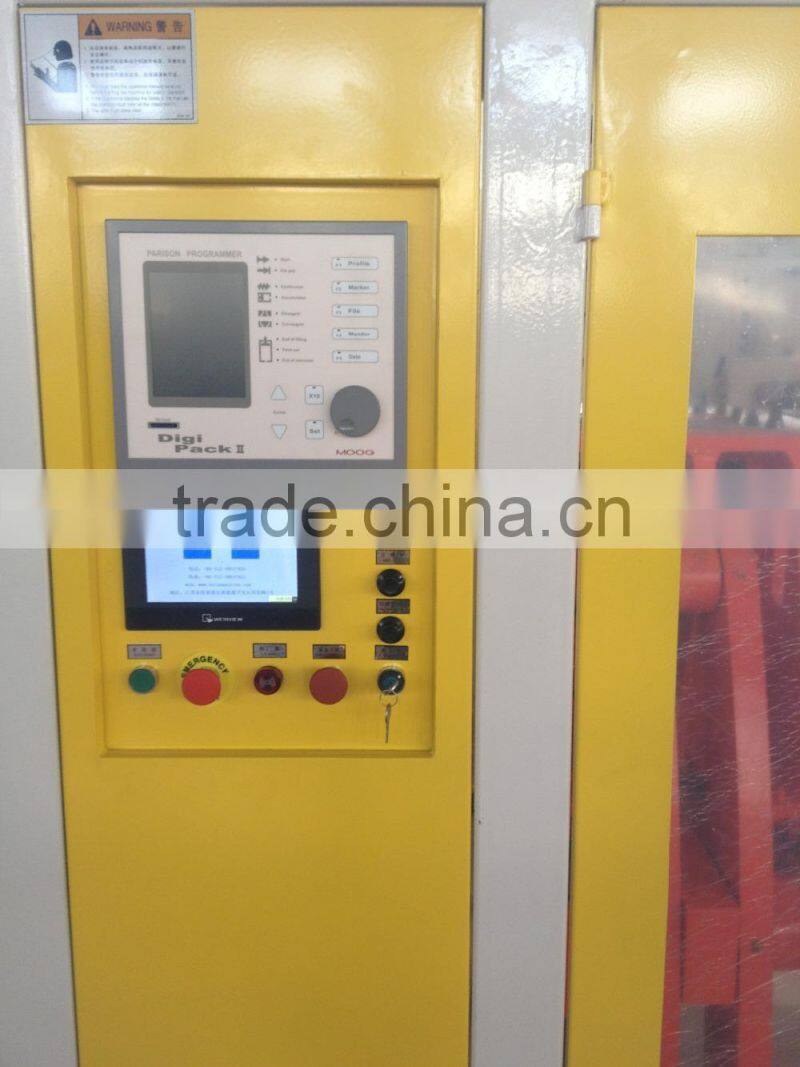

This is blow moulding machine 10 liter , A wide variety of materials can be used for the machine, which are suitable for producing 10-20L PE bottle. The clamping system is a high-precision double-station linear guide, extrusion system using a hard gear reducer and inverter. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.The control system consists of PLC and Human-machine interface imported from Japan, and automatic temperature control module and imported electrical parts.

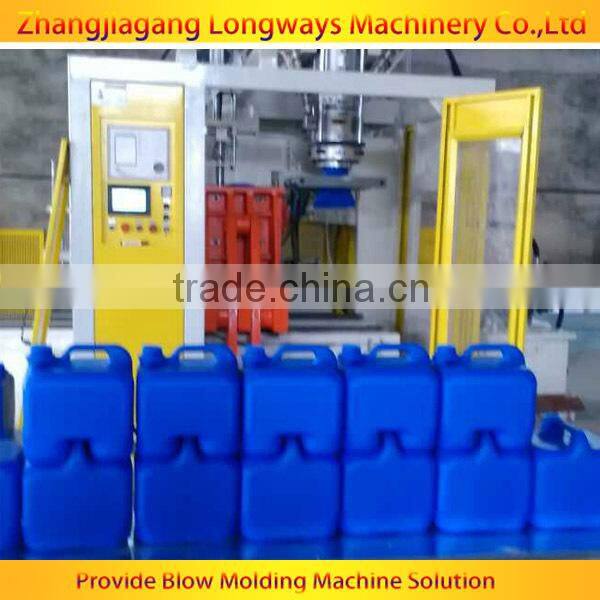

blow moulding machine 10 liter production process
HDPE blow moulding machine 10 liter specification
Basic parameters | Suitable material | PE.PP,PVC,PS,PETG, so on | |
Max volume | 20L | ||
Output capacity | 140~150 pcs/h | ||
Size | 4.6×3×2.4(M) | ||
Weight | 8.2T | ||
system | Specification | Parameters | Note |
Plasticizion system | Summarize | High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low temperature |
|
Reducer | Hard finishing,High intension,Low noise reducer |
| |
Screw | 90mm,L/D ratio 25, 38CrMoALA | Cooling system availLWe | |
Plasticization | 130Kg/H | HDPE | |
Heating Zone | 4 Aluminum Heater | Automatic heating | |
Heating power | 8KW/H |
| |
Extrusion Motor | Three phase asynchronous motor (380V,50HZ) |
| |
Cooling Fan | 4zone | Automatic cooling | |
Extrusion system | Summarize | High-grade alloy steel, center feeding |
|
Die head number | 1 |
| |
Center distance of die heads | / |
| |
Max die mouth | 180mm |
| |
Heating zone | 4 Stainless steel heating cycle |
| |
Heating power | 5~7KW |
| |
Clamping system | Summarize
| High intension, rigidity, center mold locking, stLWe mould opening and clamping system |
|
Clamping force | 108KN |
| |
Template distance | 240~660mm |
| |
Max mould size | 530X550mm |
| |
Mould material | High grade 50# steel |
| |
plastic oil bottle making machine plastic plasticing part
12l blow molding machine product making step
Extrusion blow moulding machine component brand
Extrusion plastic oil bottle making machine loading
Any inuqiry about Extrusion blow molding machine, please contact us!
