PETG container blowing machine, PETG blow moulding machine
- Shanghai
- T/T
You May Like
-
plastic barrel blowing machine, machine manufacture PE, PP, PVC container
-
Zhangjiagang extrusion blow moulding machine manufacture HDPE bottle 1L to 5L
-
Good quality plastic 1L to 5L double staiton blow moulding machine price
-
500ml hdpe cans blowing machine , plastic cans blowing machine, extrusion blowing moulding machine
-
HDPE Jar blowing moulding machine , PE jar molding machine, 500ml hdpe jar blowing machine
-
HDPE Jar making machine , PE jar moulding machine, 1L 2L hdpe jar blowing machine
Product Details
| Condition | New | Application | Other, PE bottle, jerrycan, shampoo bottle | |
| Plastic Processed | Other, PE, PP, PVC, PC, ABS | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | LONGWAYS | Model Number | LWB75D | |
| Voltage | 380V,440V,415V,220V | Power(W) | 65KW | |
| Dimension(L*W*H) | 4000*2300*2700mm | Weight | 6T | |
| Certification | CE | Warranty | 24 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
This is PETG blow moulding machine , A wide variety of materials can be used for the machine, which are suitable for producing 100ml to 5L PE bottle. The clamping system is a high-precision double-station linear guide, extrusion system using a hard gear reducer and inverter. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.The control system consists of PLC and Human-machine interface imported from Japan, and automatic temperature control module and imported electrical parts.
Plastic PETG container blowing machine process
Plastic PETG container blowing machine specification
Unit | Item | Specification | Description |
Extruding system
| Screw diameter | Φ75mm | Mixing model |
Max. Product Volume | 1L | Double station and tetra die-head | |
Screw L/D | 24:1 |
| |
Material of screw and barrel |
| 38CrMoALA | |
Plasticizing capacity | 90KG/Hr | Based on HDPE 5502 | |
Extruding method |
| Inverter motor, hardness tooth surface gear box | |
Driving power | 30KW |
| |
Screw revolution | 10—90rpm |
| |
Heating zones | 3 | Temperature module from Mitsubishi PLC | |
Heating power | 10KW | Solid state (SSR) and plug connection for all heaters | |
Blowers | 3 |
| |
Cooling function | Yes | Cooling water for feeding zone and gear box |
Plastic PETG container blowing machine extruder- die head

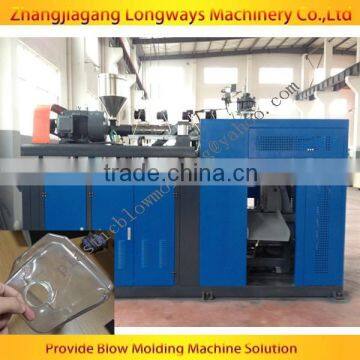

Plastic PETG container blowing machine detailed photos
PETG container blowing machine component brand
Any inuqiry about blow molding machine, blow moulding machine, please contact us! thanks!
