Home > Products > 0-3L blow molding machine > HDPE 2L 3L 4L Laundry Detergent Bottles Making Machinery

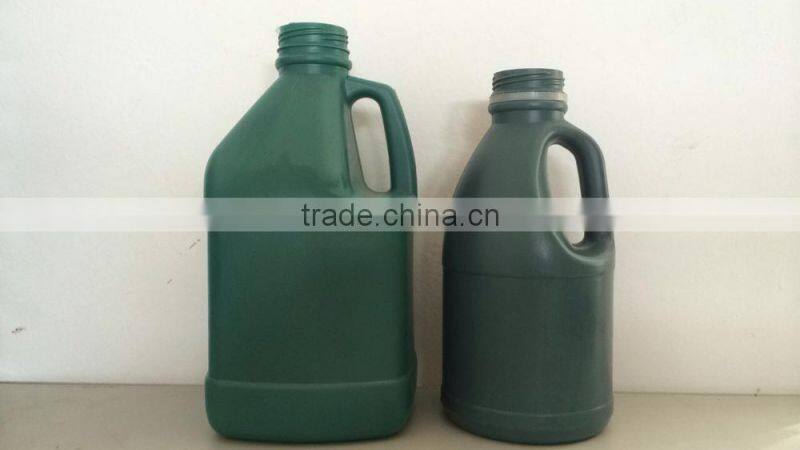

HDPE 2L 3L 4L Laundry Detergent Bottles Making Machinery
- Shanghai
 - T/T

You May Like
-


Laundry Detergent Container Making Machine
 -


Laundry Detergent Bottles Blowing Machine
 -


Laundry Detergent Bottles Manufacturing Machine
 -


LDPE Soft Ball Blow Molding Machine / Ball Blow Moulding Machine
 -


LDPE Ball Blower Machine / Ball Blow Moulding Machine
 -


Plastic Ball Blower Machine / Ball Blow Moulding Machine

Product Details
| Condition | New | Application | Other, PE bottle, jerrycan, shampoo bottle | |
| Plastic Processed | Other, PE, PP, PVC, PC, ABS | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | LONGWAYS | Model Number | LWB75D | |
| Voltage | 380V,440V,415V,220V | Power(W) | 65KW | |
| Dimension(L*W*H) | 4000*2300*2700mm | Weight | 6T | |
| Certification | CE | Warranty | 24 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
This is laundry detergent bottles making machinery, A wide variety of materials can be used for the machine, which are suitable for producing 100ml to 5L PE bottle. The clamping system is a high-precision double-station linear guide, extrusion system using a hard gear reducer and inverter. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.The control system consists of PLC and Human-machine interface imported from Japan, and automatic temperature control module and imported electrical parts.
Laundry detergent bottles making machinery process

detergent bottles making machine specification
Unit  | Item  | Specification  | Description  |


 Extruding system
  | Screw diameter  | Φ75mm  | Mixing model  |
Max. Product Volume  | 1L  | Double station and tetra die-head  | |
Screw L/D  | 24:1  |
  | |
Material of screw and barrel  |
  | 38CrMoALA  | |
Plasticizing capacity  | 90KG/Hr  | Based on HDPE 5502  | |
Extruding method  |
  | Inverter motor, hardness tooth surface gear box  | |
Driving power  | 30KW  |
  | |
Screw revolution  | 10—90rpm  |
  | |
Heating zones  | 3  | Temperature module from Mitsubishi PLC  | |
Heating power  | 10KW  | Solid state (SSR) and plug connection for all heaters  | |
Blowers  | 3  |
  | |
Cooling function  | Yes  | Cooling water for feeding zone and gear box  |
Plastic detergent bottle mould machine extruder- die head
Plastic shampoo bottle blow moulding machine plastic plasticing part

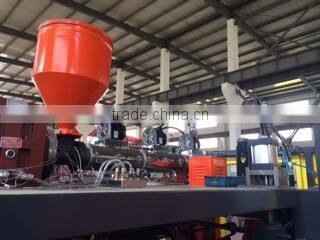

Blow moulding machine detailed photos
Blow moulding machine component brand

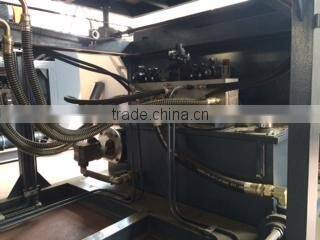

Blow moulding machine hydraulic valve and pipe
Any inuqiry about   plastic PE detergent bottles making machine , blow moulding machine, please contact us! thanks!
