Fast Speed 150mbps Ralink Chipest 11N 300M Wireless Wifi Router

FOB Price

US$ 0.1 - 15 / Piece

1000 Pieces(Min. Order)

Port Shenzhen or Hongkong
Payment TermsT/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock, Stock	Type	Wireless
Application	Soho	Function	Firewall, QoS, VPN, Other
LAN Ports	4	WAN Ports	1
Certification	FCC,CE, FCC,CE	Brand Name	OEM or JCG, JCG,or OEM
Model Number	U700, U700	Place of Origin	Guangdong, China

Product Description

Fast speed 150mbps Ralink Chipest 11N 300M wireless wifi router

Features

1.IEEE 802.11n compliance. Backwards compatible with 802.11b/g

2.Integrates router, Wireless access point, Four-ports switch and firewall in one

3.2.4GHz, wireless transmit rates up to 300Mbps (2T2R)

4.4x10/100Mbps LAN Port, 1x10/100Mbps WAN Port

5.2x5dBi Fixed Antenna

6.WDS Wireless Bridge

7.Built-in firewall, Filtering on IP address, MAC address, Domain name, Applications, etc

8.Supports 64/128-bits WEP, WPA/WPA2 Encryption

Specifications

Standard	IEEE 802.11n,IEEE 802.11g,IEEE 802.11b IEEE 802.3,IEEE 802.3u
Interface	LAN 4 10/100M Auto MDI/MDIX RJ45 port WAN 1 10/100M Auto MDI/MDIX RJ45 port
Frequency Range	2.4GHz-2.4835GHz
Wireless Speed	300Mbps
SOC Chipset	RTL8196E
CPU Clock Rate	400MHz
2.4GHz RF Chipset	RTL8192ER
10/100 Switch	RTL8196E
Flash	4MB
Memory	16MB
Spread Spectrum	DSSS
Modulation	BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Wireless Mode	Access Point ,Route mode ,Relay mode, WISP mode
System Requirement	Wired or wireless PC/Mac an available 802.11a/b/g/n wireless network
Transmission Distance	Indoor up to 100m , outdoor up to 300m (it is limited in an environment)
Receive Sensitivity@PE	11n : -70dBm@10% PER 11g : -72dBm@10% PER 11b: -85dBm@8% PER
Transmit Power	17dBm
Antenna	2x5dBi Fixed Antenna
LED Indicator	Status
Data Security	64/128-bits WEP; WPA/WPA2
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Operating Humidity: 10%~90%RH (non-condensing)
Power	5V/ 1A
Safety & Emission	FCC, CE

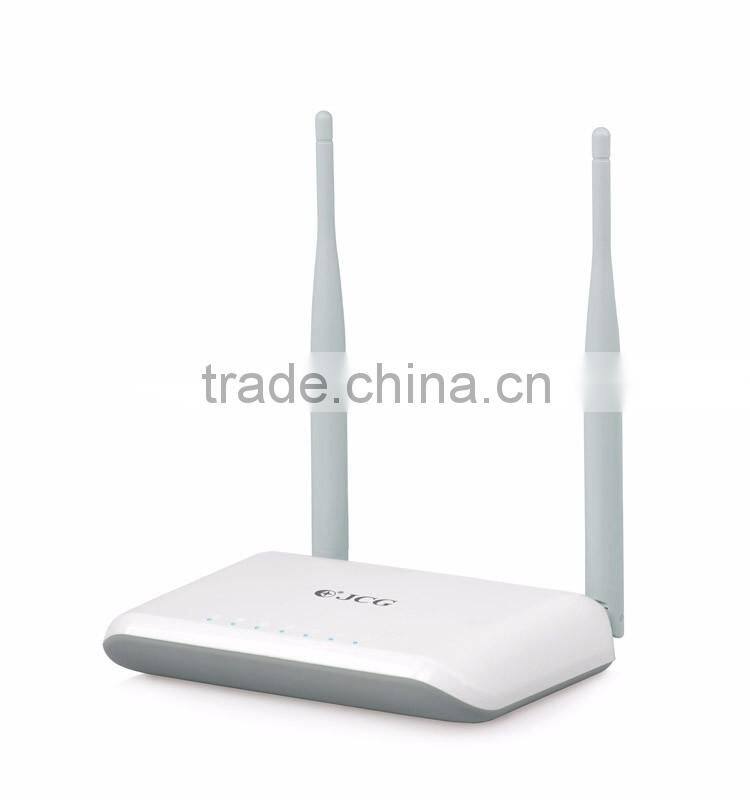

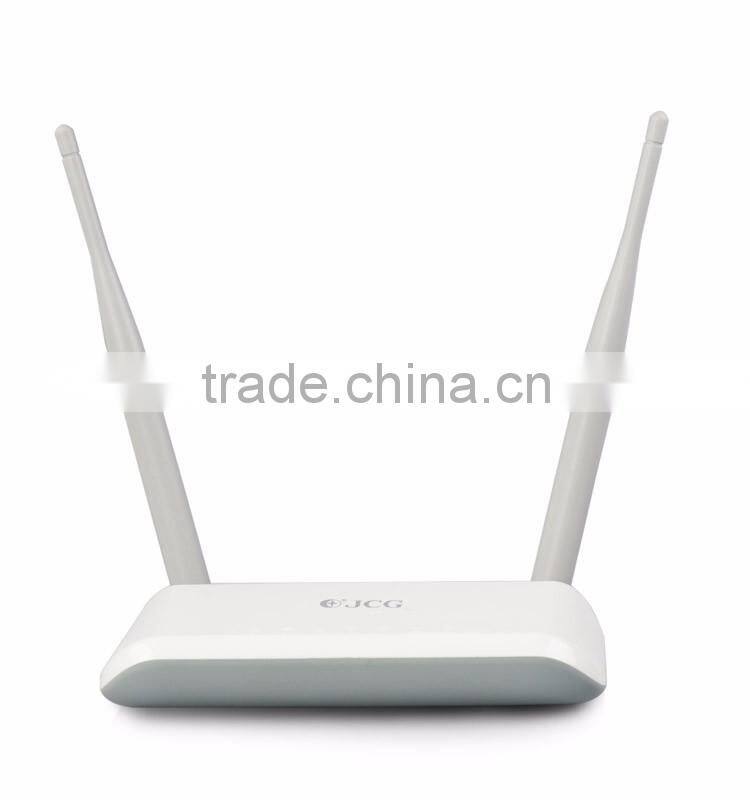

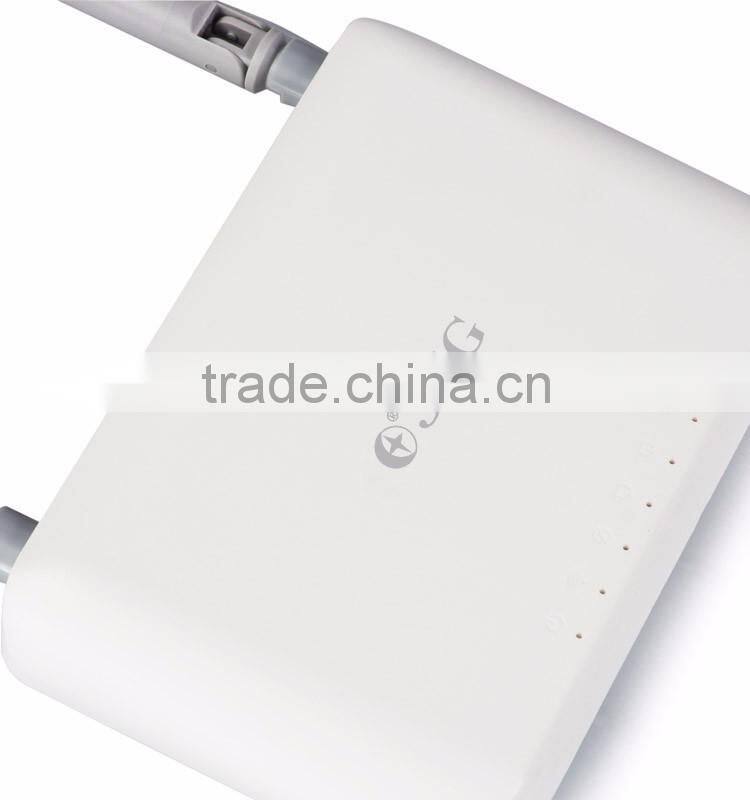

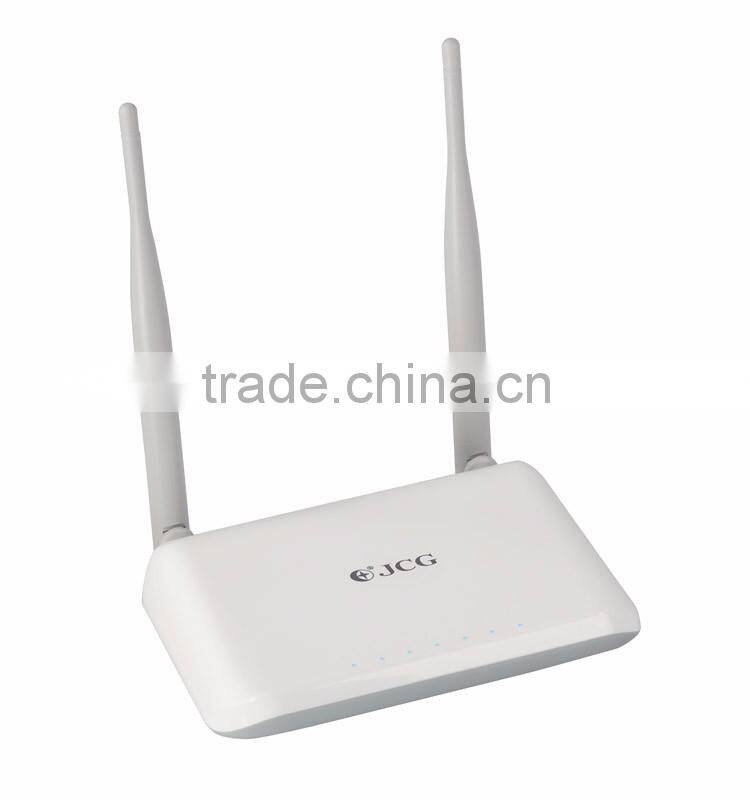

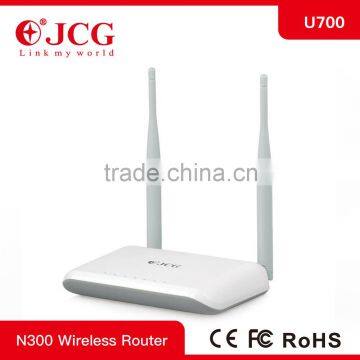

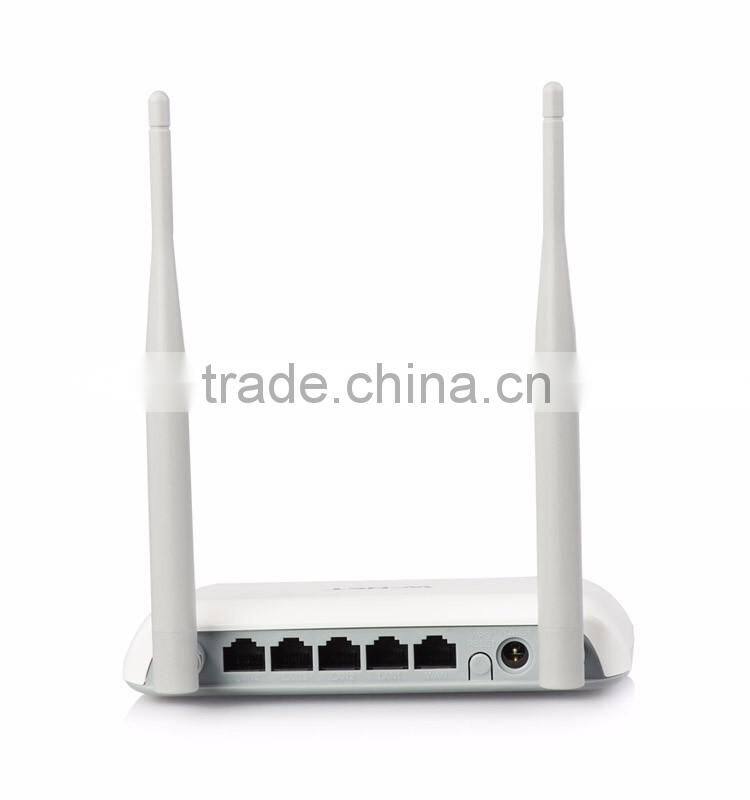

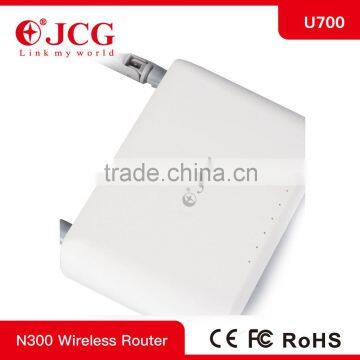

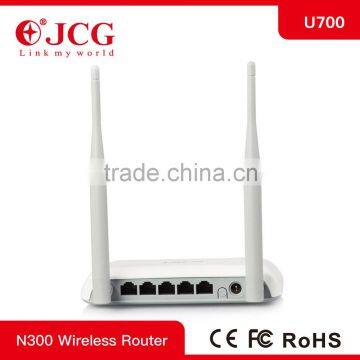

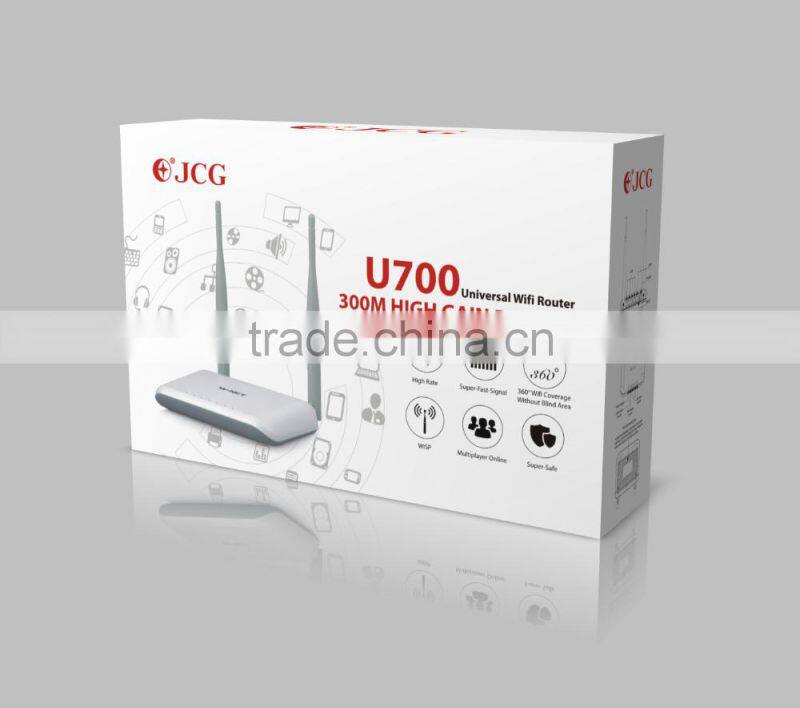

Products' pictures

Company informations

JCG is mainly focusing on the developing, manufacturing, marketing & services of Ethernet series products and Wireless networking products, such as10M-100M-1000Mbps Ethernet switches, router, Fiber converter, ADSL, Lan card series and wireless etc.

Our mission is to be the leading brand of smart wireless routers for small businesses and homes worldwide. Therefore we will constantly help our consumers worldwide to provide much more competitive edge wireless networking products.

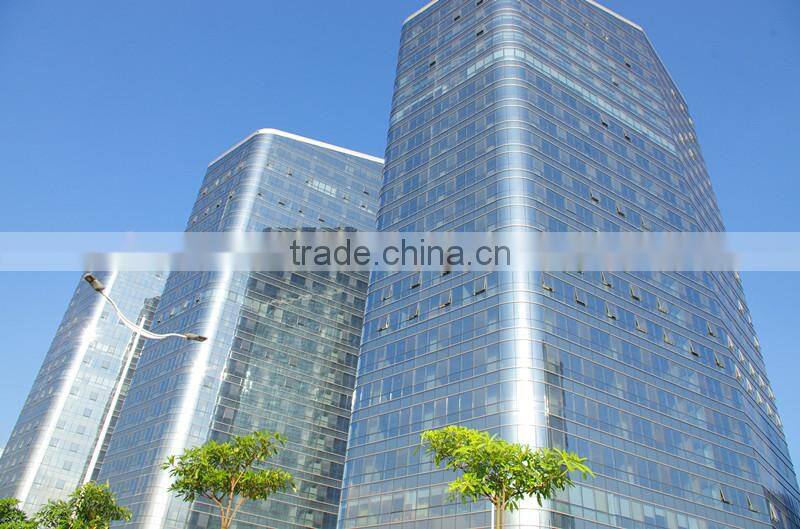

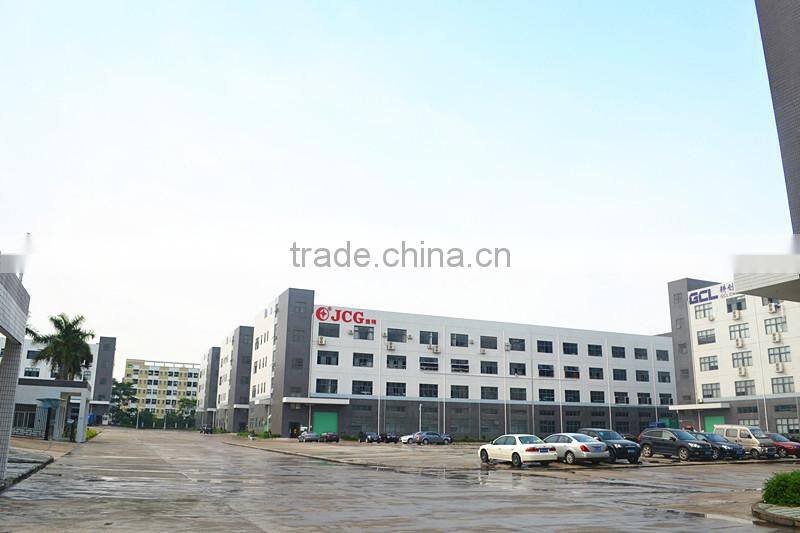

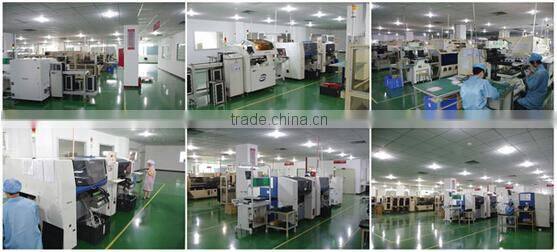

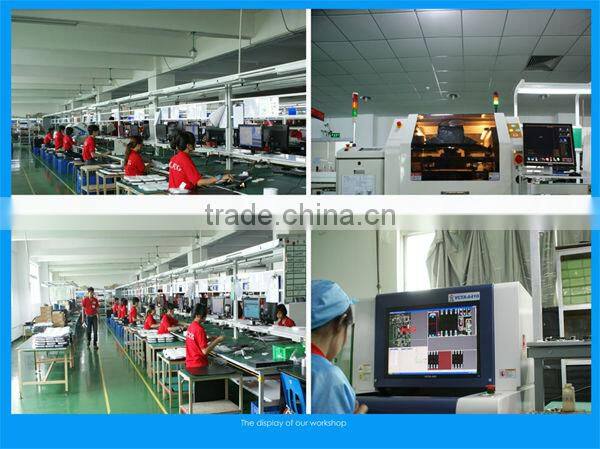

Our factory is located at Yasen Innovative Technology Park, Longgang District, Shenzhen, China. 16000 square meters standard workshops, equipped with high-speed SMT lines and other advanced production equipments. JCG is committed to developing, manufacturing, marketing of smart wireless router and other related networking products.

Our office Address: 23F, C1 Building, Nanshan Zhiyuan, LiuXian Road, XiLi, Nanshan District, Shenzhen City, China.

Global shows

We attand the German CEBIT, Taipei Computex, US CES annually.

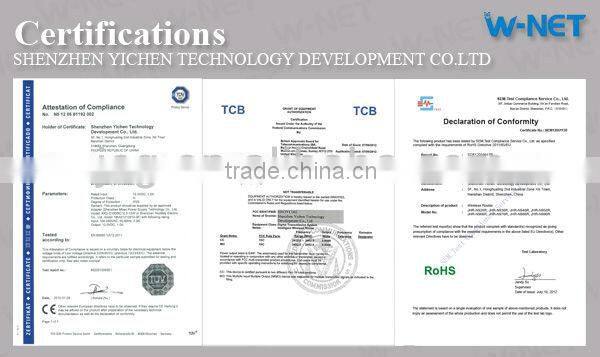

Certifications

All our products approved FCC,CE,RoHS.

Our Services

Quality and warranty

All our products are checked quality passed before delivery. Besides we provide TWO YEAR WARANTY for defective items if any.
