LED Wall Pack Full Cutoff 40W
- Shenzhen
- Credit Card
You May Like
-
Wall Mount 20 Watt Low Profile LED Wall Pack Light full cutoff
-
LED Wall Pack Fixture Voltage 120-277V Wattage 30W Type LED Wall Pack Fixture Color Temp (Kelvin) 5000K 3000 Lumens
-
Cutoff Cool LED Wall Pack White by Mester 120-277V 20W 30W 40W Architectural Type 3000K 4000K 5000K UL CUL DLC FCC certificated
-
Low profile slim 20W 30W 40W 120-277V full cutoff LED wall pack light die cast aluminum housing 4000K 5000K with photocell
-
DLC UL CUL approved full cutoff LED wall pack 45W 70W with 5 years warranty for North America
-
Mester new design UL CUL DLC listed 45W 70W 90W 135W 4000K 5000K full cutoff LED wall pack light fixtures Dark Sky Compliant
Product Details
| LED Light Source | Philips Lumileds COB | Input Voltage(V) | 120-277V AC | |
| Lamp Power(W) | 40 | Lamp Luminous Flux(lm) | 4000 | |
| Lamp Luminous Efficiency(lm/w) | 100 | Color Temperature(CCT) | Cool White | |
| Working Temperature(℃) | -25, 40 | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | Aluminum | IP Rating | IP65 | |
| Certification | BV, EMC, FCC, UL | Place of Origin | Guangdong, China | |
| Brand Name | Mester | Model Number | WPI40W27VXXKYY |
Product Description

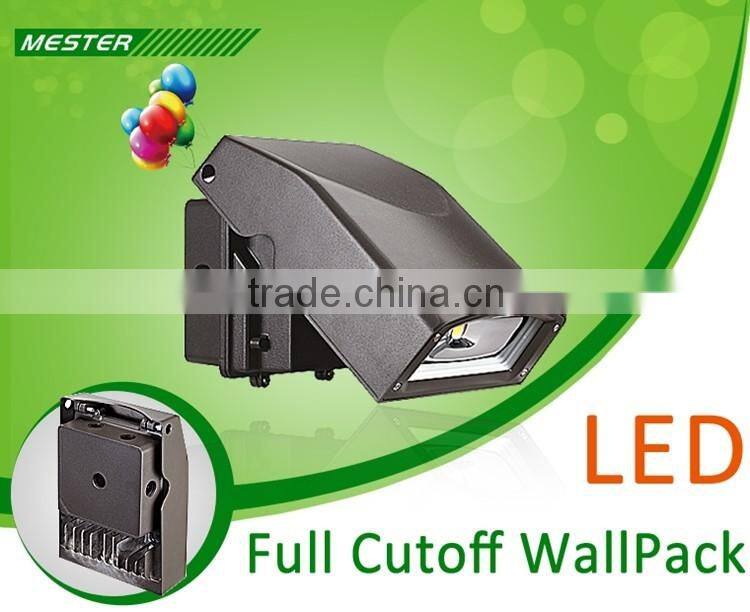

LED Wall Pack Full Cutoff 40W

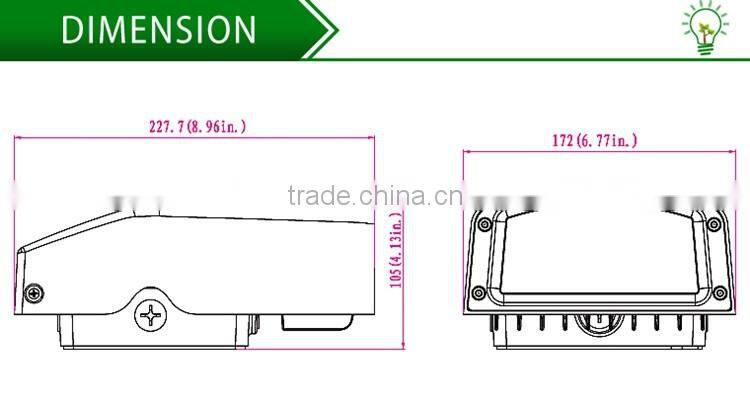

Dimensions
Features of LED Wall Pack Full Cutoff 40W
- Outstanding features: DesignLights Consortium Premium qualified, ANSI TYPE III lighting distribution, 0-20 degree adjustable head, LM-80 certified Lumileds COB inside, Tailored Constant-current Class II power supply
- Full cutoff designed meets dark sky requirement
- Instant on - no warm up time, energy efficient
- HIGH ENERGY EFFICIENCY: Save over 75% on you electric bill and reduce your maintenance costs to zero.
- Electrical: 120-277VAC universal voltage, 50/60Hz, 40 Watts (No photocell included, non-dimmable)
- Structure & Mounting: Die-casting low profile with dark bronze coat finish, designed for outlet box mounting and direct wall mounting
- Performance: High Efficacy 112 LM/W, 4500LM at daylight white 5000K, CRI72, PF0.9, long lifespan 50,000hrs, 5 years warranty

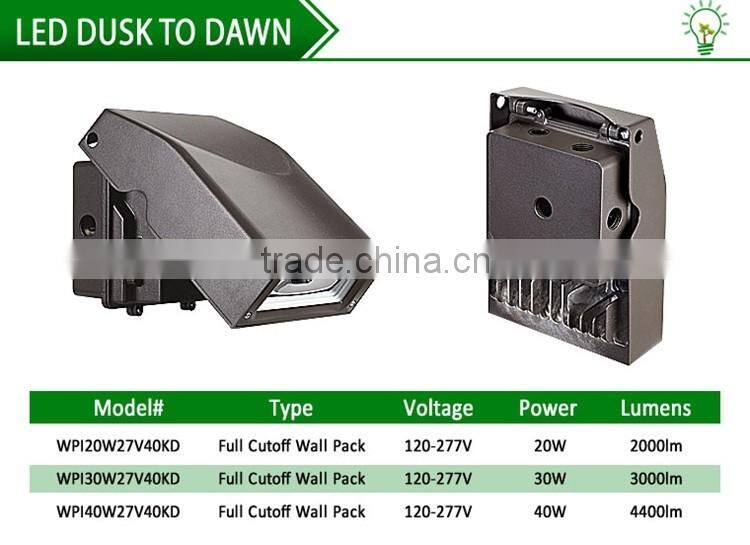

- Suitable for use with photo-cell applications - certified c/UL/us Listed
- Application: Ideal for Residential use, Warehouses, Gas Stations, Building surroundings, Parking Garages, Parking Lots and more. Our cut off wallpacks are IP64 and suitable for wet locations. Indoor and Outdoors.
Technical details of LED Wall Pack Full Cutoff 40W
- Light Source: LED
- Housing: Die-Cast Aluminum - Bronze
- Lens: Tempered glass
- Input Voltage: 120-277VAC, 50/60Hz
- Power: 20W/30W/40W
- Color Temperature: Neutral White 4000K / Cool white 5000K
- Light Output (lumen): 2000/3000/4000lm
- Led luminous efficiency: ≥100lm/W
- Light Direction: Downlight
- Lumen Maintenance Factor at the End of Life: 0.7
- CRI: >72
- Power Factor: >0.9
- Driver class: UL class 2
- Operating Temperature: -25~40°C
- Operating Humidity: 95% Rh or below, non-condensing
- Lifespan: 50,000 hours
- IP Rating: Waterproof IP65
- Dimensions (WxHxD): 9.0"x6.8"x4.2"
- Certificate: UL/cUL, DLC, FCC
- Warranty: 5 Years Limited Warranty
- Fixture Features: Easy to Install - Ideal for both indoor and outdoor fixtures. UL Listed, FCC, DLC certifications. Waterproof, Shatter resistant, Instant On Full Brightness. Runs cool with minimal heat output, 100 Lumens per Watt, Operating Temperature of -25 to 40℃, Commercial and Industrial Grade, Available in different wattages.
Energy Saving Replacement
| MESTER LED MINI FULL CUT OFF WALL PACK | Equivalent |
| WPI20W27VXXKYY | 50W HID |
| WPI30W27VXXKYY | 50W HID |
| WPI40W27VXXKYY | 100W HID |

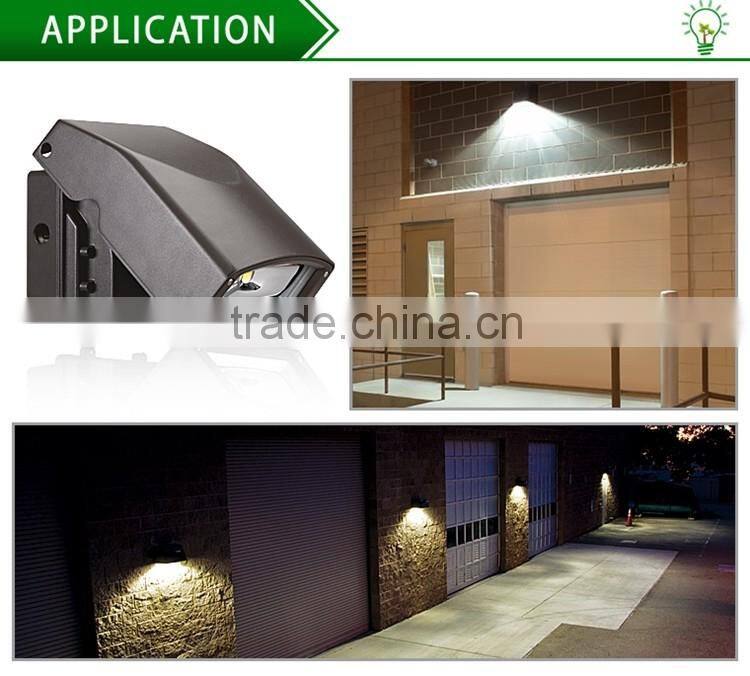

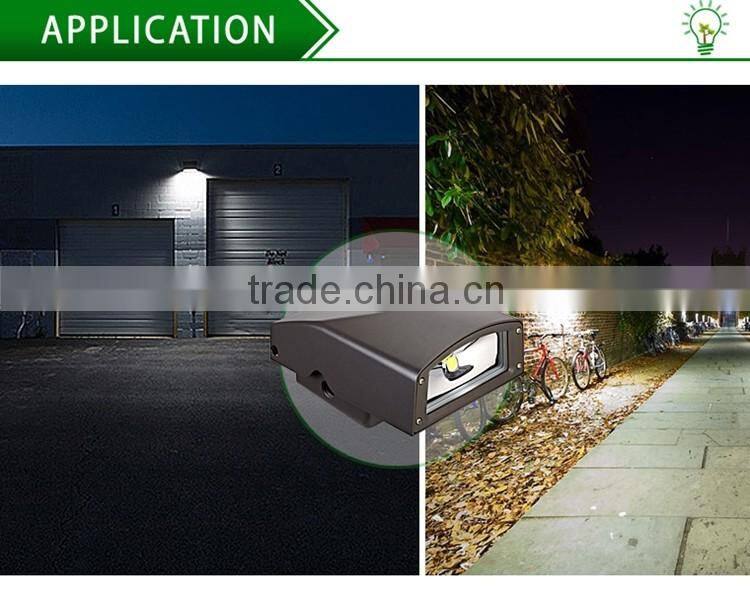

Applications of LED Wall Pack Full Cutoff 40W
- Security, pathway and perimeter lighting, building entryways and walkways, factory, gateway, bridge, parking structures, garages, gas station, tunnel, storage areas, warehouse, apartment, garden, toll gate, gym, stadium square, billboard, parking lot, building, subway station and so on.
Warnings and cautions
— To prevent personal injury or product damage only licensed electricians should install this LED Full Cutoff Wall Pack.
— To avoid electric shock or component damage disconnect power before attempting installation or servicing.
— This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state and local electric codes and safety standards.
— Disconnect product and allow cooling prior to servicing.
— Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death, property damage and/or product malfunction.
— To prevent product malfunction and/or electrical shock this product must be properly grounded.
— This LED Full Cutoff Wall Pack is designed to operate in ambient temperatures ranging from -30°c to 40°c and to be horizontally mounted with the LEDs facing down.
— Wall mount only.
Warranty Description of LED Wall Pack Light:
LIMITED WARRANTY: This product is warrantied for a period of 5 YEARS from date of original purchase against defects in materials and workmanship. If the product should fail to operate due to defects in material or workmanship the product will be repaired or replaced, at Mester's option. This warranty is expressly limited to repair or replacement of the product. This warranty gives the consumer specific legal rights. WARRANTY IS VOID IF PRODUCT IS NOT USED FOR THE PURPOSE FOR WHICH THIS PRODUCT IS MANUFACTURED.
Packing and shipping of LED Wall Pack Full Cutoff 40W
More information about LED wall pack light
Complimentary 'Dark Sky Shield' provided with all Mester LED Wall Packs
Modern society requires outdoor lighting for a variety of needs, including safety and commerce. The International Dark-Sky Association (IDA) recognizes this but advocates that any required lighting be used wisely. To minimize the harmful effects of light pollution, lighting should
- Only light the area that needs it
- Minimize blue light emissions
- Be fully shielded (pointing downward)
Mester's Wall Pack Series is in full compliance with IDAs Dark Sky requirements. The Dark Sky Night saver accessory shield provides directional and cutoff illumination for relevant purposes. The Mester fully shielded Wall Pack fixtures minimize skyglow, glare and light trespass. The Dark Sky shield comes with all Mester wall packs completely free of charge as a complimentary accessory provided by Mester to promote the reduction of lighting pollution.
Weatherproof
Mester LED Wall Pack series is vibration resistant, mercury-free and will not flicker. This wall pack is ideal for commercial, industrial as well as residential applications. Use it in parking garages, schools, outdoor walkways, commercial outdoor spaces, outdoor security lighting and many more! With an operating temperature of -22° to 144° no climate is too harsh.
DesignLights Consortium
The DesignLights Consortium promotes quality, performance and energy efficient commercial sector lighting solutions through collaboration among its federal, regional, state, utility, and energy efficiency program members, luminaire manufacturers, lighting designers, and other industry stakeholders throughout the US and Canada. DLC Certified products are eligible for local and federal rebates and incentives.
Mester's LED Wall Pack Series is fully qualified by DLC and is eligible for rebates and incentives by participating utility members.
As a member of the the DLC QPL, the Mester brand warrants high-quality, high-performance, tested and verified LED products - that will also be eligible for rebate participating programs.
Safety First
Rapidly evolving thinking about energy efficiency and public safety – along with exciting technological advances – is driving the evolution of the lighting industry, providing greater opportunities and growing challenges. Mester leverages UL’s safety science expertise, worldwide presence, and active involvement in the lighting industry to gain accelerated access to the global marketplace and to meet regulatory requirements. The Mester LED Wall Pack Series is UL Listed along with several LED fixtures and retrofits.
MESTER LED LTD
is a high-tech company specializing in R&D, manufacturing, and marketing of commercial and industrial LED lighting products.
Mester LED LTD is constantly releasing all cutting-edge science and technology-oriented and innovative products such as LED Spotlight, High Bay, Canopy Light , Wall Pack Light, Flood Light, Shoebox Light, Area Light, Residential and Commercial Downlight.
The Company focuses on the philosophy of "Quality First, Customer Supreme" and always supply the customer with the finest products and services.
UL, DLC and Energy star are product standard in our factory.
- All the led products from Mester, e.g. standard/full cutoff LED wall pack light, canopy, flood light, troffer, linear high bay, DTD street light, downlight, spotlight, are with UL & CUL certificate, most with DLC or Energy Star.
- Only focus on LED commercial and industrial lighting for North America market.
- OEM services are always available when needed.
- The price list will be updated every 3 months. And we can give more support on your business.
- There are 28 engineers for R&D, we will launch new products each quarter .
- Quick action for technical support and maintenance.
- QTY discount available.
- Free samples to regular customers.
1.What`s the warranty of LED Wall Pack Full Cutoff 40W
- For DLC/ES rated item we provide 5 years. If needed I will send warranty rule to you.
2.What`s the payment for the samples and big account
- Normally paypal for small account and wire transfer for big account.
3. What's the MOQ
- Different from items
- 1pcs for stock items
- 100pcs for custom brand (10-15 days)
4. What about the quality of LED Wall Pack Full Cutoff 40W
- Select quality material
- Good products originated from good mood
- Control every process with heart
- 48H aging test to end defective products
- New products after many testing and practices
- Meet international shipping standards to insure safety
LED Wall Pack Full Cutoff 40W
