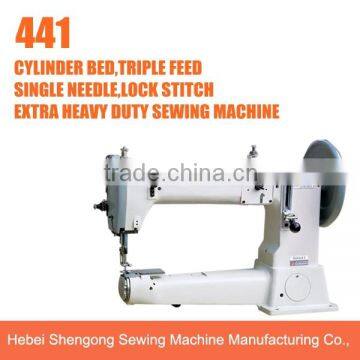

GA441 sewing machine
- 1000 Set / Sets per Month
- China main seaport or air port
- Credit Card
You May Like
Product Details
| Condition | New | Type | Industrial Sewing Machine | |
| Place of Origin | Hebei, China | Brand Name | ShenPeng | |
| Model Number | GA441 | Stitch Formation | Lock Stitch | |
| Mechanical Configuration | Cylinder-Bed | Max. Sewing Speed | 1000r.p.m | |
| Max. Sewing Thickness | 20mm | Stitch Length | 0-11mm | |
| Power | 550W | Overall Dimensions | 1000*500*1200mm | |
| Feed Mechanism | Manual | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
GA441 sewing machine
Application
441 is the ideal machine for canvas, leather upholstery and technical textiles and other extra heavy weight materials. such as auto products(air bag, seat cushion, life belt, etc.), base ball gloves, saddlery,bags, shoes, etc.
Features
1. The needle feed mechanism in cooperation with the walking foot mechanism achieves powerful feeding force. As a result, a high quality seam without material slippages is assures.
2. The lifting amount of the presser foot reaches 20mm assuring smooth placement/removal of extra heavy-weight materials.
3. The wide free space under the machine arm allows the operator to easily place and remove a large sewing products.
4. The built in bobbin winder makes easy operation during sewing.
5. Large shuttle hook and large bobbin reduces frequent bobbin changing and makes the machine idealy suitable for sewing extra heavy-weight materials.
6.Pneumatic presser foot lifter and back tack could be added;
7.Could replace juki sewing machine TSC-441.
SHENPENG 441 is totally the same as industrial sewing machine Juki model TSC-441, spare parts could be 100% changed.
Specification
Model | GA441 | |
Stitch length | 0-11mm | |
Max. sewing speed | 1,000r.p.m | |
Stitch type | Lockstitch | |
Feed mechanism | Walking foot and needle feed | |
Thread take-up lever stroke | 96mm | |
Needle bar stroke | 56mm | |
Presser foot lift | By hand | 13mm |
By knee | 20mm | |
Needle size | DYX3 160#-230# | |
Shuttle hook | KSP-204N | |
Number of needle | 1 | |
Lubrication | 2 | |
Power supply | Manual | |
Cylinder dia. | 81mm | |
Motor | 550w/750w, 4p | |
GA441 sewing machine head ,stand table and motor
GA441 sewing machine head
GA441 sewing machine needle
GA441 sewing sample
GA441 Cylinder arm
1.Professional technical consulting;
2.Machine operating analysis;
3.Stitch sample making;
4. Provide sewing machine working video ;
5.Maintenance and spare parts services.
1. Q: Do you have your own export right ?
A: Yes, we are able to export the sewing machine to any country or region
2. Is machine sample available?
A:No. We can supply spare parts sample, but customer needs to pay for it and bear shipping cost, we will return the parts value once order confirmed.
3. Q: What service you can supply?
A: Model recommendation, sample making, technical consulting, after-service support
4. Q: Could i visit your factory ?
A: Yes, at the same time you can enjoy more favorable price if buy sewing machine
5. Q: Is your machine could replace Union Special or Newlong sewing machine function?
A: Yes. Our machine could 100% replace Union Special or Newlong sewing machine function.
6. Q: Do you supply spare parts?
A: Yes, Our company produce sewing machine and spare parts by our selves and with fast lead time,best price.
7. Q: What gurantee you supply?
A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate, feed dog, etc.
