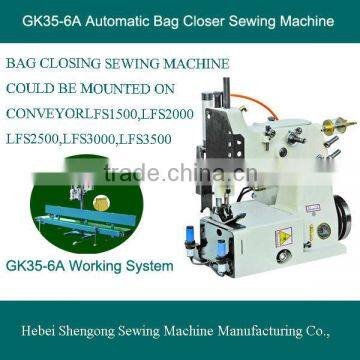

GK35-6A High Performance Bag Closing Sewing Machine/PP Woven Bag Closer Sewing Machine/made-in-china sewing machine

GK35-6A High Performance Bag Closing Sewing Machine/PP Woven Bag Closer Sewing Machine/FIBC Bag Closer  Machine

APPLICATIONS

GK35-6A High Performance Bag Closing Sewing Machine/PP Woven Bag Closer Sewing Machine/FIBC Bag Closer  Machine could closing of all sorts of fill bags, e.g. burlap, jute, woven poly, cotton, plastic and paper with single thread chain stitch 401 with or without crepe tape.

GK35-6A High Performance Bag Closing Sewing Machine/PP Woven Bag Closer Sewing Machine/FIBC Bag Closer  Machine could be mounted on the pedestal to be a automatic bag closing system.

It will remove the photoelectric controls from machine to pedestal, greatly increased stability and reliability of the bag closing system.

GK35-6A could replace Newlong DS-6AC and Union Special 80800UL.

FEATURES

1. Single needle double thread chain stitch 401.
2. High sewing speed up to 1,800 spm.
3. Sewing capacity up to 11mm (7/16 in.), 32 plies of paper.
4. Adjustable stitch length from 6.6-11mm.
5. Built-in pneumatic guillotine type crepe tape cutter.
6. Photoelectric automatic start / stop and crepe tape cutting.
7. Built-in sight feed oiler.
8. Main parts are made of copper alloy and high duty alloy.
9. Rolling bearing adopted in crankshaft.
10. Easy maintenance semi closed structure.
11. Basic automatic bag closer sewing machine for crepe tape sewing.
12. Could be mounted on conveyor LFS1500,LFS2000,LFS2500,LFS3000 and also be mounted on sewing machine table.

SPECIFICATIONS

Our Other Bag Closing Sewing Machine:

GK35-2C Mechanically driven thread chain cutter, single needle 2-threads chain stitch semi-automatic bag closing sewing machine.

GK35-6C Pneumatic thread chain automatic cutter,high-performance single needle 2-hreads chain stitch high speed bag closer sewing machine. The cutter is different with GK35-6A

GK35-8A Pneumatic thread chain automatic cutter,high-performance double needle 4-hreads chain stitch high speed bag closer sewing machine.

DS-9C Pneumatic thread chain automatic cutter,high-performance single needle 2-hreads chain stitch high speed bag closer sewing machine.It is suitable for work environment where dust is much.

GK35-2C , GK35-6A, GK35-6C,GK35-8A andDS-9C could be mounted on conveyor LFS1500,LFS2000,LFS2500,LFS3000 and also be mounted on sewing machine table.
