A2-PW+CP4900+GK35-6A High Speed Automatic Bag Closer Sewing Machine
- 500 Set / Sets per Month
- China Main Sea Port
- Credit Card
You May Like
-
SHENPENG DN-2W Bag sewing machine head
-
SHENPENG DN-2HS Bag Sewing Machine Head
-
SHENPENG DN-2HS Single Needle Chain Stitch Plastic Bag Sewing Machine
-
SHENPEND DN-2HS Single Needle Mechanical Sewing Machine(same as Newlong DN-2HS)
-
DN-2W double needle four thread PP woven bag sewing machine
-
A2-PW+CP4900+GK35-6A High Speed Automatic Bag Closer System
Product Details
Condition | New | Application | Chemical, Medical, Other, Chemical, Medical, Agriculture,Industry | |
Packaging Type | Bags | Packaging Material | Paper, Plastic | |
Automatic Grade | Automatic | Driven Type | Electric | |
Voltage | 220V/380V | Power | 370W/550W | |
Place of Origin | Hebei, China | Brand Name | SHENPENG | |
Model Number | GK35-6A | Weight | 30kg / 35kg | |
Dimension(L*W*H) | 350*240*440mm | Certification | ISO9001 | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
A2-PW+CP4900+GK35-6A High Speed Automatic Bag Closer Sewing Machine
APPLICATIONS
A2-PW+CP4900+GK35-6A High Speed Automatic Bag Closer Sewing Machine could closing of all sorts of fill bags, e.g. burlap, jute, woven poly, cotton, plastic and paper with single thread chain stitch 401 with or without crepe tape. It could mounted on the pedestal to be a automatic bag closing system. It will remove the photoelectric controls from machine to pedestal, greatly increased stability and reliability of the bag closing system.
GK35-6A could replace Newlong DS-2 and Union Special 80800R.
FEATURES
1.Single needle double thread chain stitch 401.
2.Max. sewing speed up to 2,000 spm.
3.Sewing capacity up to 11mm (7/16 in.), 32 plies of paper.
4.Adjustable stitch length from 6.5-11mm.
5.Built-in pneumatic guillotine type crepe tape cutter.
6.Built-in sight feed oiler.
7.Main parts are made of copper alloy and high duty alloy.
8.Rolling bearing adopted in crankshaft.
9.Easy maintenance semi closed structure.
10.Photoelectric automatic start / stop
11.Basic automatic bag closer sewing machine for crepe tape sewing.
12.Could be mounted on conveyor LFS1500,LFS2000,LFS2500,LFS3000 and also be mounted on sewing machine table.
SPECIFICATIONS
Model | GK35-6A |
Max. Sewing Speed | 2,000 spm |
Max. Sewing Capacity | 11mm (7/16 in.), 32 plies of paper |
Stitch Length | 6.5~11mm |
Stitch Type | Single needle double thread chain stitch 401 |
Presser Foot Lift | 16mm (5/8 in.) |
Feed Type | Drop feed |
Control | Automatic |
Air Supply | 0.4MP 3.5NL/min |
Crepe Tape Width | 55mm |
Lubrication | Sight feed oiler and manual |
Needle | 80800x 200~250# |
Weight | 30kg/35kg |
Machine Dimension | 350*240*440mm |
Packing Dimension | 500*500*325mm |
GK35-6A Bag Closing Sewing Machine

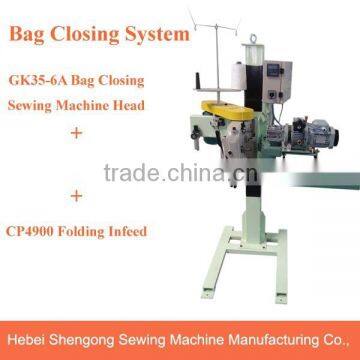

GK35-6A + A2-PW Pedestal + CP4900 Folding Infeed
GK35-6A Large Cutter And Presser Foot
GK35-6A Photoelectric Control Box
GK35-6A Internal Structure
Photoelectric automatic start / stop Switch
GK35-6A+A2-PW+CP4900 And Sewing Sample
The service we can provide:
1.Professional technical consulting;
2.Machine operating analysis;
3.Stitch sample making;
4. Provide sewing machine working video ;
5.Maintenance and spare parts services.
FAQ:
1. Q: Do you have your own export right ?
A: Yes, we are able to export the sewing machine to any country or region
2. Q: What service you can supply?
A: Model recommendation, sample making, technical consulting, after-service support
3. Q: Could i visit your factory ?
A: Yes, at the same time you can enjoy more favorable price if buy sewing machine
4. Q: Is your machine could replace Union Special or Newlong sewing machine function?
A: Yes. Our machine could 100% replace Union Special or Newlong sewing machine function.
5. Q: Do you supply spare parts?
A: Yes, Our company produce sewing machine and spare parts by our selves and with fast lead time,best price.
6. Q: What gurantee you supply?
A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate, feed dog, etc.
