Best Price Touch Screen Interactive Electronic Whiteboard XC-FP3

Description

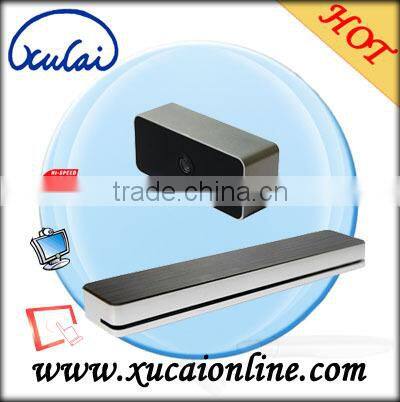

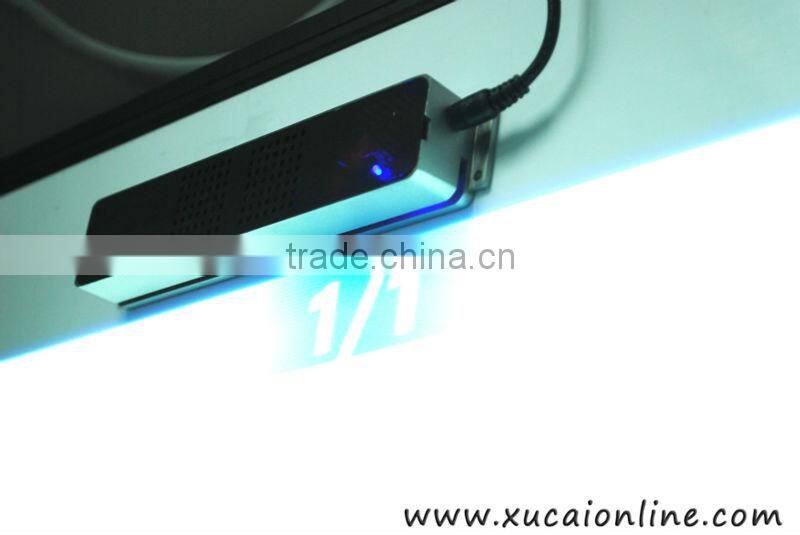

XC-FP3 Board with two parts: emitter and sensor. Emitter can be attached on flat surface. It emits infrared laser curtain on the surface which is about 1mm thick invisible light and parallel with the projection screen surface, 1-2mm above the screen surface. When the fingers or any non-transparent objects touch this virtual surface, the light will be reflected and detected by the sensor. Computer will figure out the position of the mouse by accurate calculating the reflected light position.

Specification

Calibration

Automatic(5s) / Manual (25/36 points)/Semi Automatic (4 points)

Gesture Recognition

Single finger is for "Write", Two fingers for "move","zoom in or out" and "scroll bar", Palm for "Erase",Palm stay 2s for Spot, Palm two clicks for back to desktop.

Multi-touch

Ten points touch, write and eraser can do together.

Latency

<30ms

Filter

Software auto-control, enhance stability.

Minimum Active Size

40 inch

Technology

Laser Image Calibration Technology

Positional Accuracy

±1 Pixel (Resolution: 4096*4096)

Aspect Ratio

4:3;16:9;16:10

Projector ratio

Ultra short throw : 0.19, XC-FP3ENGLD4, installation distance:0.30~0.40M; Short throw:0.34, XC-FP3ENGLA4, installation distance:0.54~1.1M;  Long throw:3.0 , XC-FP3ENGLE4, installation distance:2.15~3.2M.

Laser Beam

Short throw/ Long throw: 3units; Ultra short throw: 4units.

Laser safety

CLASS I (safety laser)

Wave of the laser

808nm

Power

5w

Power of Laser Beam

150mW/unit *3

Power requirements

5V/1.5A

Signal refresh rate

120fps.

Connect

The sensor and computer are connected by USB Cable; Emitter and

Sensor are wireless; Emitter just need power.

Weight

2kg

OS Requirement

Windows XP, Vista, Windows 7, Windows 8

Software

Calibration software(driver) and GLboard(education software)

Certification

CE, FCC

Warranty

2-year

Package

1. Sensor 2.Emitter 3.Mounts 4.USB cable (12m) 5.Pionter      6.Power Adaptor 7. Manual
