Home > Products > UHMWPE SHEET > Jumping Pad/heating Pad/heating Pad
Jumping Pad/heating Pad/heating Pad
- Tianjin
- T/T L/C Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | YUSU | |
| Model Number | HQ-UI(C006) | Material | PE | |
| Thickness | 5mm~120mm | Size | Max. 4000mm*1500mm |
Product Description
UHMW-PE sheet are made of good quality raw meterial Ticona, all the processing steps are controlled by our QC department.
High Density Polyethylene (HDPE) is more rigid and harder than lower density PE’s. Its tensile strength is four times that of LDPE and its compressive strength is three times better. Compared to UHMWPE it has approximately 1/3 the wear resistance and 1/2 the impact resistance.
Advantages Virgin Grade PE Material white color UHMW polyethylene PE pads/sheets/panels
1. Excellent wear resistance
2. Self-lubricating
3. Excellent abrasion Resistance
4. Blunt impact resistance
5. Corrosion and chemical resistance
6. Low-temperature resistance
7. Excellent machanical properties
8. Hygienic and non-poisonous.
9. Excellent machanical properties
Size of PE Material white color UHMW polyethylene PE pads/sheets/panels
1000*1000mm 1500*1500mm 2000*1000mm 1220*2440mm
(Other customer size is available with requirements)
Features of PE Material white color UHMW polyethylene PE pads/sheets/panels
• Acid, odor, moisture, and mildew resistant
• Extremely easy to machine
• Excellent resistance to acids, alcohols and bases
• Excellent long term durability
• Great weather resistance
• Abrasion Resistant
• Thermoformable
• Good flexibility and toughness
• Cost effective versus other marine solutions
• Low-Maintenance
• UV Stabilized, all-weather resistant
• FDA approved in certain grades
• Machines well with common woodworking tools
Properties HDPE/UHMWPE self-lubricating synthetic ice rink :
| Property | Unit | Value |
| Density | g/cm3 | 0.93-0.97 |
| Average molecular weight | g/mol | 3million- 10 million |
| Tensile strength (23°C in air) | MPa | 22 |
| Breaking strength | MPa | 42 |
| Tensile strain at break | % | 600 |
| Charpy impact strength (notched) | mJ/mm2 | No break |
| Ball indentation hardness | N/mm2 | 42 |
| Shore D hardness | -- | 65-70 |
| Abrasion | % | 70-80, steel = 100 |
| Static Friction Coefficient | -- | ≤0.16 |
| Kinetic Friction Coefficient | -- | ≤0.10 |
| Water Absorption | -- | NIL |
| Elongation at break at 23 degress | % | - ≥300 |
| Temperature resistance | °C | 269 to +85 |
| Melt Temperature | °C | 130-140 |

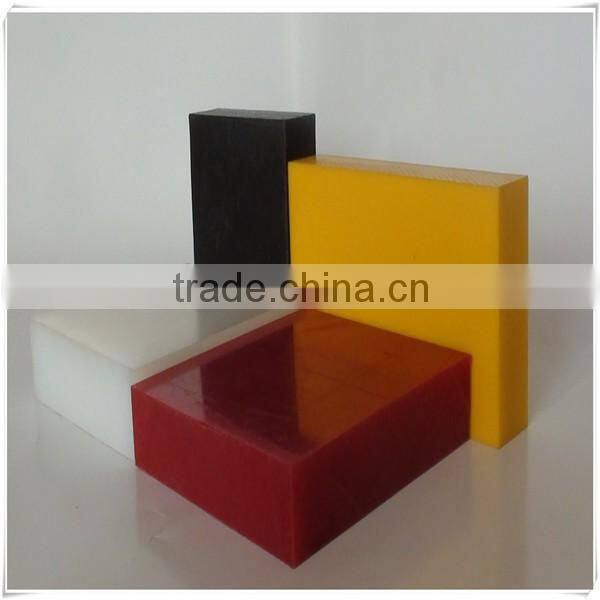

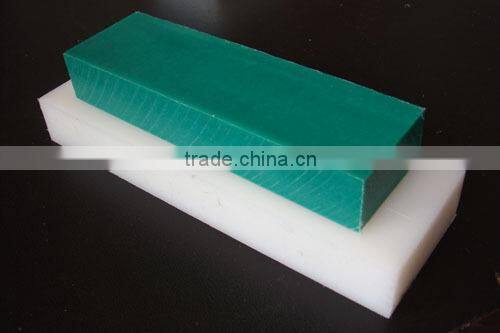

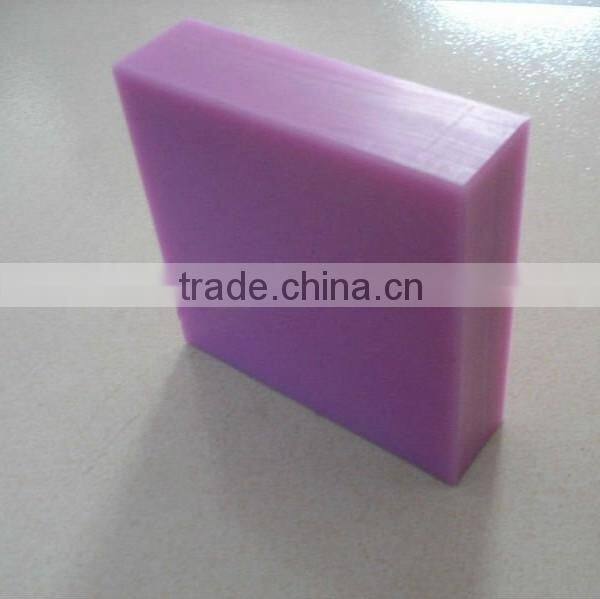

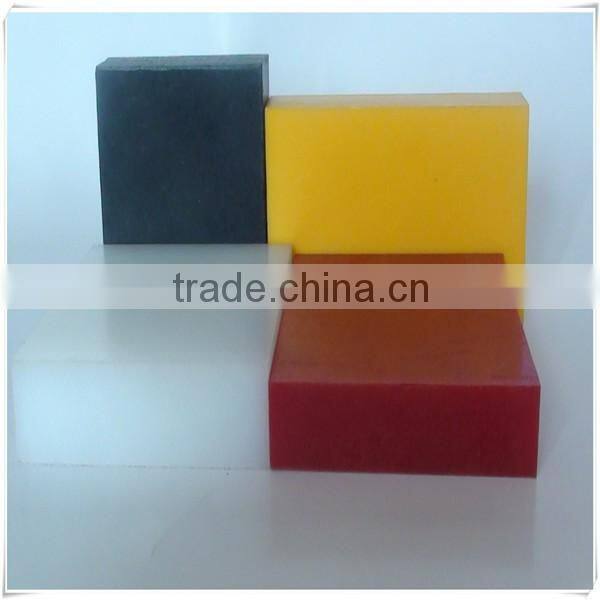

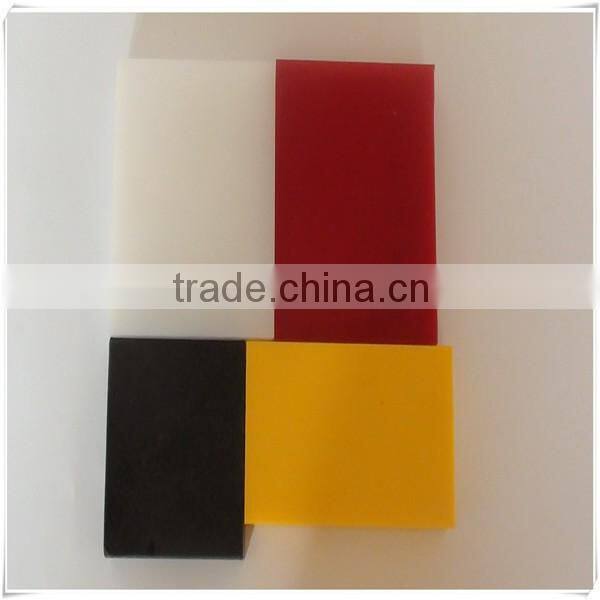

Product shows of PE Material white color UHMW polyethylene PE pads/sheets/panels
We focus on what our customers need and dedicate to produce satisfying products and innovate new products to our clients.
After-sales service - Product Quality is Guaranteed
- We have Strict QC and make sure every step of processing is for specification compliance.
- We track our goods from transportation to your sales in local market to help your successful business.
- Manufactured in ISO 9001:2008 facility with over 20 years of manufacturing and fabricating experience
Q: Can you give me a discount price?
A: It is depending on the volume. The larger the volume is, the more discount you can enjoy.
Q: How can I get a sample?
A: Normally small samples (sizes not larger than 150*150mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL,FEDEX,TNT,UPS courier account number to us. For bigger sizes, it depends.
Q: How can you guarantee the quality of mass production is same with the sample sent to me before?
A: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.
Q: How can you deal with quality issues when customers feedback after receiving the goods?
A: We will follow below steps to solve the quality issues the may occur.
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
3) Finally, we will negotiate with our customers to make some compensation.
Q: What is the lead time of production?
A: 3-15 working days starting from the receiving date of the deposit.
