Home > Products > Tractor&implements > 2014 Hot Sales Walking Tractor With Plough and Tiller and Grass Mower and Trailer

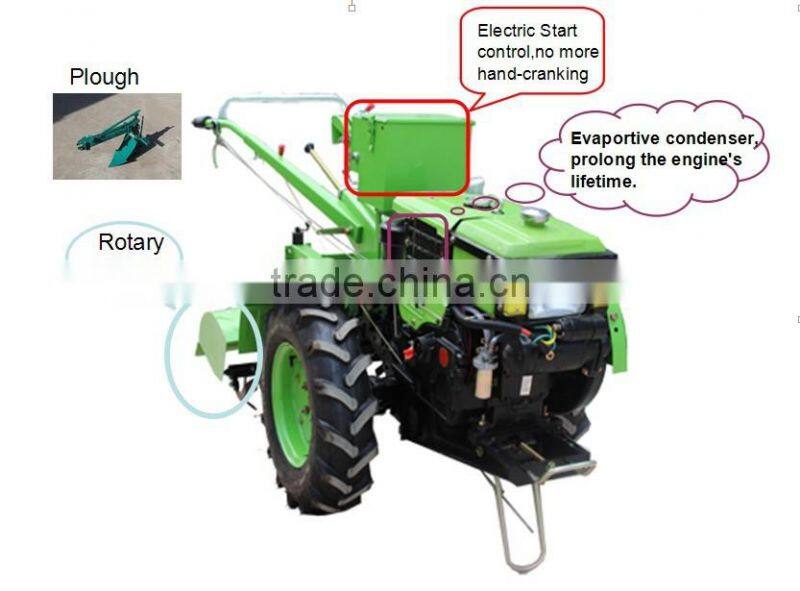

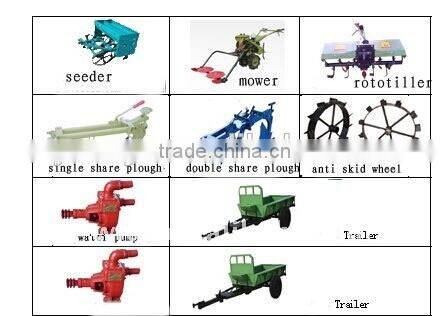

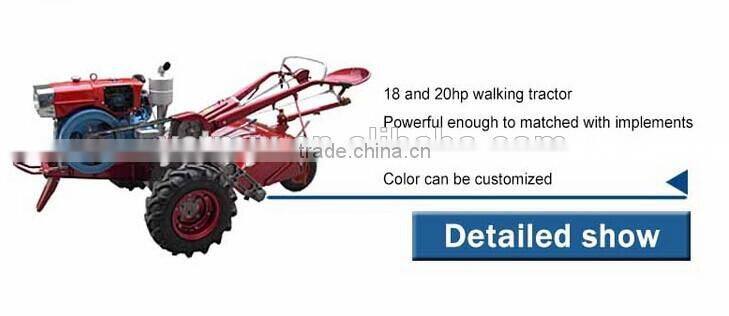

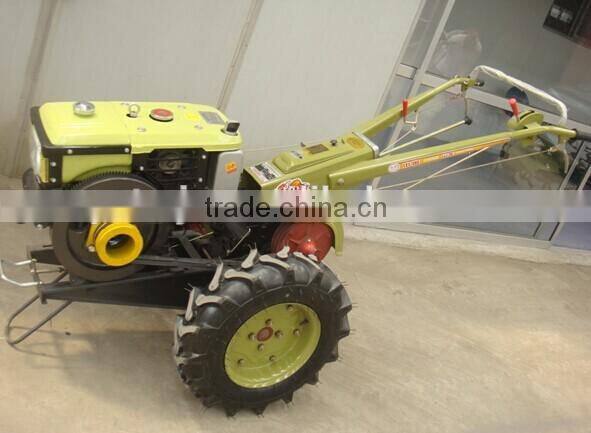

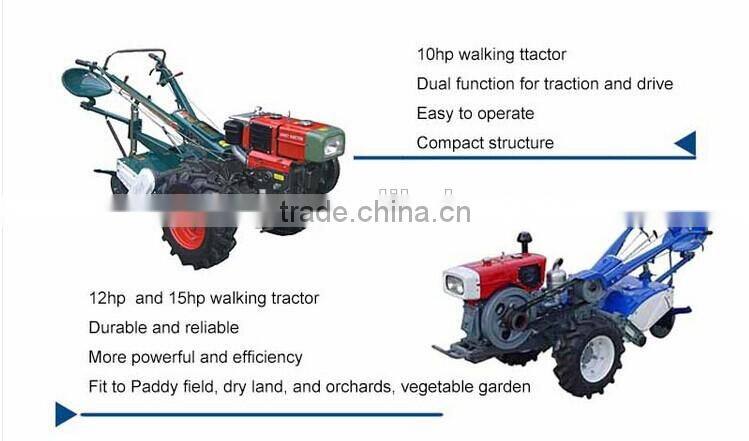

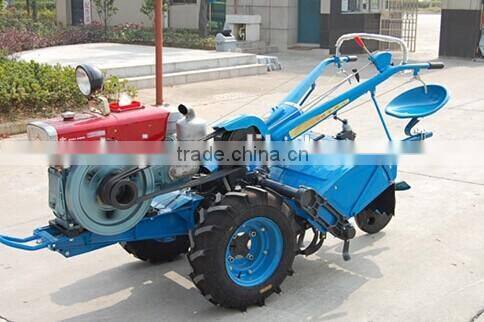

2014 Hot Sales Walking Tractor With Plough and Tiller and Grass Mower and Trailer

FOB Price

US$ 550.5 - 556.5 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Walking Tractor
By wheel	2WD	Usage	Lawn Tractor
Drive Type	Other	Power(W)	8 KW
Certificate	CE	Brand Name	TM
Model Number	SH-121	Place of Origin	Shandong, China
After-sales Service Provided	Engineers available to service machinery overseas

Model of Power Tiller		SH-101A	SH-121	SH-151
Structure weight KG	Without rotavator	258	353	363
	With rotavator	350	458	468
Working weight (with rotavator) KG		395	493	508
Overall dimensions (LxWxH) mm		2700x 960 x 1220	2680 x 960 x 1250
Number of blades PCS		16	18
Rototilling width mm		700	600
Type of tractor		Single axle, dual-purpose for both traction & drive
Travelling speed Km/h Forwrd		2.19, 3.62, 5.79, 7.37, 12.20, 19.48	1.4,2.5,4.1,5.3,9.4,15.3
Travelling speed Km/h Reverse		3.58, 12.03	1.1, 3.8

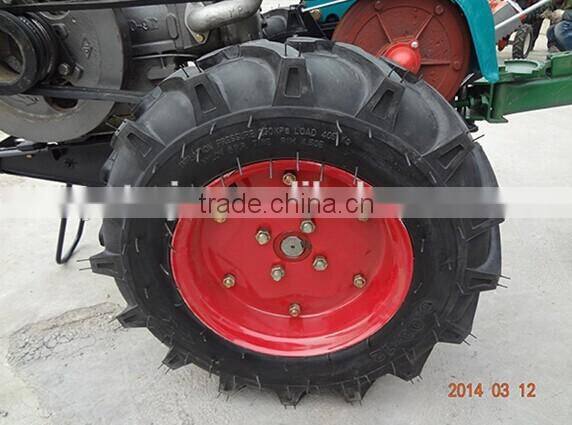

Type size		6.00-12
Wheel track mm		650~790(normally use 790)	800, 740, 640, 580(normally use 800)
Min. ground clearance mm		214	185
Min. turning radius m		0.9 with no rotavato
Model of engine		R190N	S195N	S1100N
Type of engine		Horizontal 4-stroke
Bore x stroke mm		90×90	95×115	100×115
Total displacement L		0.598	0.815	0.903
Compression ratio		18:1	20:1	19.5:1
Turing speed of crankshaft rpm		2400	2000
1-hour rated output KW/hphp		8/10.88	9.3/12.65	10.5/14.3
12-hour rated output KW/hp		7.35/10	8.3/11.29	9.8/13.33
Specific fuel consumption g/kw.h		≤281.4	≤258	≤250
Specific lube oil consumption g/kw.h		≤2.04	≤2.04	≤2.00
Cooling mode		Condenser (Radiator)

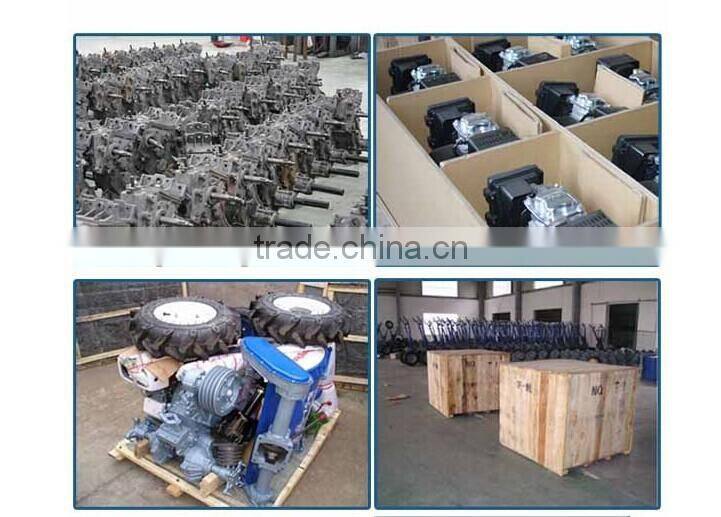

Packaging & Shipping
