Home > Products > Disc Harrow > 24 blade trailing harrow

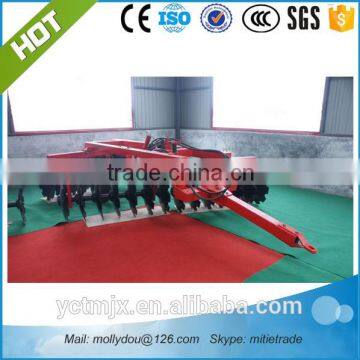

24 blade trailing harrow
- qingdao china
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Farm Cultivator | |
| Power Type | Other, tractor | Power(W) | 75kw | |
| Certification | ISO9001 | Warranty | 1 year | |
| Use | cultivator | Place of Origin | Shandong, China | |
| Brand Name | SDTM | Model Number | 1BZ-2.5 | |
| Weight | 1350kg | Dimension(L*W*H) | 532*201*134cm | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
28 blade trailing harrow
The Hydraulic heavy-duty disc harrow is designed for field work as crop residue processing before tillage breaking hardened and impervious soil surface, crushing and spreading straw, shattering soil after tillage, planning the land and preserving soil moisture it can be used on cultivated land for tillage harrowing instead of plough. This harrow has high harrowing capacity with reasonable utilization of power, great ability to penetrate and shatter the soil, level soil surface and loosen soil after harrowing, being well suitable for heavy clay soil wasteland and weedy field as well.
Name | The 20-blade harrow | The 24-blade harrow | The 28-blade harrow | The 32-blade harrow | The 36-blade harrow | The 48-blade harrow | The 24-blade harrow |
Type | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 | 1Bz-4.0 | 1BZ-5.3 | 1BZ(BX)-2.5 |
Weight(kg) | 1250 | 1350 | 1430 | 1550 | 1650 | 1780 | 1200 |
Working width (m) | 2.2 | 2.5 | 3.0 | 3.4 | 4.0 | 5.3 | 2.5 |
Working depth (cm) | 180-200 | ||||||
Ground clearance (cm) | more than 160 | ||||||
Maximum Working angle | 23 | ||||||
Matched power (hp) | 80 | 80 | 100 | 120 | 120 | 140 | 80 |
