Hydraulic Farm Heavy Duty Offset Disc Harrow for Sale
- Qingdao
- T/T L/C Credit Card
You May Like
Product Details
| Condition | New | Type | Farm Cultivator | |
| Power Type | Diesel | Power(W) | None | |
| Certification | ISO9001&CE, CE & ISO 9001 | Warranty | One year | |
| Use | Cultivator | Place of Origin | Shandong, China | |
| Brand Name | SDTM | Model Number | 1BZ-2.0 | |
| Weight | 1050Kg, 1010Kg | Dimension(L*W*H) | 3000*1400*1100 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

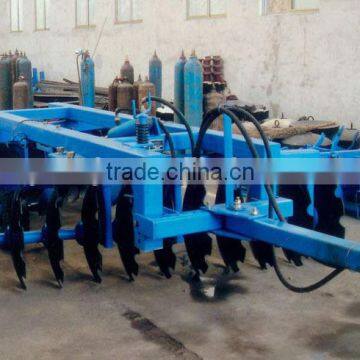

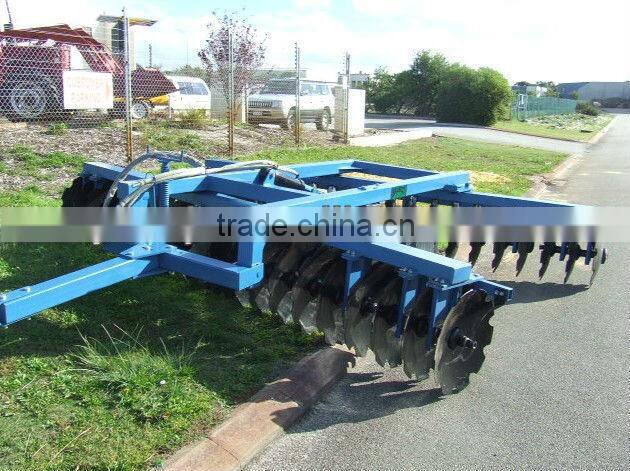

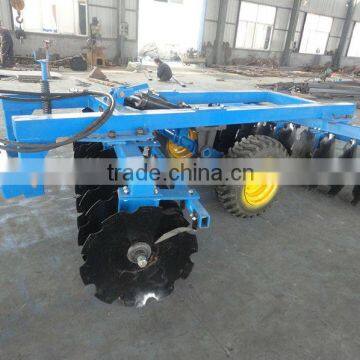

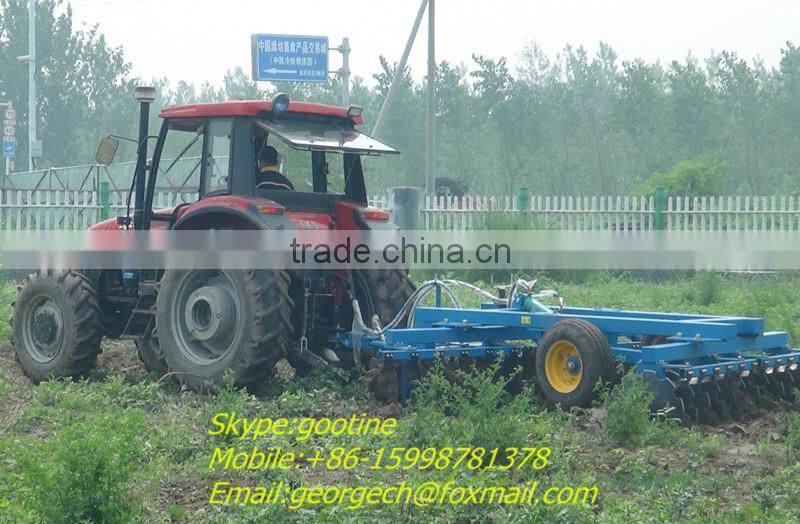

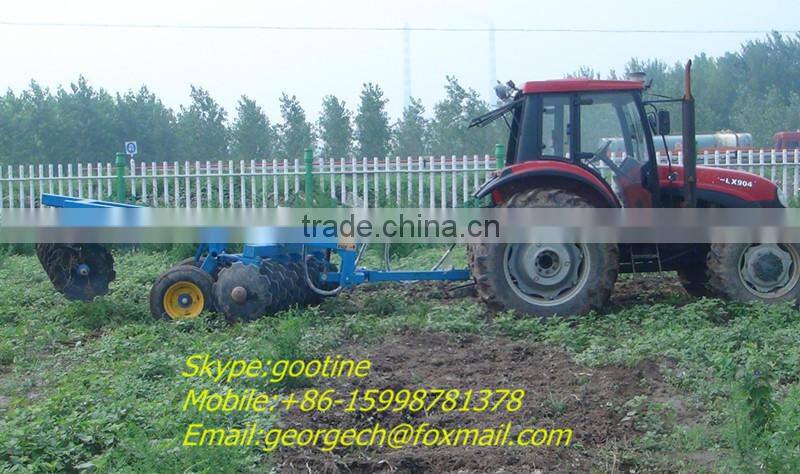

Hydraulic farm heavy duty offset disc harrow for sale

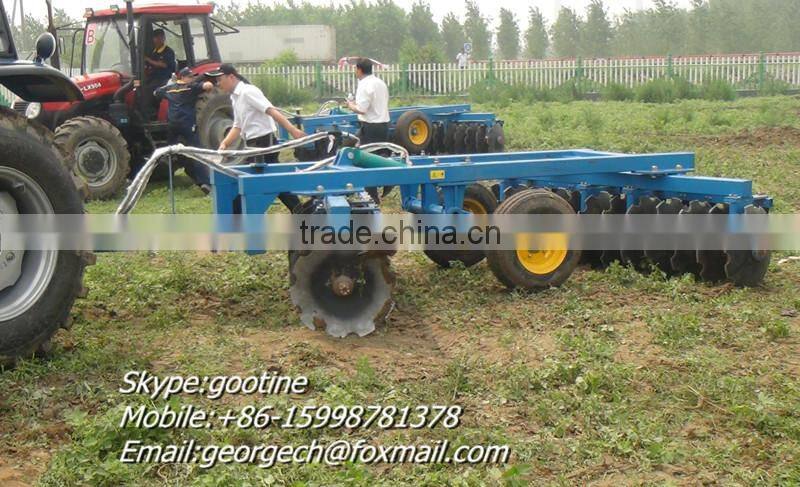

This heavy disc offset trailing heavy-duty harrow (Mode 1BZ-2.2/2.5/3.0/3.4) is designed for field work as crop residue processing before tillage breaking hardened and impervious soil surface, crushing and spreading straw, shattering soil after tillage, planning the land and preserving soil moisture it can be used on cultivated land for tillage harrowing instead of plough. This harrow has high harrowing capacity with reasonable utilization of power, great ability to penetrate and shatter the soil, level soil surface and loosen soil after harrowing, being well suitable for heavy clay soil wasteland and weedy field as well.

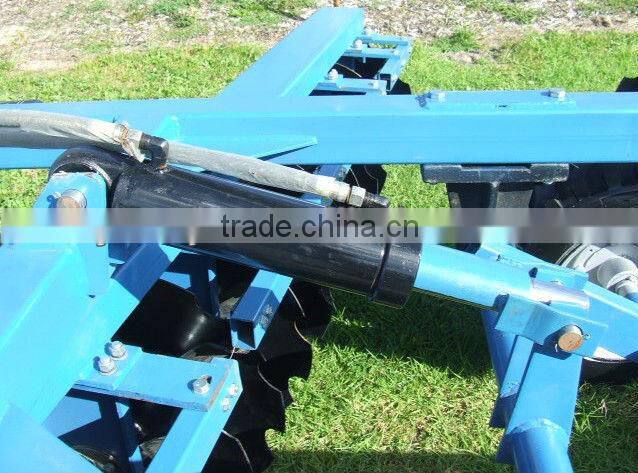

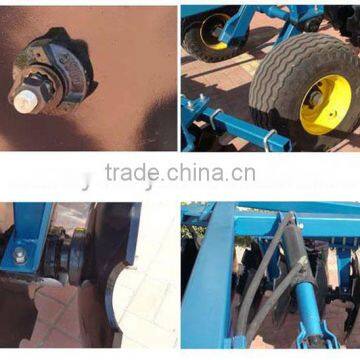

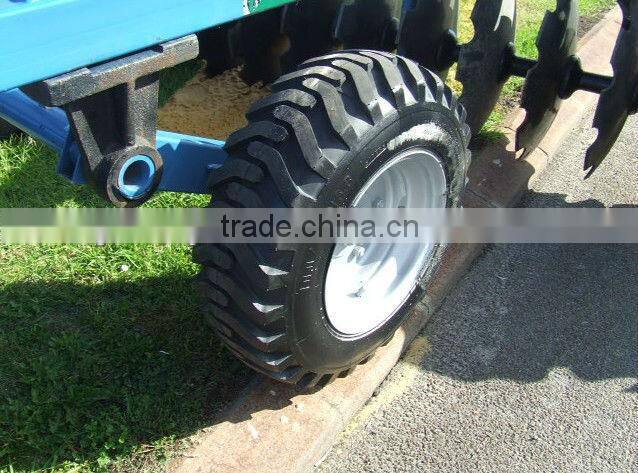

Having absorbed all advantages from exotic machines and designed according to the standard of ASME, this harrow has adopted combined structure whose rigid frame is welded with square tube, equipped with hydraulic up-and-down road wheels, spring leveling device and sealed bearing with spheroid outer surface and square inner hole special for disc harrow.
Therefore this machine easy to move with small turning radius, simple to be adjusted and maintained technologically advanced in configuration, heavy duty disc harrow is an innovated farm implement with long service life famous in China.
Main Specification of Middle-duty Disc Harrow:
Model | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 |
Overall dimension (L*W*H) | 520*257*134 | 532*201*134 | 541*330*134 | 550*354*134 |
Over weight(kg) | 1250 | 1350 | 1450 | 1550 |
Working width(m) | 2.2 | 2.5 | 3.0 | 3.4 |
Disc pitch(mm) | 230 | 230 | 2320 | 2320 |
Disc diameter | 660 | 660 | 660 | 660 |
Ma ximum working depth(mm) | 180-220 | |||
Maximum adjusting angle (degree)(front and rear disc) | 23 | |||
Ground clearance(mm) | >160 | |||
Fitted power (k w.) | 59.6 | 59.6-76.4 | 73.5 | 88.2 |
Qty of disc | 20 | 24 | 28 | 32 |
Harrowing capacity(ha/h) | 1.3 | 1.4 | 1.6 | 1.8 |

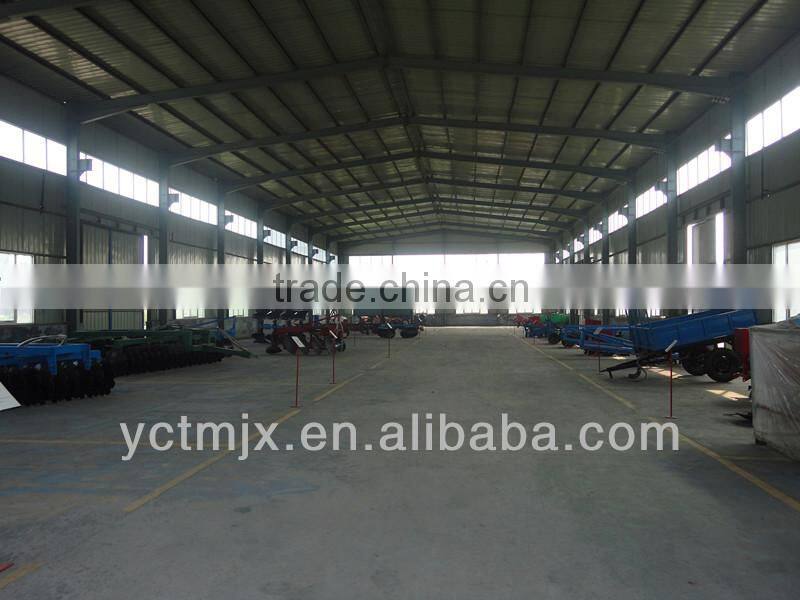

Company Exhibition
