Customized Heavy Harrow Parts Thickening Rome Plough Disc Blades
- QingDao
- T/T PayPal
You May Like
Product Details
| Type | Blades | Use | Other, Blades | |
| Place of Origin | Shandong, China | Brand Name | TM | |
| Model Number | 14"-32" |
Product Description

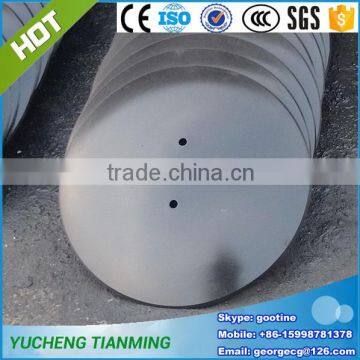

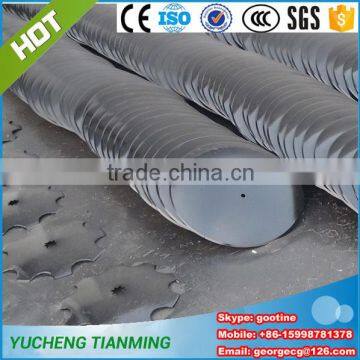

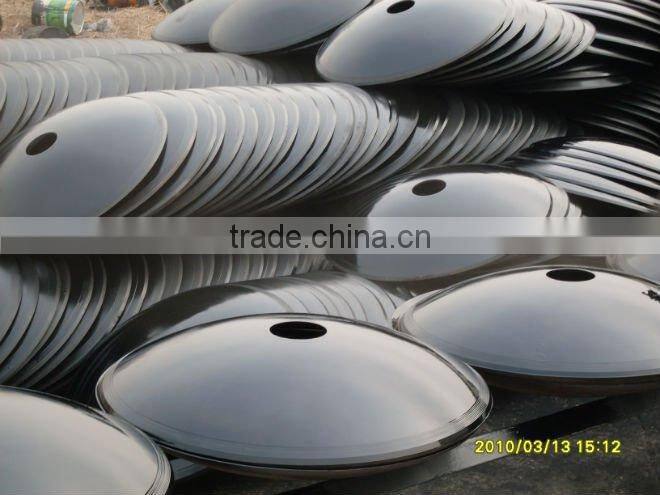

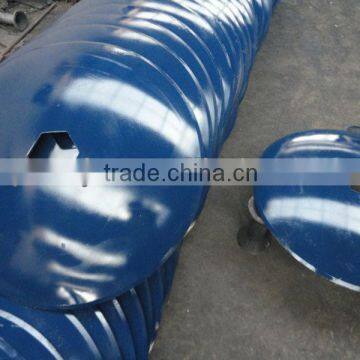

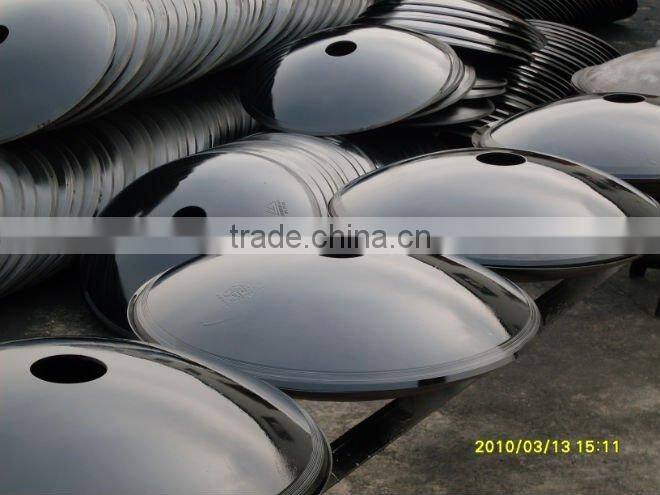

Customized heavy harrow parts thickening rome plough disc blades
Yucheng Tianming company is one of the professional manufacturers of discs for plough and harrow. It has a production line for discs producing, cleaning and painting. We can produce discs made of qualified spring steel 65Mn from 254 to 810mm in diameter and from 3 to 12mm in thickness. Annually output is 200,000 pcs. The products exported to UK, USA, France, Australia and South Africa, etc. more than 20 countries and district. We also can supply all various discs according to customers drawings and samples. We supply optional discs according different applications and Implements.
Features
1 Material : Spring steel 65Mn/ Boron steel
2 Diameter : 10-32 inch
3 Thickness : 3-12mm
4 Hardness: 38-48 HRC

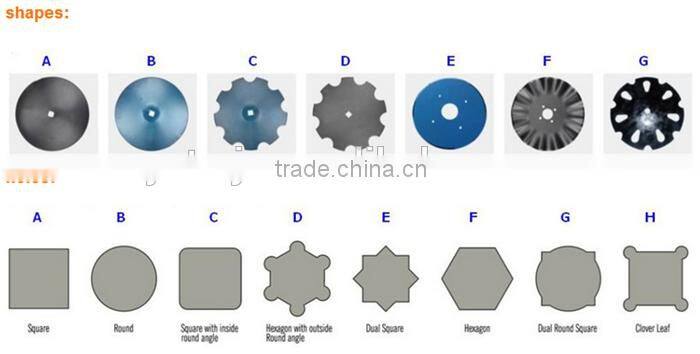

5 Edge Type : plain ; Notched
6 Height of bow : 4 inch 8 inch
7 Process : Forged with heat treatment

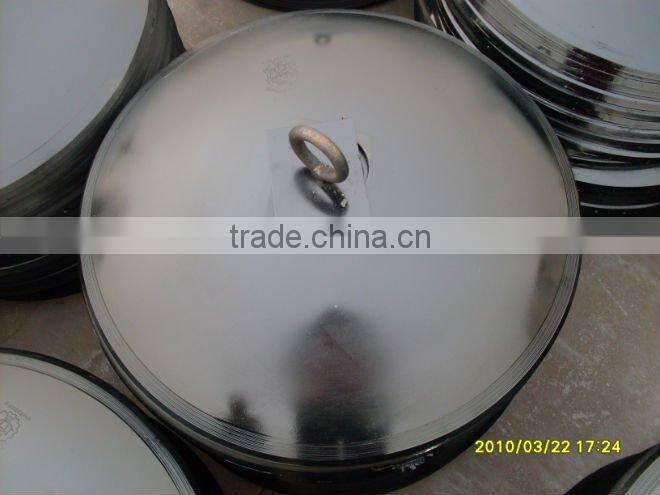

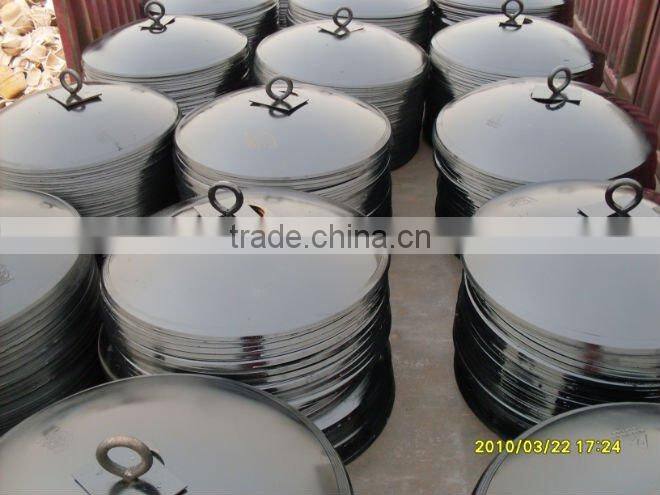

8 Package : Hook
Technical specifications
Common Specifications of Discs | |||
Diameter | Height of bow | Thickness | |
MM | INCH | MM | MM |
255 | 10 | 12 | 3 |
305 | 12 | 19 | 3 |
330 | 13 | 25 | 3 |
355 | 14 | 38 | 3 |
410 | 15 | 38~50 | 3 |
430 | 17 | 57 | 3 4 |
460 | 18 | 38~60 | 3 4 |
480 | 19 | 57 | 3 4 |
510 | 20 | 44~63 | 3 4 5 |
535 | 21 | 63 | 3 4 5 |
560 | 22 | 60~85 | 4 5 6 |
585 | 23 | 75~90 | 4 5 6 |
610 | 24 | 75~95 | 4 5 6 |
660 | 26 | 86~115 | 5 6 7 8 |
710 | 28 | 100~130 | 5 6 7 8 |
760 | 30 | 100~135 | 6 7 8 1 0 1 2 |
810 | 32 | 100~140 | 7 8 10 12 |
910 | 36 | 120~200 | 8 10 12 |
960 | 38 | 120~200 | 8 10 12 |

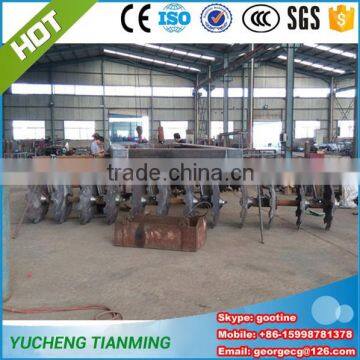

Yucheng Tianming Machinery Co., Ltd. is a professional company of designing and manufacturing agriculture parts, farm tools and machinery. There are 128 staff members and 166 sets of various production facilities.
The main products consist of disc blades,disc ploughs and harrows, share ploughs, rotary tillers, rotary stubble crushers, wheat planters, corn planters, single disc planters, middle cultivators, soil ridgers, soil loosening wheat and rice machines, harvesters, wheat and corn threshers, tractor trailers, slashers, gearboxes, plough and harrow discs, cultivation chisels and points, and hand tools. Moreover, we also can supply other products according to customers' drawings and samples. We will satisfy our customers with our best products and services.
Contact info:
Fax:+86-0534-7629666
Skype: gootine
Contact Us
- Yucheng Tianming Machinery Co., Ltd.
- Contact nameSusan Lee Chat Now
- Phone86-0534-2129888
- AddressHigh-Tech Development Zone
