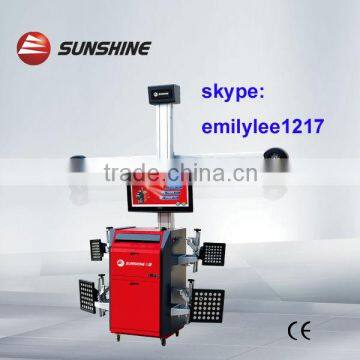

SUNSHINE Brand S-F8 3D Wheel Aligner,with Electric Adjustable Beam

Characteristics of SUNSHINE brand 3D Wheel Alignment

3D cameras alignment—Based on the car and not influenced by the platform

Measurement system—equipped with double digital cameras and four target disk, supplying revolutionary measurement mode

Target disk—There is no electronic components, so the wheel alignment will not has a component failure problem.

Equipment Calibration - once calibration before delivery, workable immediately after installation, no need for periodic calibration

Measurement progress—no need to compensate for steel ring , the precise eccentric compensation will be just once pulling or pushing the car back and forth

Software system——Easy to operate, complete conventional basic parameters within two minutes ,significantly faster than conventional aligners

Daily Maintenance—Easily maintenance , download and upgrade freely for the model data

Related parameters:

S-F8 3D alignment with electric adjustable pole

Standard Configuration
deluxe cabinets, DELL branded computers (Liquid Crystal Display), Canon printers, target disk, Pylon, brake holder, steering wheel holder, wedge-shaped pads,turnplate, transition blocks of turntable,specific target plate, wheel rim adapter

Software Features
Basic Functions:
parameters measurement such as camber, Caster, Kingpin inclination, Toe-in & Toe-out, Set back, Thrust angle

Extension Functions:
axis deviation measurement, wheel deviation measurement, animation, single-round measurements,  vehicle lift measurement, steering wheel adjustment,alignment platfrom horizon measurement, engine bracket adjustment,toe-in locking measurement,zero toe-in camber measurement,body height measurement function,rolling wheel radius measurement,dismantling tyre measurement (match with wheel rim adapter)
Net weight:340kgs, Gross weight:390kgs
Packing: 4cartons per set  cubic:;2.5cbm
