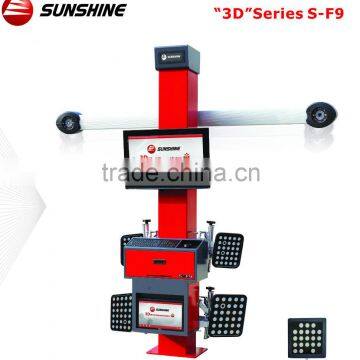

Advanced SUNSHINE Brand 3d Auto Wheel Alignment (S-F9)

Characteristics of SUNSHINE brand 3D Wheel Alignment

3D cameras alignment—Based on the car and not influenced by the platform

Measurement system—equipped with double digital cameras and four target disk, supplying revolutionary measurement mode

Target disk—There is no electronic components, so the wheel alignment will not has a component failure problem.

Equipment Calibration - once calibration before delivery, workable immediately after installation, no need for periodic calibration

Measurement progress—no need to compensate for steel ring , the precise eccentric compensation will be just once pulling or pushing the car back and forth

Software system——Easy to operate, complete conventional basic parameters within two minutes ,significantly faster than conventional aligners

Daily Maintenance—Easily maintenance , download and upgrade freely for the model data

Related parameters:

S-F9(Variable-height camera support by electricity & Camera automatic tracking):

Standard Configuration

Luxurious cabinet, Electric movable post,Dell computer, canon printer, targetdisk, Pylon bracket, Brake fixer, Steering wheel fixer, Wedge block, Turntable,Transition block of turntable ,dedicated target disk ,wheel rim adapter

Software function

Basic function: camber, caster, KingpinInclination, toe angle, set back, Thrust Angle

Extended function: axis deviation measurement, wheel deviation measurement,single-wheel measurement,the vehicle lift measurement function,straight steering wheel function,Alignment platform levelness detecting function, engine bracket adjustment,Locking toe measurement function,Toe curvature measurement,Ride height measurement function,Air suspension vehicle alignment software(proprietary software),Rolling Radius Measurement,Scrub Radius Measurement,wheel bas
