Home > Products > wheel alignment > SUNSHINE 3D 4 Tyre Alignment Machine With CE (SX-G6T)
SUNSHINE 3D 4 Tyre Alignment Machine With CE (SX-G6T)
- QINGDAO PORT
You May Like
Product Details
| Power | 2.2KW | Power Supply | 220V | |
| Place of Origin | Shandong, China | Brand Name | SUNSHINE | |
| Model Number | SX-G6T |
Product Description
Characteristics of SUNSHINE brand 3D Wheel Alignment
3D cameras alignment—Based on the car and not influenced by the platform
Measurement system—equipped with double digital cameras and four target disk, supplying revolutionary measurement mode
Target disk—There is no electronic components, so the wheel alignment will not has a component failure problem.
Equipment Calibration - once calibration before delivery, workable immediately after installation, no need for periodic calibration
Measurement progress—no need to compensate for steel ring , the precise eccentric compensation will be just once pulling or pushing the car back and forth
Software system——Easy to operate, complete conventional basic parameters within two minutes ,significantly faster than conventional aligners
Daily Maintenance—Easily maintenance , download and upgrade freely for the model data
Related parameters:
Measurement project | Accuracy | Measurement range | |
Display accuracy | 1´/0.01mm | ||
Camber | ±2´ | ±10° | |
Caster | ±6´ | ±20° | |
Kingpin Inclination | ±6´ | ±20° | |
Toe-in & Toe-out | ±2´ | ±20° | |
Set back | ±2´ | ±5° | |
Thrust angle | ±2´ | ±5° | |
Wheel Deviation | ±2mm |
| |
Axis Deviation | ±2mm |
| |
SX-G6T 3D alignment specifications:
Standard Configuration: small compact cabinets, camera mounted stent economic criteria, DELL branded computers, Canon printers, target disk, Pylon, brake holder, steering wheel holder, wedge-shaped pads, turntable, transition blocks of turntable
Software Features parameters measurement such as camber, Caster, Kingpin inclination, Toe-in & Toe-out, Set back, Thrust angle
Extension Functions: axis deviation measurement, wheel deviation measurement, animation, single-round measurements,vehicle lift measurement, steering wheel adjustment,alignment platform horizon measurement Net weight:320kgs, Gross weight:370kgs |
Packing: 4cartons per set cubic:;2.5cbm

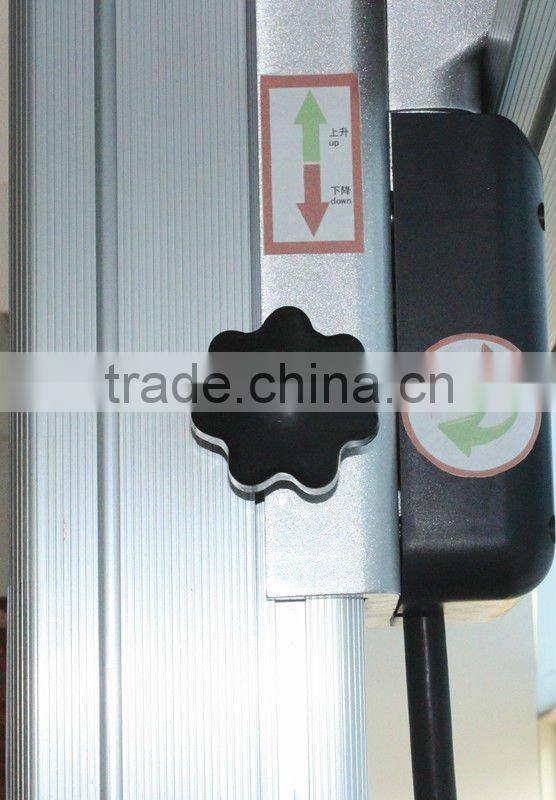

SX-G6T 3D ALIGNMENT WITH MANUAL ADJUSTABLE POLE:
