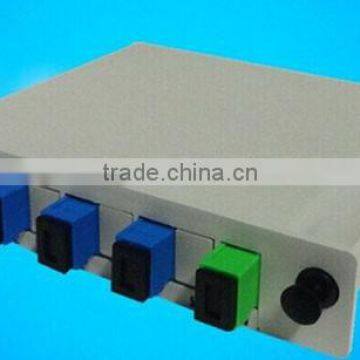

1x4 high performance plug-in optical plc splitter

FOB Price

US$ 9.00 - 9.00 / Unit

1 Unit(Min. Order)

Port Shenzhen Hongkong
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	SH
Model Number	SH-PLC1T4

Product Description

1x4 high performance plug-in optical plc splitter

PLC (Planar Lightwave Circuit) Splitter, adopting semiconductor technology (lithography, etching, developer technology), offers accurate and even splits with minimal loss in an efficient package. It complies with Telcordia GR-1209-CORE and Telcordia GR-1221-CORE-, widely used in fiber optic cabling.

SH provides various kinds of PLC splitter,including:bare fiber type,blockless type,PLCS in plug-in plastic box,PLCS in ABS box,tray type,19”standard rack type.SH PLC Splitter provides 1xN(N up to 64),or 2xN optional.

Fearures

Compact package, suitable for density applications
Wide temperature range (-40 to 85 °C), allowing to deploy in the areas of extreme climate
Split ratio up to 64, providing a high reliability
Wide range of wavelengths (1260 – 1650 nm), easy to adjust
Low insertion loss and Polarization Dependent Loss
Fiber input: 0.9 mm, 2.0mm or 3.0mm fiber available
Fiber output: 0.9 mm, 2.0mm or 3.0mm fiber available
FC, SC, ST, LC…available

Applications

Fiber to the point (FTTX)
Fiber to the home (FTTH)
Passive optical networks(PON, GEPON)
Local area networks (LAN)
Cable television (CATV)
Telecommunication Networks

Specifications

Parameter	Port Configuration
Parameter	1X2	1X4	1X8	1X16	1X32	1X64
Fiber Type	G.657A
Connector	FC, SC, ST, LC…
Operating Wavelength(nm)	1260~1650
Insertion Loss(dB)	3.8	7.1	10.2	13.5	16.5		20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5		2.0
Return Loss (dB)	55	55	55	55	55		55
PDL (dB)	0.2	0.2	0.2	0.25	0.3		0.35
Directivity (dB)	55	55	55	55	55		55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5		0.8
Temperature Dependent Loss(-40~+85°C)	0.4	0.4	0.4	0.5	0.5		0.5
Operating Temperature (°C)	-40~+85°C
Storage Temperature (°C)	-40~+85°C

Company

Packing & Delivery

standard carton box and neutral packing

1-3 days for samples; 5-10 days for bulk orders
