PLC Splitter in ABS Box Package
- Hong Kong/Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | SH | |
| Model Number | SH-PLC |
Product Description

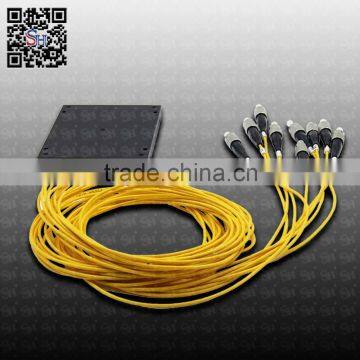

PLC Splitter in ABS Box Package
PLC (Planar Lightwave Circuit) Splitter, adopting semiconductor technology (lithography, etching, developer technology), offers accurate and even splits with minimal loss in an efficient package.
It complies with Telcordia GR-1209-CORE and Telcordia GR-1221-CORE-, widely used in fiber optic cabling.
- Compact package, suitable for density applications
- Wide temperature range (-40 to 85 °C), allowing to deploy in the areas of extreme climate
- Split ratio up to 64, providing a high reliability
- Wide range of wavelengths (1260 – 1650 nm), easy to adjust
- Low insertion loss and Polarization Dependent Loss
- Fiber input: 0.9 mm, 2.0mm or 3.0mm fiber available
- Fiber output: 0.9 mm, 2.0mm or 3.0mm fiber available
- FC, SC, ST, LC…available
- Fiber to the point (FTTX)
- Fiber to the home (FTTH)
- Passive optical networks(PON, GEPON)
- Local area networks (LAN)
- Cable television (CATV)
- Telecommunication Networks
Parameter | Port Configuration | |||||
1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | |
Fiber Type | G.657A | |||||
Connector | FC, SC, ST, LC… | |||||
Operating Wavelength(nm) | 1260~1650 | |||||
Insertion Loss(dB) | 3.8 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 |
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
PDL (dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 |
Temperature Dependent Loss(-40~+85°C) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Operating Temperature (°C) | -40~+85°C | |||||
Storage Temperature (°C) | -40~+85°C | |||||
Q: How can I get a sample?
A: We provide sample to customer with attractive discounts,plz contact us directly.
Q: Could you do design for us?
A: Yes, we could do our best, including design the best solutions, technology support etc. for you, if you provide us more details about your project.
Q: What kinds of certificate do you have ?
A: We had alread obtianed ISO9001 CE FCC ROSH ect.
Q: What about the shipment?
A: In general,the lead time is 5-7working days after confirm payment.We have close cooperation with DHL,TNT,UPS,Fedex ect.
Q: How about the payment ?
A: L/C ,T/T ,West Union, paypament, PayPal and so on. We will meet your needs.
Q: What's your products' advantages ?
A. The best quality and competitive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
