Zhongtuo Metal Purline Shelves Rack Pillar Beam Upright Roll Former for Supermarket &wearhouse
- Tianjin
- T/T
You May Like
-
Zhongtuo Metal Purline Shelves Rack Pillar Beam Upright Production Line for Supermarket &wearhouse
-
Zhongtuo Metal Purline Shelves Rack Pillar Beam Upright Forming Line for Supermarket &wearhouse
-
Zhongtuo Shelves Rack Pillar Beam Upright Roll Former for Supermarket &wearhouse
-
Zhongtuo Shelves Rack Pillar Beam Upright Roll Forming Line for Supermarket &wearhouse
-
Zhongtuo Storage Rack Pillar Roll Former for Supermarket &wearhouse
-
[Integrity and Professional Supplier]steel Storage Rack &Supermarket Shelf Beam Roll Formed
Product Details
| Place of Origin | Hebei, China | Brand Name | Zhongtuo | |
| Model Number | SP505 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.customize pillar for supermarket as required.2.Low energy consuming and high working speed.
3.Strong tech team supported
Zhongtuo metal purline shelves rack pillar beam upright roll former for supermarket &wearhouse
Specification:
1.low energy consuming like workforce
2.beautiful appearance;
3.High quality

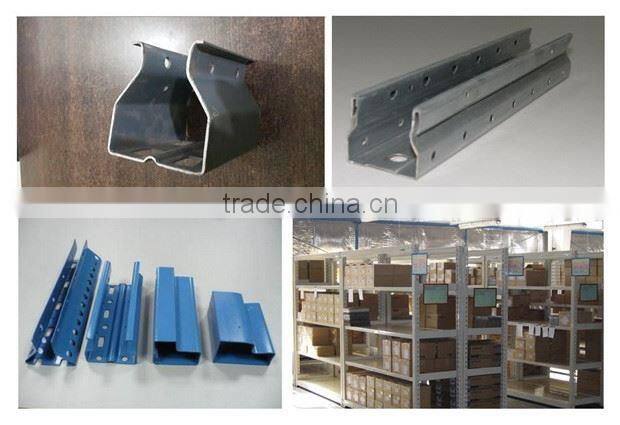

Zhongtuo metal purline shelves rack pillar beam upright roll former is a professional machine for making pillar in various types for supermaket. It suits for batch or mass producing supermake pillars. In the following part, I will show detail parameters of this machine.
Description |
Introduction |
Working efficiency | 5-8m/min(not include cutting time) |
Thickness of Material | 2-3mm |
Control system | Panasonic PLC |
Uncoiler system | 5Ton Manual Operation |
Side- wheel
| 7 Sets |
Servo feeding | 1 set |
Servo feeding power: | 3.0kw |
Punching | 80T[70 times/min] |
Forming by rolling | Roll 18 times |
Roller material | GCR15 Aluminium processing after quenchin HRC58-62degree, Chrome plated |
Shaft and the diameter of axle | 45#Aluminium-processing ,diameter of axle=80mm
|
Main part power | 18.5kw |
Hydraulic motor power
| 5.5kw |
Hydraulic pressure | 12Mpa |
Scissor material | Cr12Mov, herd steel HRC 58-62 degree |
length tolerance
| 3m±1.5mm |
voltage | 380V, 50HZ,3 phase (adjustable by customer needs) |
Frame form | arch type |
Driving Method | Gear driving |
Color | Yellow and blue(adjustable) |
Size | length*Width*Height - 20*1.3*1.2m |
Package | Nude package in 2*40GP container
|
Delivery date | 60 working days |
Payment Method | 30% T/T in advance and balance 70% after inspection confirmation before shipment. |
Main features of each part:
Shearing part:
(1) Shearing method:It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
(2)Material:GCR12,Quenching Oil HRC58-62°C
(3)Length :automatically cut in specified length
(4)Error in length:±1.5mm
Counter:Panasonic
(1)Voltage:380V,50HZ,3phase(adjustable)
(2)control length automatically
(3)production counting automatically
(4)Computer controls length and quantity for finishing production in specified amount.
(5)Fix error automatically and accurately.
(6) control method:touch and button
(7)length unit:mm
Shaping machine features:
(1) Simple in construction,beautiful in appearance as it takes structural steel for welding in the whole. It is good in bearing capacity.
(2) For making sure the quality and capability of equipment, other parts of the machines were bought from well-known enterprise.
(3) It specifies length, shape, punching position, cutting position automatically and accurately, so the product is beautiful in head and end shape.
(4) Easy to install and use, it is good for factory use.
(5) low noise but high efficiency.

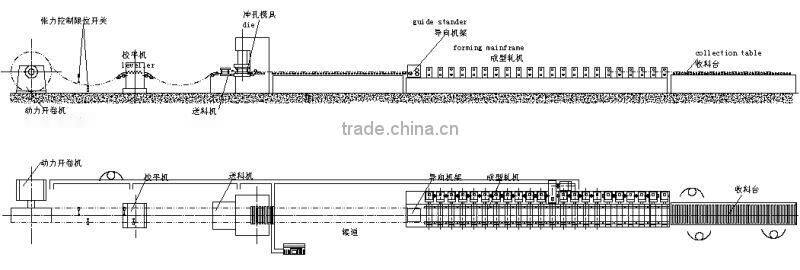

Uncoiling—Feeding—Leveling—Punching—Shaping—Shearing—Production
Check supermakert pillar machine from the following pictures:
Supermaket pillar machine packaged Wiped Anti Rust Oil, Rollers and Shafters covered by waterproof film,Hydraulic station, PLC control Box, Spare parts and some small parts packed in plywood box. All Components Fixed by steel wire with Container.
Warranty
1). One year, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation overseas
and USD50/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment)
