Coal Mine Supporting Mesh Geogrid

coal mine supporting mesh geogrid

Introduction of coal mine supporting mesh geogrid

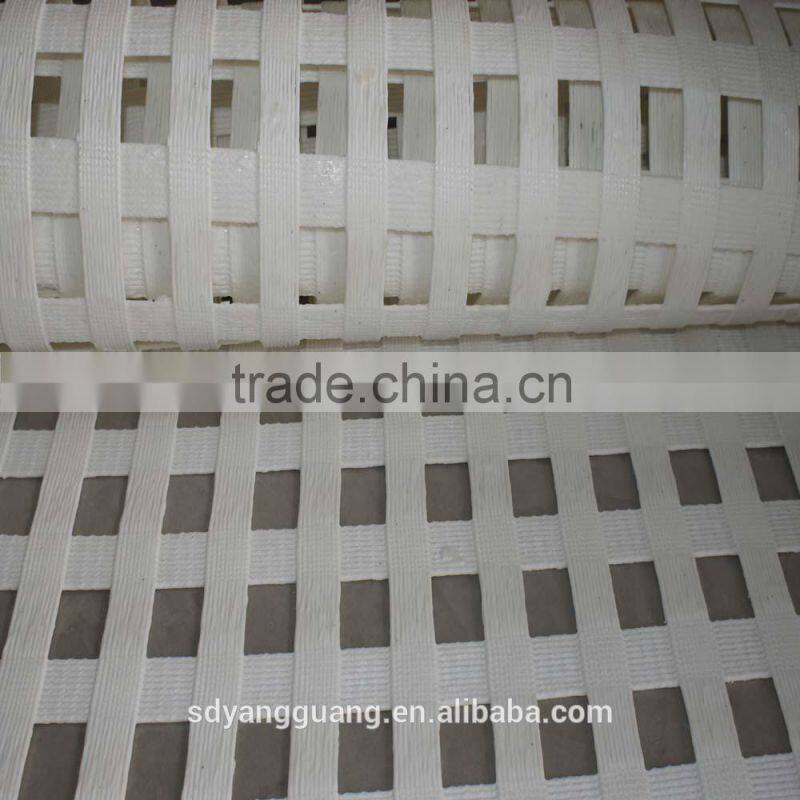

Polyester geogrid adopts high strength, high modulus, and low shrinkage twisting industrial polyester fiber as raw material. It is warp knitted with oriented structure and in the condition of no bending among warp and weft direction. Its crossing points are bundled and bended together by high strength long polyester fiber forming tough conjunction. Then it forms into mesh size product after coated with high quality oil or water-soluble PVC which improves its strength,various technical standards and gives full play of its mechanical property

Application of  coal mine supporting mesh geogrid  coal mine supporting mesh geogrid

1. New road and renovation project

2. Asphalt overlay on the old cement concrete road surface

3. Repair of asphalt pavements cracks and old asphalt road

4. To be reinforced layer for airport runway, bridge,playground.

Features of coal mine supporting mesh geogrid

1. Enhance roadbed and effectively diffuse its load to improve its stability and bearing capacity and increase service life;

2. Be able to bear more alternate load;

3. Prevent roadbed distortion and crack caused by the loss of roadbed materials;

4. Increase the self-supporting property of fill behind retaining wall, decrease the earth pressure of retaining wall, save cost, increase service life and reduce maintenance expense;

5. Combine anchor sprouting concrete construction method to give side slope maintenance, which not only saves investment by 30%-50% but also reduces erection time by one time or above.

6. To increase geogrid in the roadbed and surface of highways can reduce flexure, track and put off the flawing appearance by 3-9 folds and reduce the thickness of structural layer by 36%

7. It is applicable to any kind of soil, not necessary to draw material from other place, saving time and labor;

8.Simple and rapid construction will greatly reduce construction cost.

Our main products of coal mine supporting mesh geogrid

1. Fiberglass geogrid: tensile strength from 30kn/m to 400kn/m,  elongation less than 3%, mesh size 12.7mm or 25.4mm or 50mm,  coated by asphalt (bitumen), max roll width 6m,

roll length 50m or 100m,packed by black PE membrane + plastic pipe.

2.Polyester geogrid: tensile strength from 20kn/m to 1000kn/m,  elongation less than 13%, mesh size 12.7mm or 25.4 mm or 50mm, coated by PVC (water soluble PVC or oil PVC max roll width 6m,

 roll length 50m or 100m, packed by black PE membrane + plastic pipe.

3.Geocomposites:  fiberglass geogrid ---tensile strength from 30kn/m to 200kn/m,  elongation less than 3%,mesh size 12.7mm or 25.4 mm or 50mm, coated by asphalt (bitumen), max roll width 6m, roll length 50m or 100m, packed by black PE membrane + plastic pipe.  polyester non-woven geotextile--white color, unit weight often 150g/sqm. Composited by adhesive glue or by sewing.

4.Mine Grid: tensile strength from 40kn/m to 800kn/m, used under mine for support and protecting, white or yellow color.

With China patent and MA certificate.

At the same time, we also export PP biaxial geogrid, HDPE uniaxial geogrid, HDPE geocell, Non- woven geotextile, Geonet, Geomat, GCL.

FAQ:

1. How about the delivery time?

Lead time since receipt of 30% T/T deposit payment: 3 weeks.

2. What kind of payments does jenor support?

 T/T, L/C, Cash are accepted.

3. What's are the MOQ?

We can according to your condition to set the MOQ.

And we can provide you samples for quality inspection.

4. Do you charge for the samples?

Accordeing to our company policy, the samples are free, we only charge the freight fee.

And we will return the freight fee If you set the order .

5.Can you produce the product according to customers'requirements ?

Sure, we are professional manufacturer, OEM and ODM are both welcome.
