color coating roof line
- tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
stone coated metal roof tile rollformer machine
-
stone coated roof tile rollforming machine
-
hebei making chain transmission and plc control system non-toxic stone coated roll forming machine
-
color coated steel sheet machine
-
stone coated roof tile machine /terrazzo machine
-
hebei manufacture stone coated roof tile roll forming machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Roof | |
| Production Capacity | 5-8m/min | Place of Origin | Hebei, China | |
| Brand Name | zhongtuo | Model Number | ZT-1170 | |
| Power(W) | 113kw | Voltage | 380V 50HZ | |
| Dimension(L*W*H) | 24*1.3*1.1m | Weight | 20t | |
| Certification | ISO9001 CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
color coating roof line1.low cost
2.good sale-sercive
3.low Energy consumption
4.high speed
color coating roof line
color coating roof line: coated metal roof tile is a modern environmentally friendly roofing material with the basic of
0.4mm Al-zine coated steel.
Covering color vermiculite surface which carried under the high temperature technology.
It is high-performance, stable, energy-efficient and easy operation.
Sample roof panel:
NO. 1 Auto bottom glue spraying section | |
Appearance size | 4000*1000*2000mm |
Driving section | 3KW Excitation motor or frequency speed regulation (AS per customers’ requirements ) |
Automatic pressure spray tank | 1 set ; Capability: 200kg ; Range: 0.6~1Mpa |
Automatic glue machine motor | Servo motor ; Power: 750w ; PLC |
Automatic spray gun | 4 set (spare parts) |
Dust collecting fan | 1 set ; Power: 200w |
Damp proof lamp | 1 pc ; Power: 100w |
Conveying device | Chain reciprocating |
Air compressor | 1 set ; Power: 7.5kw |
Dust control of axial flow fan | 1 set ; Power: 200w |
Agitator | 1 set ; Power: 1.5kw |
NO. 2 Auto stone coated section | |
Appearance size | 3500*1000*1500mm |
Framework | Steel welding |
Conveying device | Chain reciprocating |
Automatic sand hopper | 1 set ; Capability: 200kg |
Bucket lift | 1 set |
Manual sandblast gun | 4 sets |
NO. 3 The first time drying section | |
Appearance size | 25000*1000*1200mm |
Framework | Steel welding |
Frame type thermal insulation wall | 1.2mm cold steel with Rock wool |
Automatic temperature controller | 4 sets ; Range: 0°~160° |
Infrared heating tube | 30pcs ; Power: 30kw |
Conveying device | Chain reciprocating |
Air cooling device | 1 set ; Power: 200w |
NO. 4 Auto face glue spraying section | |
Appearance size | 3000*1000*2000mm |
Framework | Steel welding |
Damp proof lamp | 1 pc ; Power:100w |
Automatic pressure spray tank | 1 set ; Capability: 200kg ; Range: 0.6~1Mpa |
Conveying device | Chain reciprocating |
Automatic spray gun | 4 sets (spare parts) |
Manual patch glue gun | 4 sets |
Dust control of axial flow fan | 1 set ; Power: 200w |
Automatic glue machine motor | Servo motor ; Power: 750w |
NO. 5 The second time drying section | |
Appearance size | 30000*1000*1200mm |
Framework | Steel welding |
Frame type thermal insulation wall | 1.2mm cold steel with Rock wool |
Automatic temperature controller | 4 sets ; Range: 0°~160° |
Infrared heating tube | 30pcs ; Power: 30kw |
Conveying device | Chain reciprocating |
Air cooling device | 1 set ; Power: 200w |
About the workers need:
PLACE | QTY. |
Panel loading | one |
Bottom spraying | one |
Stone coating | one |
Fill stone | one |
Face glue | one |
Bottom glue mixing | one |
Finish goods receiving | one |

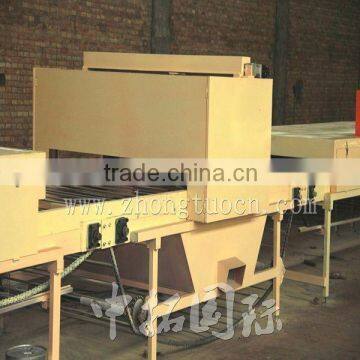

the picture of production house
1). One year, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation
overseas and USD50/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment)
Payment Terms: 30%T/T after signed the contract,balanced before delivery
