3 Axis WW2040 With Servo Motor CNC Engraving Machinery
- Qingdao
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | WinWin | |
| Model Number | WW2040s | Voltage | AC380V, 50/60Hz | |
| Power(W) | 4.5KW | Dimension(L*W*H) | 4800*2200*1950mm(Packing size) | |
| Weight | 3100KG | Certification | CE, UL, ISO | |
| Warranty | 1Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

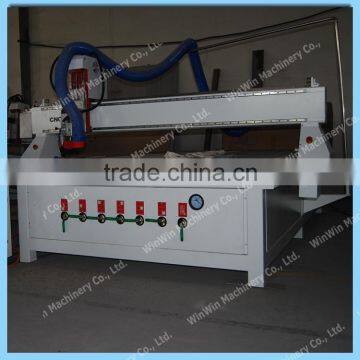

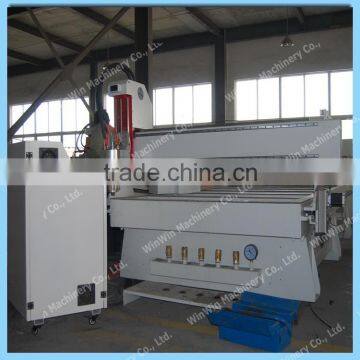

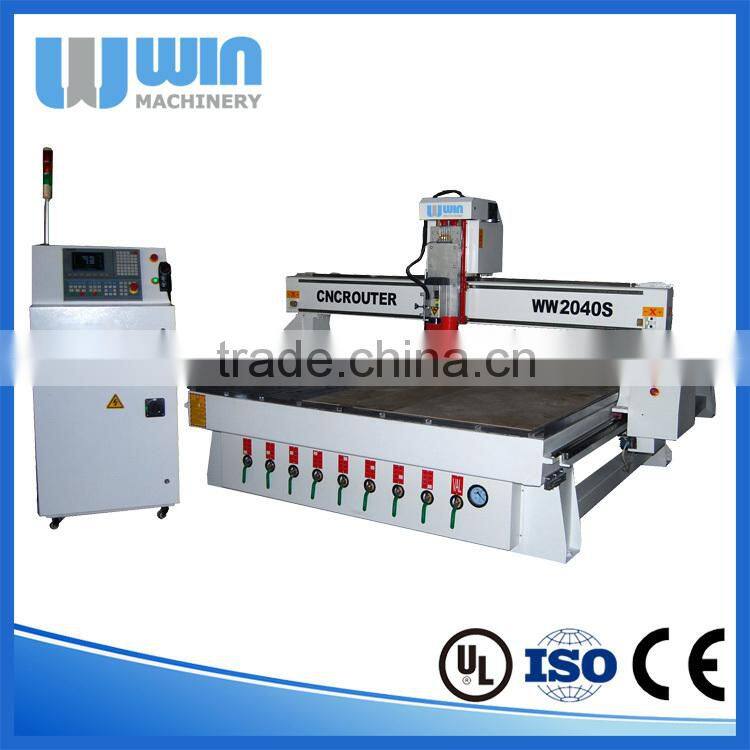

3 Axis WW2040 with Servo Motor CNC Engraving Machinery
1. Overview
With hard steel structure, working with 850W Yakskawa servo, Syntec control system, Vacuum pump and working size 2000mm * 4000mm, the CNC engraving machine is fit for heavy industrial, the working table can carry more than 1000KG material. And fit for hard wood working as well.
2. Advantages
1) The CNC Machine’s body is strong, high-precision, reliable and durable.
2) Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3). Well-known brands of HSD Air-cooled brushless spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4) High-performance driven motor to ensure the machine’s high speed and accuracy.
5) Perfect design, top quality accessories, to minimize the machine’s failure rate.
6) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
3. Applications
3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.
4. Materials Cut
Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.
5. Performance Parameter
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 2000x4000x200mm |
| 2 | Table Size | 2100×4400mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum and T-slot combined (Option: T-slot table) |
| 6 | Frame | Welded Structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without spindle) 4.5Kw |
| 10 | Max. Rapid Travel Rate | 40000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 3.0/4.5/6/7KW |
| 13 | Spindle Speed | 0-18000RPM |
| 14 | Drive Motors | Yaskawa Servo System |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| 16 | Command Language | G Code |
| 17 | Operating System | Syntec Control System(options: DSP/Ncstudio/Mach3 PC Software) |
| 18 | Computer Interface | Ethernet |
| 19 | Flash Memory | 256M |
| 20 | Collet | ER25 |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Type3/UcancameV9 Software (Option: Artcam Software) |
| 23 | Running Environment Temperature | 0 - 45 Centigade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 2300X4800X1900mm |
| 26 | N.W. | 2750KG |
| 27 | G.W. | 3100KG |
| 28 | Optional Parts | Air Cooling Spindle or Water Cooling Spindle |
| Dust Collector | ||
| Rotary System | ||
| Mist-cooling System | ||
| Panasonic Servo Motors/Delta Servo Motors |

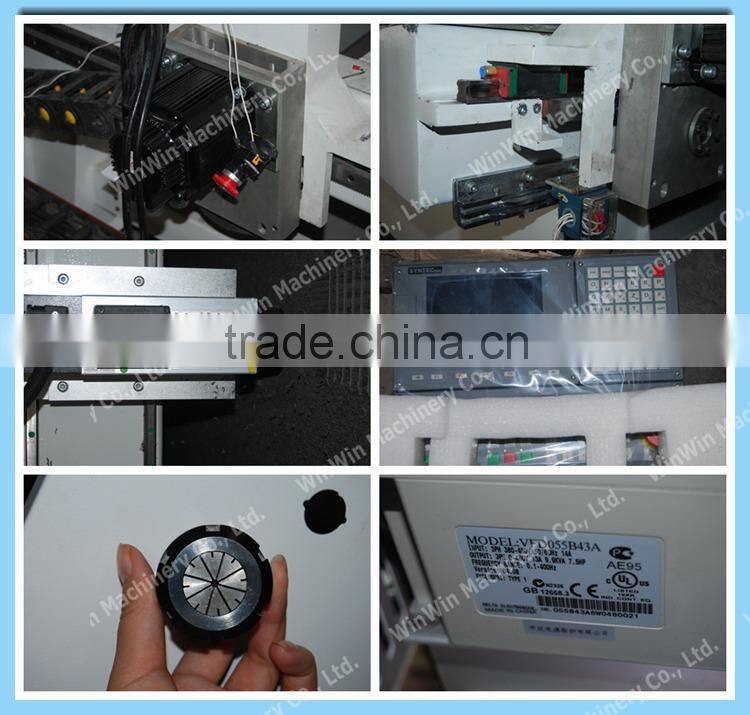

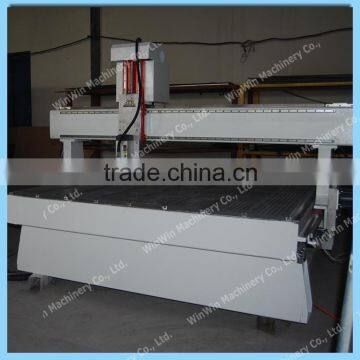

6. Details

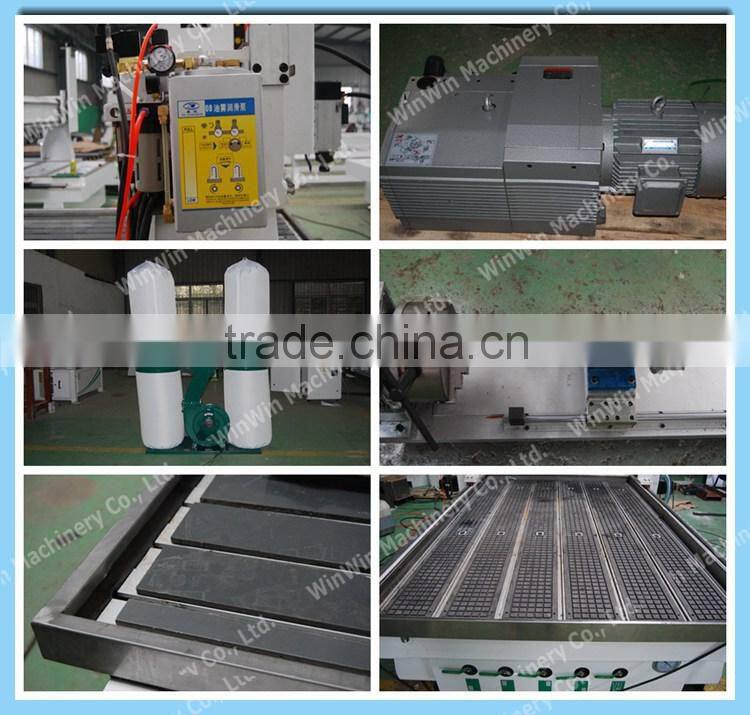

7.Options
8. Packing&Delivery
9. Guarantee & After Sales Service
1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.

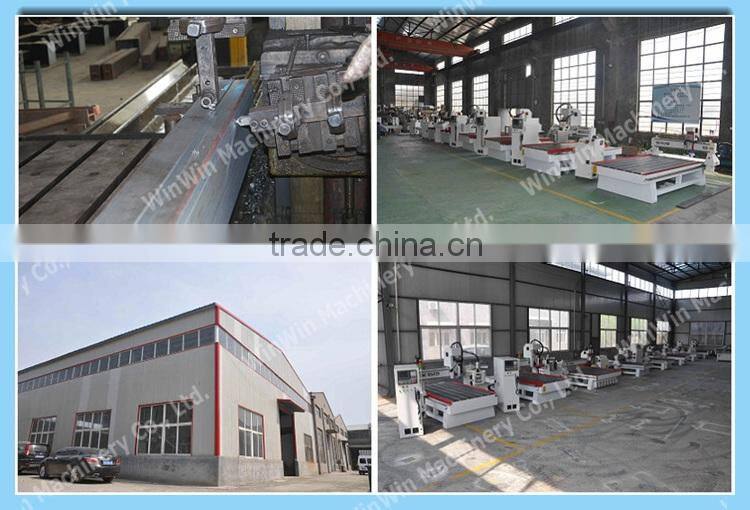

10. Factory
