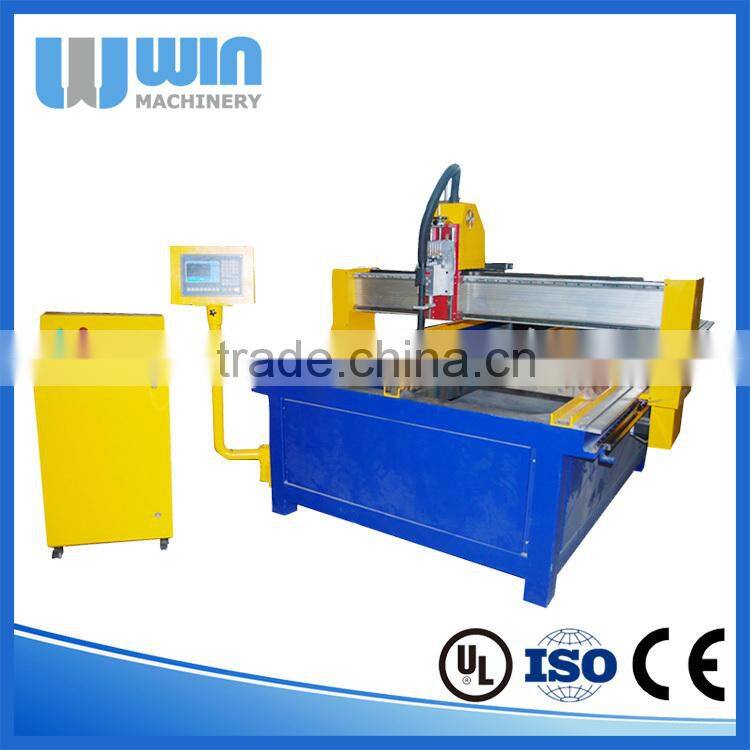

High-speed P1325 Machine for CNC Plasma Cutting
- Qingdao
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | WinWin | Model Number | P1325 | |
| Voltage | AC380V, 50/60HZ | Rated Power | 2.5KW | |
| Dimension(L*W*H) | 3000*2100*1900mm | Weight | 860KG | |
| Certification | CE, UL, ISO | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High-speed P1325 Machine for CNC Plasma Cutting
| | |

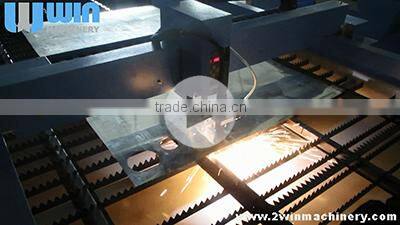

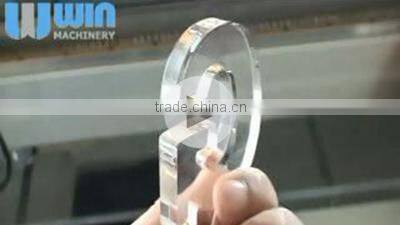

| Plasma Cutting Machine | Laser Cutting Machine | |
| | |

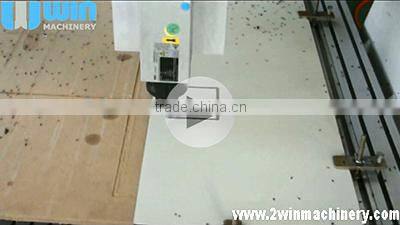

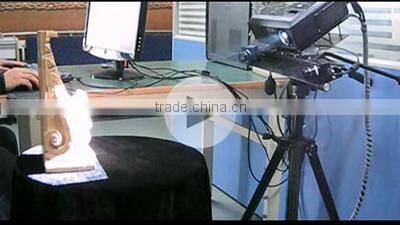

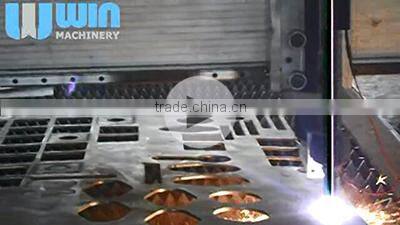

| Plasma Cutting Machine to Cut Metal | CNC Router | 3D Scanner |
1. Overview
The Machine for Plasma Cutting included a heavy duty, all steel construction with superior quality components such as precision rack-n-pinion drives on the X and Y axes, and a ballscrew on the Z axis which provides precise torch positioning, high-speed cutting up to 800 IPM and the ability to cut up to 1" thick steel. The machine comes standard with a steel V-grid down draft and a water spray nozzle to help reduce smoke.
2. Applications
Machine Manufacturing, Armored Vehicles, Automotive Fabrication, Construction, Decorative Fencing, Job Shops, Structural Steel, Marine Fabrication, Oil Field Equipment, Sign Shops, Metal Fabrication, etc.
3. Materials Best for Plasma Cutting
Steel, Stainless Steel, Aluminum, Brass, Bronze, Copper, Diamond Plate, Expanded Metal, Iron, Galvanized and more.
4. Performance Parameter
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500mm |
| 2 | Cutting thickness | (120A)3-18mm |
| 3 | X,Y Traveling Positioning Accuracy | ±0.01/300mm |
| 4 | Cutting Speed | 0-8000mm/min |
| 5 | Plasma Generator | American Cut-Mast |
| 6 | Frame | Welded Structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Working Form | Untouched Arc Striking |
| 9 | Working Voltage | 3-Phase 380V |
| 10 | Control system | Start control system(optional: DSP) |
| 11 | Software | Type3 |
| 12 | Document Transmission Form | USB Interface |
| 13 | Drive Motors | Stepper System |
| 14 | G.W. | 980KGS |
| 15 | Packing Size | 7.1 CBM |

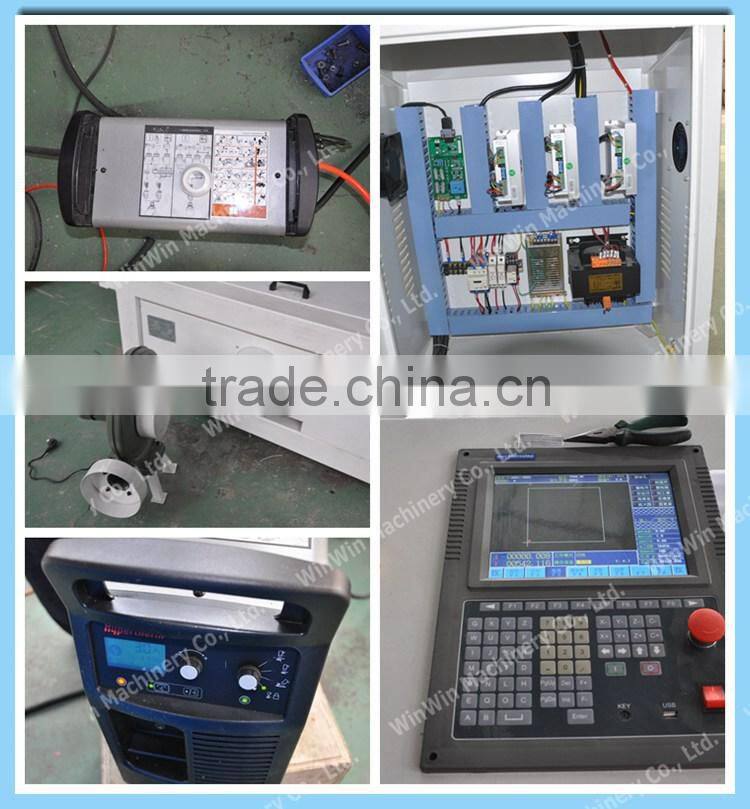

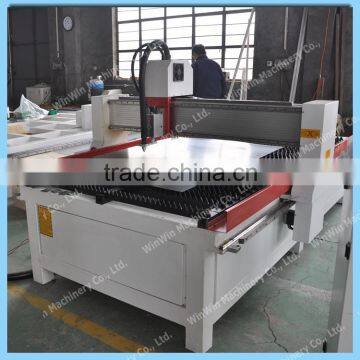

5. Details

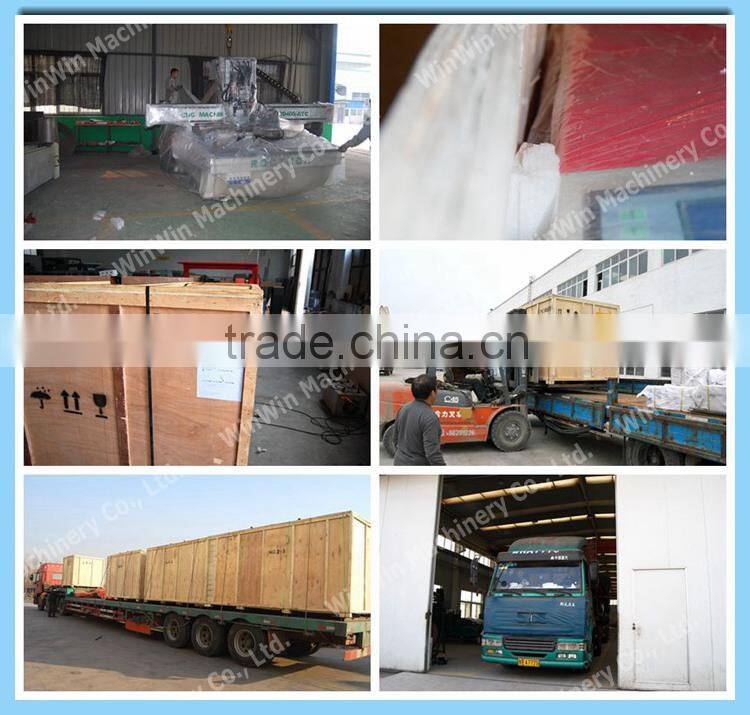

6. Packing&Delivery
7. Guarantee & After Sales Service
1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.

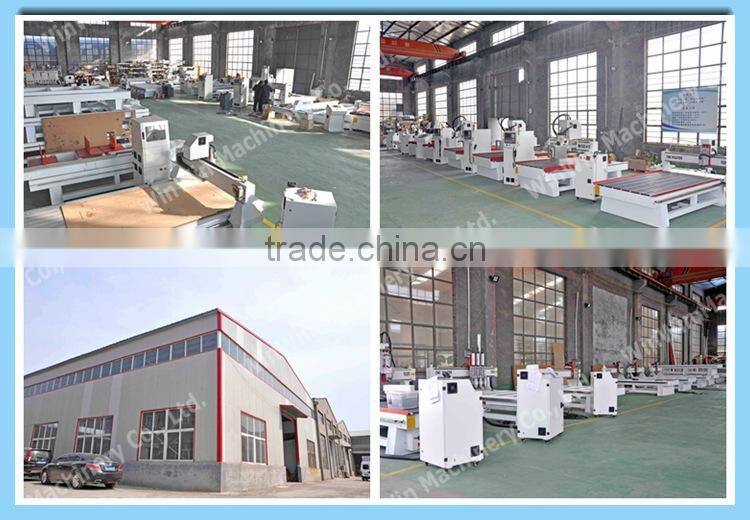

8. Factory
