High quality single layer roofing sheet roll forming machine
- 30 Set / Sets per Month
- Tianjin Xingang
- T/T L/C D/P D/A Credit Card
You May Like
-
High quality hydraulic roofing sheet crimping machine/roofing curve machine
-
Double layer Roofing Sheet Cold Roll Forming Machine
-
Antique roof tile/ metal roofing panel roll forming machine
-
High quality and speed Anode Plate production equipment/process
-
Automatic Galzed Corrugated Roofing Tile
-
Sheet Roll Forming Machine Corrugated Metal Roofing
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Glaze Steel | Use | Roof | |
| Production Capacity | 15-20m/min | Place of Origin | Hebei, China | |
| Brand Name | Zhongtuo | Model Number | ZT-900 | |
| Power(W) | 7.5kw | Voltage | 380V 50Hz 3phases, 380V/50HZ3Phase (as customer's request) | |
| Dimension(L*W*H) | 5m*1.3m*1.3m-15m*1.3m*1.4m | Weight | 4.5T | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

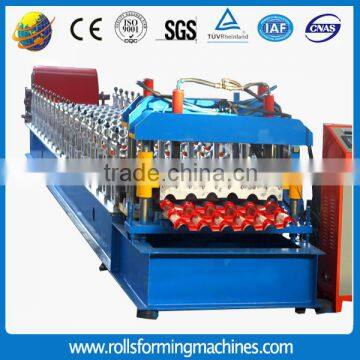

High quality single layer roofing sheet roll forming machine
---------------------------------------------------------------------
High quality single layer roofing sheet roll forming machine has the same function to make roofing sheet. But different with the normal quality machine, it can use more than 10 years and has highly working speed. When machine working, it is fully automatic. It has independent stand as frame, machine frame thickness is thicker than 25mm. All the elements of the machine are world famous. Machine mould and shaft all use the best material, even if after long time using, it also can keep perfect shape.
Working process of double layer roofing machine:
Uncoiling--> Feeding material into machine--> Roll forming Measuring length→ Step formed→ Auto cutting Products receiving
Main parameters of single layer roofing sheet machine:
1 | Length of the main part | About9500*1650*1500mm |
2 | Weight of main part | About 6.8 Ton |
3 | Voltage | 380V/50HZ3Phase (as customer’s request) |
4 | Roller fixer | Middle plate welded |
5 | Frame | Guide pillar and the thickness is 50mm |
6 | Frame thickness | 25mm |
7 | Drive mode | Gear |
8 | Material of rollers | 45# steel, surface hard chromium plating. |
9 | Material of shafts | 45# steel |
10 | Diameter of shafts | Φ90mm Solid shafts |
11 | Number of rollers | 16 rollers |
14 | Main power | 11kw(Simon motor ) |
15 | Text screen displayer | Japan made |
17 | Forming speed | speed 8-22m/min |
18 | PLC Control system | Japan Panasonic PLC |
19 | Hydraulic power | 5.5KW |
20 | Gear box | China famous brand |
21 | Chain | 1.25 |
22 | Delivery time | 30 working days after receiving the deposit |
What also will be give along the roofing sheet machine:
1. Legs of the machine-to keep balance and enhance of the machine height.
2. Another set of cutting balde as spare part.
3. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;Rubber mat 1 pcs; Bolt spanner 1 pcs
Cangzhou zhongtuo cold roll forming machinery as a manufacturers from 2006. We are specialized in manufacturing color steel forming machine,light keel machine,C&Z purlin machine,Glazed tile forming machine,welded tube mill, stone coated roof production line,steel structural floor panel roll forming machine and so on. We also have the derivatives and raw material.
1.We provide 24/7 before and after service.
2.We give whole life tech support inculding maintainess and inquiry.
3. We support OA, L/C and other payment method.
