High Precision WW6090 Carpet Carving Machine
US$ 8,840 - 29,800
/ Set
1 Set(Min. Order)
- Qingdao
- T/T Credit Card PayPal
You May Like
-
Machine Manufacturers WW6090 3D Carving Machine
-
Chinese Machinery WW6090 Hobby Engraving Machine
-
China Good Character WW6090 CNC Cutting Machine Price
-
China Export (600*900mm) WW6090 CNC Glass Engraving Machine
-
China (600*900mm) WW6090 3D Engraving Machine
-
2015 Sale Promotion (600*900mm) WW6090 Rock Engraving Machine
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | WinWin | |
| Model Number | WW6090 | Voltage | AC220V, 50/60Hz | |
| Power(W) | 2.2KW | Dimension(L*W*H) | 1400*1100*1500mm | |
| Weight | 400KG | Certification | CE, UL, ISO | |
| Warranty | 1Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Precision WW6090 Carpet Carving Machine
Video
| | |
| Carousel Auto Change Tool | Engraving Aluminum | |
| | |
| CNC Router with Rotary | Cutting Foam Board | 4 Axis for Side Drilling |
Product Overviews
1. Overview
This Carpet Carving Machine is an affordable CNC work platform. Ideal for any size shop requiring a compact machine to run small routing jobs or to be used as an educational tool. The Routers features ball screw drives on all three axes and is controlled using a DSP easy-to-use hand-held micro stepper controller. The controller can run G-Code or dxf file formats.
2. Materials Cut
Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.
Product Description
3. Performance Parameter
| No | Description | Parameter |
| 1 | X,Y,Z Working area: | 600x900x90 mm |
| 2 | Table Size: | 720x1140 mm |
| 3 | Table Surface: | T-slot table |
| 4 | Frame: | Cast Iron table, Steel tube structure |
| 5 | X, Z Structure: | Round rails and TBI ball Screw, |
| 6 | Y Structure: | Ball Screw, Hiwin Rail Linear Bearings |
| 7 | Max. Power Consumption (Without spindle): | 2.2 KW |
| 8 | Max. Rapid Travel Rate: | 8000mm/min |
| 9 | Max. Working Speed: | 5000mm/min |
| 10 | Spindle Power: | 1.5kw water cooling spindle |
| 11 | Spindle Speed: | 0-24000RPM |
| 12 | Drive Motors: | Stepper system |
| 13 | Working Voltage: | AC220V/50/60Hz,1 Phs |
| 14 | Command Language: | G Code |
| 15 | Operating System: | DSP System(options: Ncstudio/Mach3 PC Software) |
| 16 | Software Compatibility: | Type3/UcancameV9 software, (Option: Artcam software) |
| 17 | Running Environment Temperature: | 0degree - 45 degree |
| 18 | Relative Humidity: | 30% - 75% |
| 19 | Computer interface: | USB |
| 20 | Flash Memory: | 128M(U Disk) |
| 21 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| 22 | X,Y,Z Repositioning Accuracy: | ±0.01 |
| 23 | X,Y Resolution | <0.01mm |
| 24 | Collet: | ER16 |
| 25 | Packing Size: | 1600X1300X1700mm |
| 26 | N.W.: | 300kg |
| 27 | G.W.: | 400KG |
| 28 | Guarantee | One year from the date of commission |

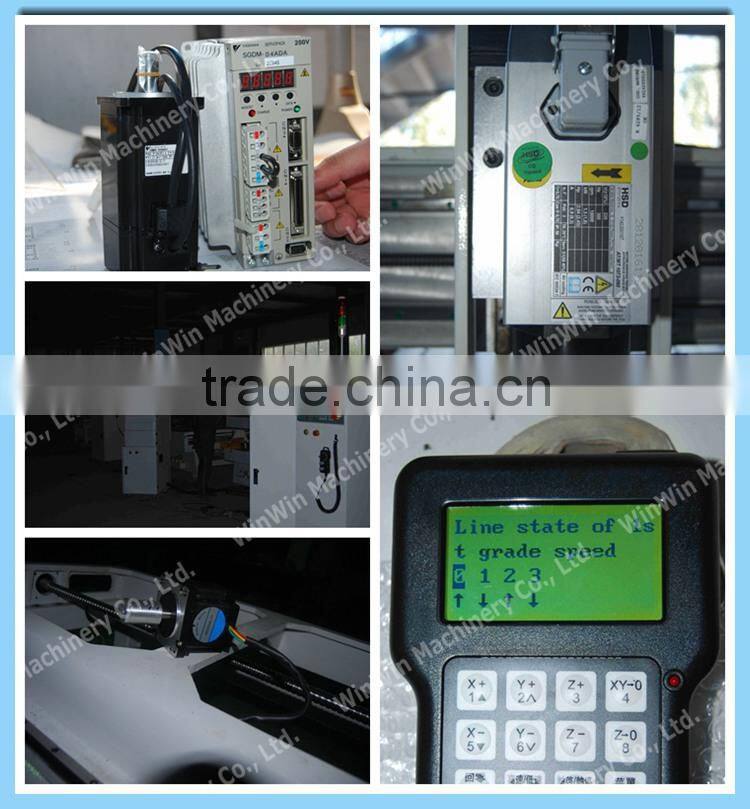

4. Details

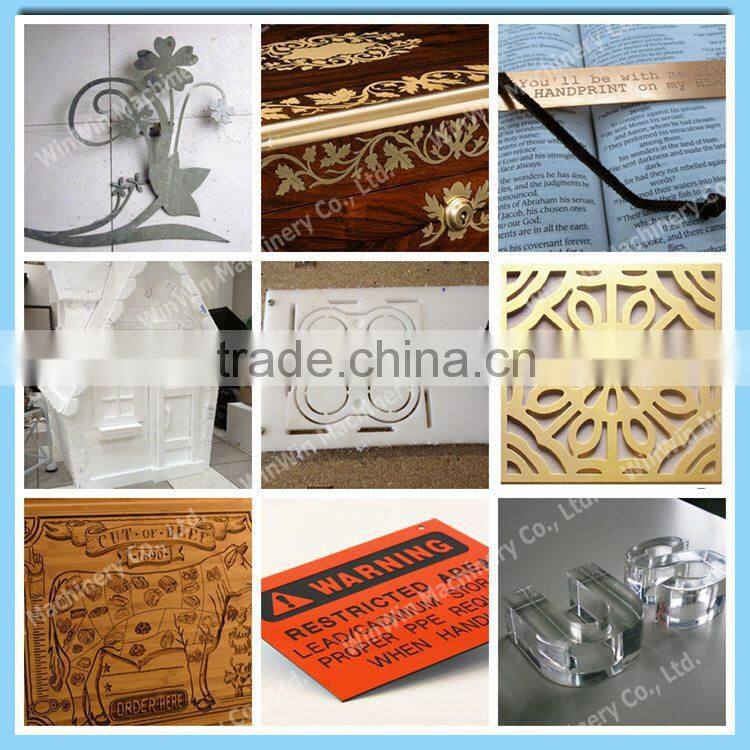

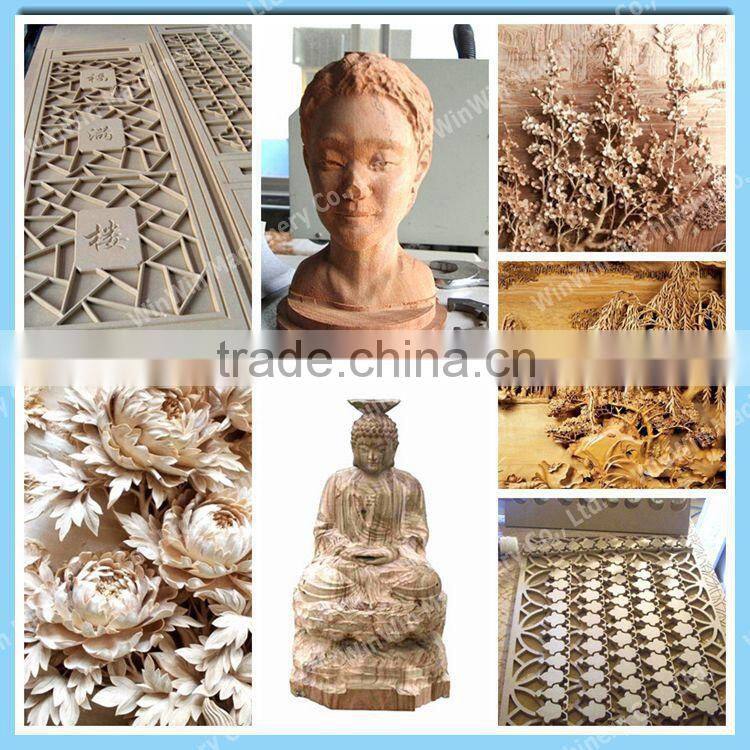

5.Samples
Packaging & Shipping

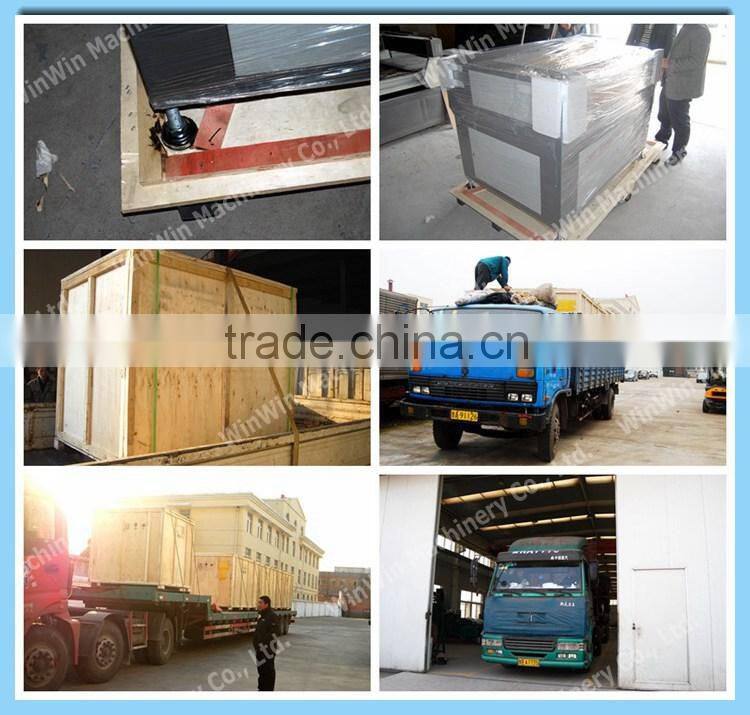

6. Packing&Delivery
Our Services
7. Guarantee & After Sales Service
1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
Company Information

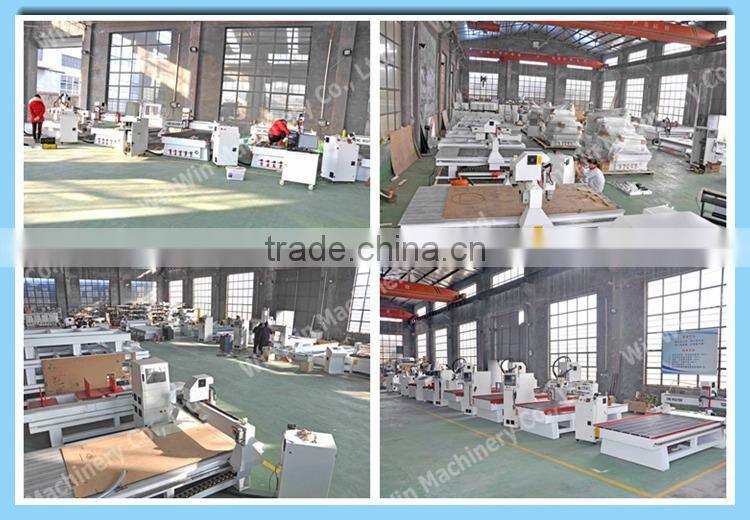

8. Factory
