Product Details
| Condition | New | Type | Other, ceiling stud and drywall channel forming machine | |
| Tile Type | Colored Glaze Steel | Use | Wall | |
| Production Capacity | 10-20m/min | Place of Origin | Beijing, China | |
| Brand Name | Zhongtuo | Model Number | Roll Forming Machine | |
| Power(W) | 4+4KW | Voltage | 380V | |
| Dimension(L*W*H) | 6500*1300*1100 | Weight | 4.5T | |
| Certification | CE/ISO9001 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
hat furring roll forming machine Z furring roll forming machine

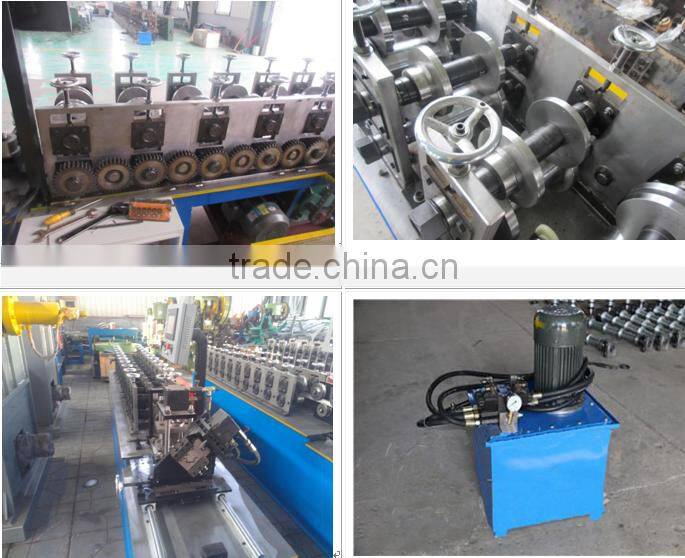

1. pictures for your reference hat furring roll forming machine Z furring roll forming machine
2. hat furring roll forming machine Z furring roll forming machine Manual decoiler→→ Feeding material into machine →Roll forming machine →Punching →Measure length →Hydraulic cutting →Finished Products
3. hat furring roll forming machine Z furring roll forming machine
3. Technical parameters
Configurations | manual decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station,Delta PLC control system, run out table | ||
| |||
Material | Raw material | Galvanized | |
Thickness | 0.45mm | ||
| |||
Manual decoiler | Inner Diameter | 450-550mm | |
Outer Diameter | max 1500mm | ||
Max Coil width | 500mm | ||
Capacity | 3T | ||
| |||
Main Forming Machine
| Forming steps | 12 rollers | |
Shaft diameter | 40 | ||
Machine frame | Memorial arch | ||
roller material | GCr12MoV quenching treatment 58-60° | ||
shaft material | 45# steel with tempering | ||
Work speed | 0-25m/min | ||
Transport | By gear | ||
Power of main machine | 4kw | ||
Type of cutting and punching | Hydraulic | ||
Cutting tolerance | ±1mm | ||
Blade and punching material | GCr12MoV quenching treatment 58-60° | ||
Cutter quantity | 1 set | ||
Working pressure | 20MPA | ||
| |||
Hydraulic System
| Hydraulic oil | 46# | |
Hydraulic power | 3kw | ||
Cutting length | As required | ||
No distorting or wasting. High level safety factor. | |||
Control Device
| Control | By PLC | |
PLC language | As required | ||
Touch screen | Delta | ||
Function | Automatic length and quantity measurement | ||
| |||
Other Spare part | Weight | About 2.5 ton | |
Dimension | 4800*800*1400 (mm) L x W x H | ||
Main body color | As required | ||
Voltage | 220V 60HZ(or as required) | ||
Spare cutting blade | One piece for one size | ||
Terms of payment: 30%T/T ,Balance to be paid before shipping after inspection.
Deliver time: 45 working days.
Warranty: 1. Support the technology all the life. And the machine broken
Because of quality, we can change the broken part for free within
one year.
2. Training: If you come to our factory,we can teach you for free.
If you need technician go foreign, the buyer need pay the cost for
visa, hotel, ticket, food and others, and buyer need pay the
technician USD80/day for salary.
3. We offer the the machine operating manual to you.

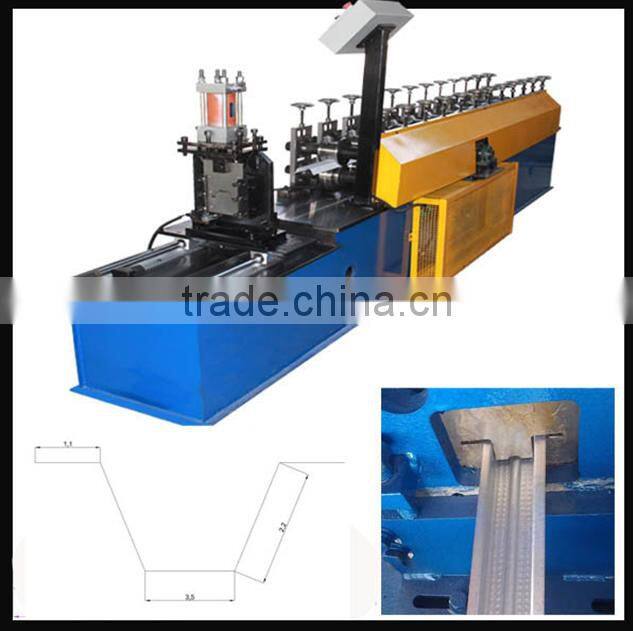

4. The photos for hat furring roll forming machine Z furring roll forming machine
