high quality electronic componenets

Specifications

1. Features:

1). PLCC (plastic leaded chip carrier) technology has been applied in our SMD production.

2). our 5050-3chips SMD products have 6PIN in all, which is good at heat dissipating.

3). we have three Luminous flux ranges for our 5050 SMD products:

18-20lm (high brightness), 16-18lm (standard brightness), 14-16lm (for colorful SMD).

2. Models Available: 5050, 3528, 3020

3. Specifications:

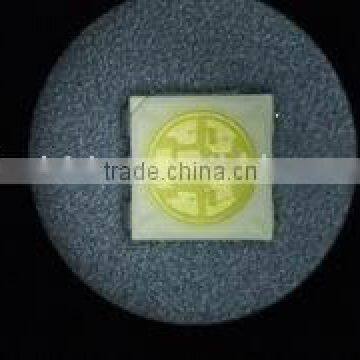

SMD LED 5050, 3Chips, all colors available

Remarks: Customaried requirements of the emitting colors and the brightness can be fully met by our engineers team.

1). Items: NST-5050-Cold White

NST-5050-Day White

NST-5050-Neutral White

NST-5050-Warm White

NST-5050-Red Color

NST-5050-Yellow Color

NST-5050-Green Color

NST-5050-Blue Color

NST-5050-RGB Color

2). Emitting Color:

Cold white, Day White, Neutral white, Warm white, Red, Yellow, Green, Blue, and RGB

3). Luminous intensity (MCD):

CW: 5200-6000-7300MCD NW: 5200-6000-7300MCD

WW: 4400-5860-7300MCD R: 1000-1550-1960MCD

Y: 1200-1550MCD G: 1500-2400-3200MCD

B: 900-1220MCD RGB: 300-380 600-760 1000-1220MCD

4). Color temp (K) and Wave length (nm):

CW: 7500-13000K NW: 5000-7500K

WW: 2500-5000K R: 620-635NM

Y: 585-590NM G: 500-505 520-530NM

B: 465-475NM RGB: 465-475 520-530 620-630NM

5). Forward Current (mA): 60mA

6). Dimension: 5.4*5.0*1.6mm

7). viewing angle: 120 degree

8). packing: 1000pcs/Vacuum reel package

4. Applications:

1). Signal and symbol indicators

2). Illuminations (Illuminated advertising and general lighting)

3). Amusement machines

4). LCD backlight

5). Indoor and outdoor displays

6). Automobile interior lighting

5. Delivery terms and promised service:

1). Western Union and T/T in advance are the 2 popular payments for us.

2). we can make a fast delivery within a week.

3). Specific technical datasheet in English version for each SMD model are available, and we are willing to send these datasheet for your close inspection.
