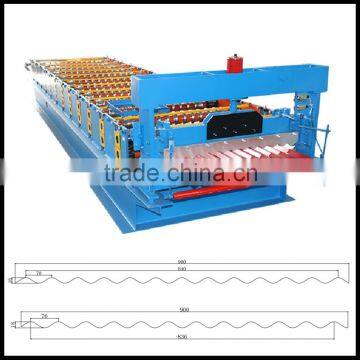

aluminium corrugating machine, corrugated roof tile roll forming machine

Aluminium corrugating machine, corrugated roof tile roll forming machine

As for this kind of corrugating machine, we have several profile for customers' choosing. The width can be 914,1000,1200,1220,1250mm. More importantly it is a kind of customized machine, we can design the machine, design the profile as per our customers' request. You just need to tell us the fame type, cutting type, speed, drawings profile you want. Then it is our work to do all that well for you.

Product Description

Profile:

Processing material: colored steel plate, galvanized plate, or aluminum plate

Material thickness: 0.3---0.8mm

Material hardness: 195 mpa---350 mpa

Material width: as per your requests

Step length:150mm---380mm(adjustable)

Forming speed: 8-12m/min

Working speed :3-5.5m/min



Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way.

Passive uncoil pulled by roll forming system

Loading capacity:5T

Uncoiling width:1250mm

Inner diameter: 450-550mm

Entry Beach

Usage:Put the raw material(steel plate) through the beach to manufacture and process,

it can guarantee that the products are neat, parallel and everything is uniformity.

Please refer to the equipment regulation to know the function of locate angle iron.

Main roll forming machine

Length of the main part:about 7200*1450*1500mm

Weight of main part:4.2T

Voltage:380V/50HZ 3Phase

Roller fixer:middle plate

Frame:350H steel

Drive mode:chain

Material of rollers:45#steel, surface hard chromium plating.

Material of shafts:45#steel

Diameter of shafts: φ 70mm

Number of rollers: 16 rollers

Main power:5.5kw

Material of mould:Cr12 quenched

Power supply:hydraulic power

Cutting device

Counter

One counter gauges length, pulses, and decides length. Omron encoder for length measurement.

Products receiving tables

1. It adopts welded steel and supported roller to transmit the products.

2. 3*0.9*0.6 m

Controlling device

1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with

stability, precision and lifetime.

2.Other electric element are Delta

3.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

Hydraulic

(include a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves )

Spare parts ( for free)

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;

2. Rubber mat 1 pcs;

3. Bolt spanner 1 pcs

Hydraulic pump

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12 quenched

Power supply : hydraulic power

Components:It contains one set of blade, one hydraulic tank and one cutter machine.

Power:5.5kw
