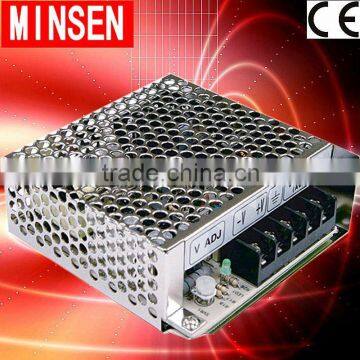

15W 220v single output S-15-24V 0.7a power supply

FOB Price

USD $2 - $30 / Piece

10 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.S-15-24 Single Output Switching Power SupplyUniversal AC 2.input/Full rangeProtections: Short circuit/Over load

15W Single Output Switching Power Supply
AC input range selected by switch
Protections: Short circuit/Over load

Cooling by free air convection
100% full load burn-in
High reliability

MODEL	S-15-5	S-15-12	S-15-24
OUTPUT	DC VOLTAGE	5V	12V	24V
RATED CURRENT	3A	1.3A	0.7A
CURRENT RANGE	0 ~ 3A	0 ~ 1.3A	0 ~ 0.7A
RATED POWER	15W	15.6W	16.8W
RIPPLE & NOISE (max.) Note.2	50mVp-p	50mVp-p	100mVp-p
VOLTAGE ADJ. RANGE	4.75 ~ 5.5V	10.8 ~ 13.2V	21.6 ~ 26.4V
VOLTAGE TOLERANCE Note.3	±2.0%	±1.0%	±1.0%
LINE REGULATION	±0.5%	±0.5%	±0.5%
LOAD REGULATION	±1.0%	±0.5%	±0.5%
SETUP, RISE, HOLD TIME	200ms, 100ms, 30ms at full load
INPUT	VOLTAGE RANGE	85 ~ 132VAC / 170 ~ 264VAC selected by switch 240 ~ 370VDC
FREQUENCY RANGE	47 ~ 63Hz
EFFICIENCY (Typ.)	65%	68%	72%
AC CURRENT	0.5A/115VAC 0.25A/230VAC
INRUSH CURRENT (max.)	COLD START 15A/115VAC 30A/230VAC
LEAKAGE CURRENT	<0.5mA/240VAC
PROTECTION	OVERLOAD	105 ~ 135% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is reoved
ENVIRONMENT	WORKING TEMP.	-10 ~ +60ºC (Refer to output load derating curve)
WORKING HUMIDITY	20 ~ 90% RH non-condensing
