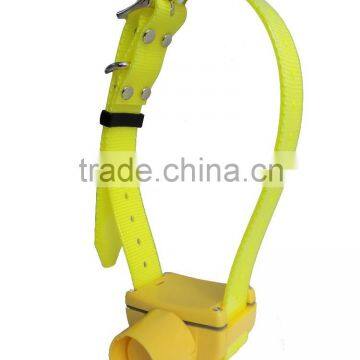

Waterproof and Rechargeable beeper specialized dog collars hunting collar

Waterproof and Rechargeable beeper specialized dog collars hunting collar

Features of specialized dog collars:

1.The unit size:L*W*H = 66*70*36mm

2.8 operating modes and 4 selecting tones for Pointing dog & Moving dog

3.LED power indication

4.Powered by 3V lithium CR123A battery

5.Water-proof design

6.Low power consumption

7.Locate one to four dogs at the same time

Operation:

A:Before use

1. Recharge the collar well before use.(reference to the recharge battery)

2. Open the“ON/OFF”switch to“ON”status (reference the“ON/OFF”switch)

B:How the Beeper works

When on,and according to the mode selected,the collar may emit beep sounds when your dog is not moving,if it has been still for at least 5 seconds.As soon as the dog moves,it is considered moving

C:Switching on and Switching off the beeper collar

1.Switching on the collar

To switch on the beeper collar,Press and hold the On/Off button for 1 second.When you heard 2 beeps and see the red LED flash,then release the on/off button,the collar is power on.(Note: You press and hold on/off button for 2 seconds when turning it on,You can enter changing operating modes)

2.Switching off the collar

Press and hold on/off button for 1 second when the collar are in working status,you can hear one long beep and see red led,then release on/off button.The collar is power off.

D: Changing operating modes and selecting tones

BP-118L Beeper Collar allows you to locate one to four dogs at the same time (with four different tones).Either when they are pointing,or when they are moving or pointing.

To change the tone emitted by your Beeper Collar or to change operating modes,when turning it on, you need to press and hold the On/Off button for 2 seconds,The beeper enter Changing Operating Modes.

The collar emits a number of beep sounds (from 1 to 8) to show operating modes from 1 to 8

Modes 1 to 8 run through as long as you press and hold on the On/Off button

Release the On/Off the button as soon as you have reached the desired mode: the collar will memorize the configuration chosen.The next time you turn it on,BP-118L will be in the mode you selected last.

The table below shows how Beeper Collar works according to the mode selected:

E. Setting the movement detection sensitivity

When leaving the factory, the collar is set to an intermediate position (medium sensitivity).It is up to you to adjust the sensitivity of your beeper to your dog’s behavior and to the results you want to obtain.

To change the movement detection sensitivity,you need to remove the Plastic Casing of the collar in order to get access to the sensitivity adjustment screw located inside the collar.

F: Adjusting sound volume

When leaving factory, the collar is set at the maximum volume,the system is set at the maximum stop. You can not turn beyond to increase sound volume.

It is up to you to adjust your Beeper Collar sound volume to the level you wish.

To adjust the volume of your collar,you need to lift the Plastic Casing in order to get access to the adjusting screw located inside the collar.

To decrease the sound volume of your Beeper Collar,turn the volume adjustment screw clockwise to the minimum sound volume.

To increase the sound volume of your Beeper Collar,turn the sound volume adjusting screw counter-clockwise to the maximum sound volume.

Note:The adjustment system has a stop for the minimum sound volume and a stop for the maximum sound volume (maximum 1/2 turn).

Pictures:

1.We're R&D factory specialized in dog training collar for 7 years.

1.All of our products with 2 years warranty. Each pcs go through QC before shipment!And after sales    department will follow up.

2.Logo printing and customize package is acceptable.

3.We have professional searching team,any new products to inquire,welcome for further discussions.

4.OEM and ODM are highly welcomed.

1.Are your company a trading one or a factory?

   Manufacturer,welcome to visit our company

2.How long have your company run on?

   7years for dog training products

3.After an order is placed, when to deliver?

   a.In stock,will shpping in 3 days

   b.Out of stock,it will be decided by the time of the factory production

4.Do your company accept customization?

    Yes,welcome OEM and ODM. Our advantage is OEM and ODM

5.Do your products have warranty?

   Yes,all of our products with 2 years warranty
