Home > Products > PVC banners > Coated blockout 610gsm 500DX500D 28X28

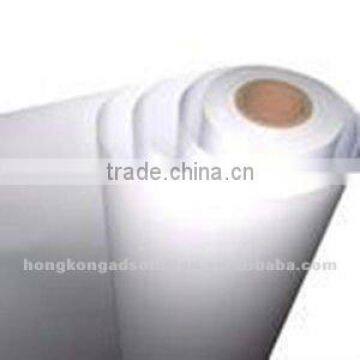

Coated blockout 610gsm 500DX500D 28X28
- Shanghai
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OEM | |
| Model Number | Coated blockout 610gsm 500DX500D 28X28 |
Product Description
Specifications
Coated blockout 610gsm 500DX500D 28X28COATED BLOCKOUT 610 GSM
Item | Unit | Value | Test Method | |
Base Fabric | Denier | 500DX500D | (High tenacity yarn) 100%PES | |
Construction | Weaving/inch | 28X28 | / | |
Weight of fabric | Gsm/m2 | 122±10 | DIN53352 BS3424 Method5B | |
Weight of PVC | Gsm/m2 | 488±10 | DIN53352 BS3424 Method5B | |
Total weight | Gsm/m2 | 610±20 | DIN53352 BS3424 Method5A | |
Thickness | mm | 0.48±0.02 | DIN EN ISO 2286-3 | |
Width | cm | Up to 320 | / | |
Tensile Strength | N/5cm | Warp | 1850 | DIN53352 BS3424 |
Weft | 1550 | |||
Tearing Strength | N | Warp | 235 | DIN53356 BS3424 |
Weft | 220 | |||
Adhesion | N/5CM | 80 | DIN53357 BS3425 Method9B | |
Temperature Resistance | °C | -20~70 | DIN53357 BS3425 Method10 | |
Lacquering | If you need, we can lacquering with: 3555 (Acrylic), 3483 (Acrylic), 7584 (PVDF) | |||
Flammability | We can reach: B1, B2, M2, NFPA701, DIN75200, etc. | |||
LOW CADMIUM & HEAVY METALS | We can reach: EN71-3 | |||
Conclusions and Announcements | Declaration: Please choose products suitably according to relative provisions or industrial standards. The company bears the responsibility for the specified technical and performance data on this page only. The company is not responsible for any other liability. (The technical data on this page is calculated on average, and ±5% tolerance is acceptable)
Remarks : “M” represents Matte surface | |||
