CHC X91+ Gnss Rtk Gps Group Dual Frequency Satellite Receiver
- Shanghai

You May Like
-


CHC X91+ Surveying Device Leica Gps Land Survey Device
 -


CHC I80 Trimble BD930 Trimble Motherboard RTK High Accurancy Gnss
 -


CHC CGO Software for Land Survey, Geomatic Software
 -


CHC Digiterra Explorer 7 Software, Survey Software
 -


CHC Carlson SurvCE Only Data Collection Software, Rtk Software
 -


CHC Carlson SurvCE Famous Gps Rtk Software Quality Choice

Product Details
| Place of Origin | Shanghai, China | Brand Name | CHC | |
| Model Number | X91+ |
Product Description

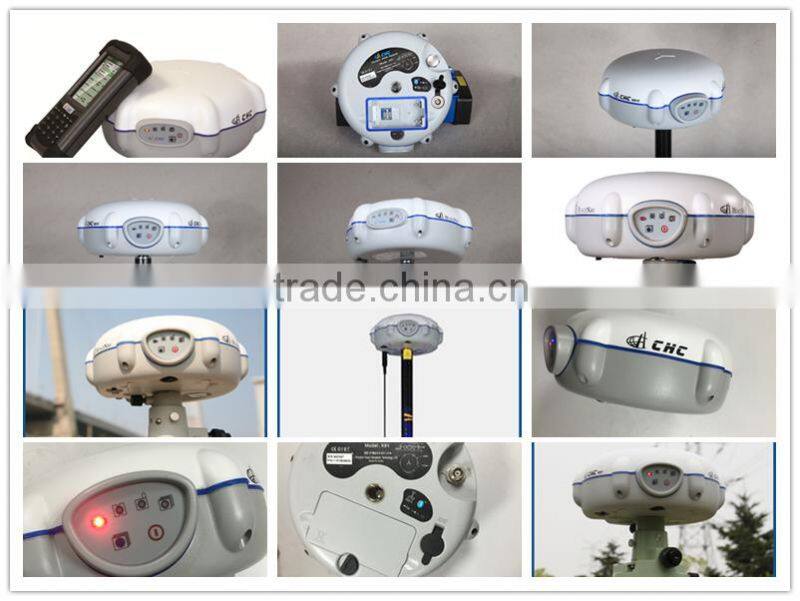

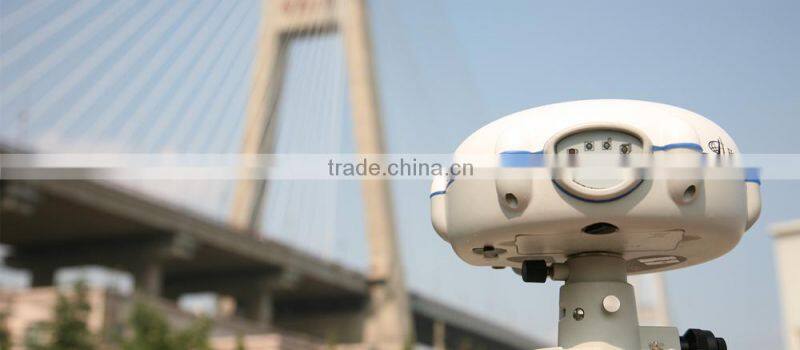

CHC X91+ gnss rtk gps group dual frequency satellite receiver
The CHC X91+ GNSS RTK receiver is a compact GPS receiver designed for high accuracy and productivity even in harsh environments. Powered by 220 channels core engine, supporting GPS GLONASS, Galileo and China BeiDou constellations, the X91+ GPS RTK receiver provides a cost-effective solution to any surveying project.
Easy-to-use, efficient and intuitive work flow, designed for advanced network RTK survey, compact and rugged, the X91+ is the perfect choice for demanding survey applications.
CHC X91+ gps rtk receiver kit
| X91+ Kit w/ Internal Rx: 430-450 MHz | ||
| 0505 010 001 | X91+ Kit w/ Internal CHC Rx: 430-450 MHz | 1 |
| 1191 806 736 | X91+ GNSS Receiver | 1 |
| 0402 000 027 | UHF Whip Antenna | 1 |
| 0406 000 010 | Transport Hard Case | 1 |
| 0403 000 038 | GPS to PC Data Cable | 1 |
| X91+ Kit w/ Internal Rx: 450-470 MHz | ||
| 0505 010 002 | X91+ Kit w/ Internal CHC Rx: 450-470 MHz | 1 |
| 1191 806 726 | X91+ GNSS Receiver | 1 |
| 0402 000 006 | UHF Whip Antenna | 1 |
| 0406 000 010 | Transport Hard Case | 1 |
| 0403 000 038 | GPS to PC Data Cable | 1 |
| X91+ Kit w/ Internal Tx/Rx: 410-470 MHz | ||
| 0505 010 003 | X91+ Kit w/ Internal Tx/Rx: 410-470 MHz | 1 |
| 1191 806 826 | X91+ GNSS Receiver | 1 |
| 0406 000 010 | Transport Hard Case | 1 |
| 0403 000 038 | GPS to PC Data Cable | 1 |
| 0101 060 019 | Internal Tx/Rx Datalink | 1 |
| 0404 000 047 | Extension Pole | 1 |
| 0402 000 006 | UHF Whip Antenna | 1 |
| 0403 000 108 | External Power Cable | 1 |
trimble gps
Fully Integrated
Built-in GNSS engine, antenna, UHF and GSM/GPRS modules, Bluetooth® communication in one single unit to make your everyday work simple.
Compact and light weight
The size of 180 mm x 85 mm (3.3 in x 7.1 in) makes the X91+ only weights 1.35 kg (48 oz) with battery.
Optimized for Network GPS RTK
Connection to GNSS RTK Networks is made easy and benefits from the unique X91+ auto-connect feature.
Compatibility
The X91+ RTCM compliance with major GNSS brands allow a trouble-free integration into an existing pool of survey instrument.
Competitive and Reliable
By combining decades of positioning and surveying know-how, the X91+ is one of the most powerful GNSS solutions, with no compromise with quality but at an affordable price for every surveyor.
KEY FEATURES
  |
  |
  |
  |
  |
  |
gps r
CHC Navigation are dedicated to providing reliable and competitive GNSS solutions with high performance.
Most of CHC products have achieved IP67 dustproof and waterproof level.
tk
 GNSS Characteristics  | · 220 channels with simultaneously tracked satellite signals − GPS: L1C/A,L2C, L2E, L5 − GLONASS: L1C/A, L1P, L2C/A, L2P − SBAS: WAAS, EGNOS, MSAS − Galileo: GIOVE-A and GIOVE-B · Advanced multipath mitigation · Low noise carrier phase measurement  |
| Performance specifications | · Real Time Kinematics (GPS RTK) − Horizontal: 10mm+1ppm RMS − Vertical: 20mm+1ppm RMS − Initialization time: 10s − Initialization reliability: typical >99.9% · Post Processing Static − Horizontal: 2.5mm+1ppm RMS − Vertical: 5mm+1ppm RMS − Baseline Length: ≤300km  |
Communications  | · 1x RS232 serial port and 1x high-speed USB gps rtk · Integrated GSM/GPRS modem · Integrated Bluetooth ® communications port · Optional radio modem − CHC Datalink: 1W-20W adjustable − Bandwidth: 410-430 / 430-450 / 450-470 Mhz Protocols gps rtk − RTCM2.1, RTCM2.3, RTCM3.0, CMR, CMR+ input and output − NMEA0183 and GSOF outputs − RINEX and HCN outputs for GPS raw data  |
Physical  | · Size (H×D): 80mm×180mm · Weight: 1.25Kg with battery · Working Temperature: -30 °C − +65 °C · Storage Temperature: -40 °C − +75 °C · Humidity: 100% condensation · Dustproof: IP67 · Waterproof : protected from temporary immersion to depth of 1 meter floats. · Shock : survives a 2−meter drop on to concrete  |
Electrical  | · Typical power consumption: 2.6W · Battery capacity : 2200mAh · Operating times on internal battery : 5 hours · External power input : 9-18VDC  |
    Software (optional)  | · CHC’s Landstar field data collection software  |
X91+ is the best GPS GLONASS Receiver you can have for the moment. gps rtk
CHC provides the most reliable packaging to perfectly protect the equipment from transportation damages.
 CHC has the latest production facilities, professional production lines and strict testing requirement to make sure every device on your hands is with good quality and can be trusted.
r
Founded in 2003, CHC designs, manufactures and markets a wide range of professional GPS/GNSS solutions in more than 100 countries. Headquartered in Shanghai (China) and with offices worldwide CHC is a leading GNSS manufacturer with a strong international presence and employs more than 800 professionals worldwide.
 Exhibition & Seminar


Q: What is the Payment Terms?
A: T/T in advance.
Q: How about the Shipping Date?
A: Normally within 7 working days after payment received.
Q: How about the after-sales service?
A: We have Technical on-line Support Team will responded any questions, if you have.
Q: How to buy this Product?
See below contact information. Or you're alway welcome to contact us by leaving messages to Alibaba Trade Message.
CHC X91+ gnss rtk gps group dual frequency satellite receiver
Please feel free to contact us if you have any question. We will always dedicate the best service to you.
