  Autoclave introduction:

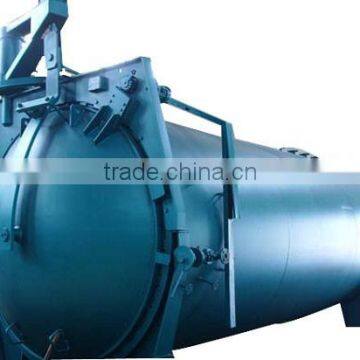

Autoclave Machine is a big container-like pressure equipment. AAC machine is used to steam and cure the green body of sand lime brick, fly ash brick, aerocrete block, new and light wall materials. Currently, besides using in silicate building materials, autoclave machine can also be used in industries like: chemical, medicine, rubber, lumber, gypsum,galss, insulating materials, textile and war.

Autoclave Application:

Autoclave is a high temperature and high pressure equipment in intermittent operation.

It is widely used in sand-lime brick, fly ash brick, silicate concrete, Cement products for steaming support, so that speed up the hardening process for products. That will help users shorten the cycle for manufacturing, accordingly, it will improve economical efficiency. Autoclave also can be used in medicine, chemicals, textiles, timber industries and so on.

Autoclave Features:

.

Security chain device through provincial-level expert group identified.

.Advanced technology, quality and safety use.

.Reasonable product structure and easy installation

.Low investment cost with a complete set.

Basic Introduction of autoclaved aerated concrete:

Autoclaved Aerated Concrete (AAC) is a siliceous material (sand, fly ash and silicon tailings such as waste porcelain clay, stone processing waste materials, blast furnace slag, etc.) and calcareous materials (lime, cement) as the main raw material, mixing fat gas agent (aluminum powder), by ingredients, mixing, casting, pre-raising, cutting, autoclave, curing process made of light porous silicate products, because by the hair contains a lot of gas even after the small pores, hence the name of aerated concrete.

Production Process of Aerated Concrete:

According to the category and quality of raw material, and the features of equipment, the aerated concrete can be manufactured in different processes. Generally, add water to ash, silica sand or slag and crush them into slurry; then add powdery lime, cement of right amount, plaster, vesicant, foam stabilizer, and mix and pour it to mould frame; after curing, foaming and hardening, cut it into blocks and boards in different specifications; finally, transport it into pressure steamer with steam-curing cart, and get the light cellular concrete after steam-curing with high temperature and pressure.

Main Equipments in Autoclave Bricks Making Machine/brick making machines for sale :

Material-milling Equipments:

a. Crusher: Lime, gypsum, and such kind of bulk material need to be crushed as the first step in AAC Plant.

b. Miller: The AAC material must be fully grinded in order to make better reaction. Ball Mill is used widely, it has two types: dry and wet, can be chosen upon requirement.

Steam Curing AAC Wall Block/Panel Equipments, Autoclaved Aerated Concrete Brick Making Machine

Material Metering Equipments: Computer Control Automatic Metering System is commonly used as measurement of raw materials.

Steam Curing AAC Wall Block/Panel Equipments, Autoclaved Aerated Concrete Brick Making Machine

Material mixing and casting equipments: Mixer, it’s the slurry mixing machine, also is slurry casting machine.

Steam Curing AAC Wall Block/Panel Equipments, Autoclaved Aerated Concrete Brick Making Machine

Cutting Machine: the AAC blank is formed after casting and pre-curing, as the size is too large, it must be cut to achieve the required product size.

Steam Curing AAC Wall Block/Panel Equipments, Autoclaved Aerated Concrete Brick Making Machine

Autoclave: Autoclave is a device for silicate hydration products to get physical and mechanical properties.

Boiler: the boiler supports for the autoclave and pre-heat furnace and other facilities with heat.

Steam Curing AAC Wall Block/Panel Equipments, Autoclaved Aerated Concrete Brick Making Machine

Auxiliary Equipments:

a. Mould Frame, Mould Bottom and Mould Car, they composed together to form the Casting Mould, which is the main forming equipments in AAC Production Line.

Steam Curing AAC Wall Block/Panel Equipments, Autoclaved Aerated Concrete Brick Making Machine

b. Hardening Car, Ferry Cart and Hangers, they must be equipped as auxiliary equipments in autoclave curing system.

Steam Curing AAC Wall Block/Panel Equipments, Autoclaved Aerated Concrete Brick Making Machine

c. Block Separator. The separator is a special machine whose function is to separator the plaste block into piece,in order to be transfered and used.

Steam Curing AAC Wall Block/Panel Equipments, Autoclaved Aerated Concrete Brick Making Machine

d. Block packing machine.

Company Overview

Zhengzhou Dongfang Heavy Machinery Co., Ltd is one high tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.

Till now, our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry. With the development of our DONGFANG, we would like to help more and more customers start their business in mining and construction industries, offer them the best solution, much more advanced machinery and better service.

If you'v got a brick factory and you want to improve your current formual and save the cost, our professional team are willing to give you the best suggestion and technical support.

If you want to join in this filed, our professional team would like to offer you the best guidance and give you a full appreciation about our machine and the the feasibility of its investment.

We sincerely welcome you to visit our factory and discuss the feasibility of cooperation.

If you are interested in our China used industrial autoclave,steam autoclave for South Africa AAC plant,please feel free to contact with us at any time
