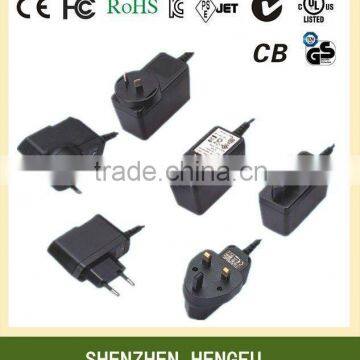

CCC 19510 Certificated 12.6V 1.2A 1.5A LED Power Supply

12.6V LED POWER SUPPLY

Application

Widely used in medical,digital,communication,security,lighting, DVD players, LCD and TFT TVs, MP4 players, digital cameras, surveillance video camera,other A/V products,cell phone charger,network information,security equipment,small home appliances,etc.

Electric specification:

1. input voltage :AC100V-240V
2. output voltage:DC12.6V
3. output current:1.2A-1.5A

Features:

1. low consumption:0.3(up to CE standard)
2. small volume ,light weight ,easy to carry
3. Defect rate:0.3%

Specifications

Our products have the advantages:
1.easy to carry and compact size
2.two years warranty

Products information

1. 1. Name: FY126yyyy
2. 2. Frequency:50/60HZ(47/63HZ)
3. 3. Output power :15W-18.9W
4. 4. Output voltage: 12.6V
5. 5. Output current : 1.2A-1.5A
6. 6. Line regulation : ±1%
7. 7. Load rang : ±5%

Products Protection

1.Insulation resistance: DC 500V/100MΩ

2.Overvoltage protection:120%MIN

3.Overcurrent protection:120%MIN

4.Dielectric Strength test :AC 3000V/5MA

5.Operating temperature:0-40°C

6.Storage temperature:-20-85°C

7.Operating Humidity:5-95%ROHS

8.No Load Power Consumption:<0.3W

9.Efficiency:70% Min

10.Storage humidity: 5-90%RH

11.Working Temperature:0-40oC Max

12.Storage temperature:-20-+80C

13.input current(max): 0.53A

14.Short Circuit Protection

15.Over Current Protection

16.Over Voltage Protection

Safty certificates

FCC,GS,CE(LVD/EMC),RoHs,PSE,SAA,CCC,C-tick,UL,KC etc.

Warranty & Test

1.two years warranty

2.Average fault-free time 50000 hours at 25°C.

3.Burn-in test: the products have been tested by 4 hours under normal input and 80-100% rated load at 40°C±5°C

 CERTIFICATION

100pcs/carton
size of carton:42.5*33.5*25CM3
