- Guangzhou Engineering Plastics Industries (Group) Co., Ltd.
-
Guangzhou, Guangdong, China
- Main products: Nylon Gear, POM Gear & Gear Rack, PA6 Bushing, Nylon Pulley, UHMW-PE1000 Guide, PE-UHMW Screw, PTFE Seal Ring, UHMW-PE Sheet, UHMW-PE Rod, Nylon Sheet, Nylon66 Rod, POM Sheet, POM Rod, PTFE Sheet, PVDF Sheet, PEI Sheet, PPS Sheet, PEEK Sheet, PAI Sheet

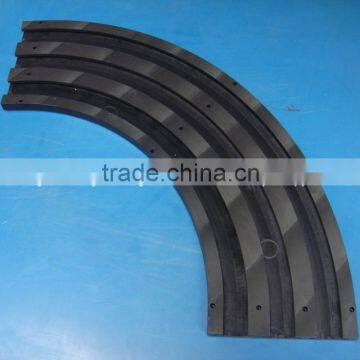

Black HDPE chain guide
- Guangzhou Port China
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Guangzhou Engineering Plastics | |
| Model Number | PE bending guide | Material | PE | |
| Thickness | 2~300mm | Size | 1200x2400mm, 1200x5000mm |
Product Description
Specifications
Black HDPE chain guide1.Semi-crystalline
2.High toughness
3.Good low temperature property
Black HDPE chain guide
HDPE (High Density Polyethylene)= LDPE Grade is a semi-crystalline, thermoplastic engineering material with high toughness and good low temperature properties.
The main characteristics of HDPE (High Density Polyethylene) Grade are:
- Tough
- Very low water absorption
- Good sliding properties
- Resistant to dilute acids, cleaning agents, numerous solvents
- Very good electrical insulation
- Difficult to bond
- Easily welded
- Low density
The preferred field of use for this product are; mechanical engineering, transport and conveyor technology, electrical engineering, general engineering, household appliances, plant construction, and the food industry.
Popular applications for the use of HDPE (High Density Polyethylene) Grade are:
- Chemical apparatus
- Plugs
- Seals
- Food processing
- Insulators
- Low load rollers
- Pallets
Performance indicators
Property | Item No. | Unit | Value | |
Mechanical Properties | 1 | Density | g/cm3 | 0.94-0.96 |
2 | average molecular weight | g/mol | More than 6.0 million | |
3 | Tensile strength (23°C in air) | MPa | 22 | |
4 | Breaking strength | MPa | 42 | |
5 | Tensile strain at break | % | 600 | |
6 | Charpy impact strength (notched) | mJ/mm2 | No break | |
7 | Ball indentation hardness | N/mm2 | 42 | |
8 | Shore D hardness | -- | D65 | |
9 | Abrading(sand slurry experiment) | -- | 100 | |
HDPE/ LDPE guide HDPE/ LDPE guide HDPE/ LDPE guide HDPE/ LDPE guide
HDPE/ LDPE guide HDPE/ LDPE guide HDPE/ LDPE guide HDPE/ LDPE guide
HDPE/ LDPE guide HDPE/ LDPE guide HDPE/ LDPE guide HDPE/ LDPE guide
HDPE/ LDPE guide
