Rubber Crusher Machine for Rubber
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | DOUBLEELEPHANTS | Model Number | XKP-400/XKP-560 | |
| Voltage | 380V/50 HZ | Power(W) | 55~90KW | |
| Dimension(L*W*H) | 5120*2300*2000 | Weight | 19KGS | |
| Certification | ISO | Warranty | 1 YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

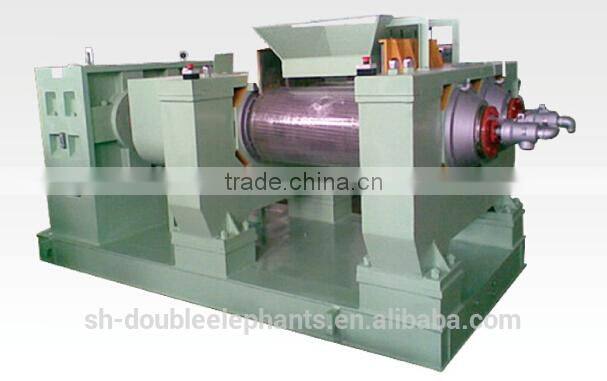

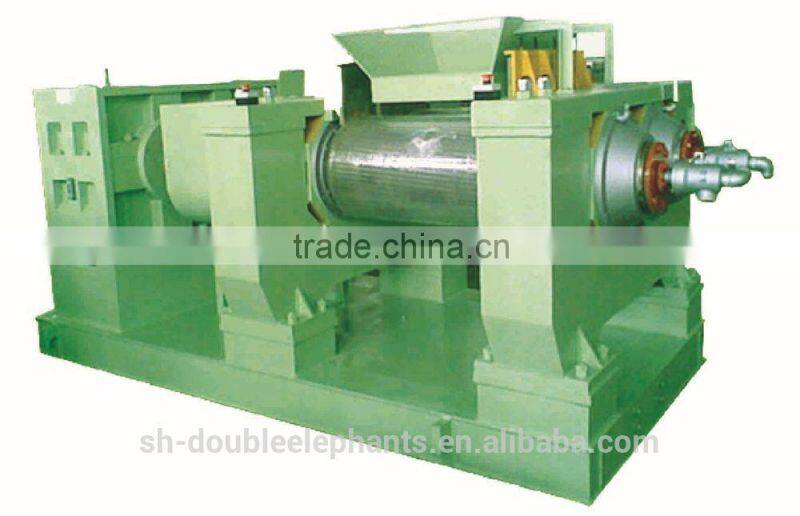

Two rollers rubber crushing machine,Used tire recycle machines,High output rubber crusher
Specification/Type | Roll diamater *Length(mm) | Front roller liner speed(m/min) | Speed ratio | Capacity(kg/h) | Motor power(KW) | Overall dimension(LxWxH)(mm) | Weight(t) |
XKP-400 Double smooth | 400*600 | 17.15 | 1:1.38 | ≥28 mesh 70-110 | 55 | 3520*1710*1850 | 7.7 |
XKP-400 Single smooth | 400*600 | 17.15 | 1:1.38 | 3-5 mesh 600-800 | 55 | 3520*1710*1850 | 7.7 |
XKP-400 Double flutes | 400*600 | 17.15 | 1:1.38 | 3-5 mesh 600-800 | 55 | 3520*1710*1850 | 7.7 |
XKP-560 Double flutes | 560/510*800 | 25.6 | 1:1.428 | 3-5 mesh -2000 | 75 | 5120*2300*2000 | 19 |
ZKC-560 Double flutes | 560/510*800 | 25.6 | 1:1.55 | 3-5 mesh -4000 | 90 | 5120*2300*2000 | 19 |
FEATURES

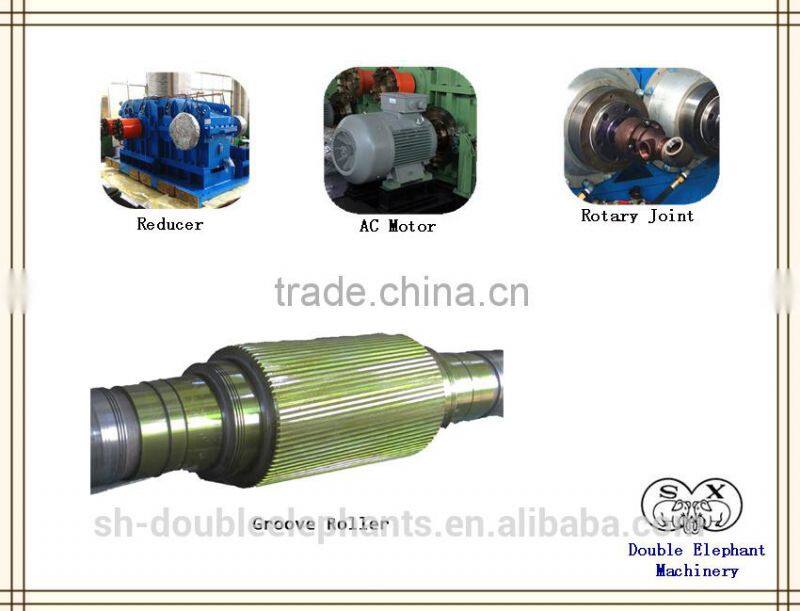

1.The roll is made of chilled cast iron with vanadium and titanium alloys.The roll face is hard and anti-wear.(Or choose high grade steel with hard alloy welded on the surface.)The back roll is fluted.The internal cavity of the roll is processed to make temperature well proportioned on the roll surface.
2.It is equipped with an overload protection device to prevent the major components from being damaged due to overloading.
3.It is equipped with an emergency device.When an emergent accident happens,just draw the safety pull-rod,and the machine will stop immediately.It's safe and reliable.
Shanghai double elephants rubber and plastic machinery co., LTD., founded in 1994, specializing in the production and distribution group of companies affiliated factory production of rubber and plastic machinery, PVC film, artificial leather In addition, we also canaccording to user requirements design and manufacture non-standard equipment.We export to more than 40 countries and regions, deeply user high praise.
GUARANTEE & AFTER-SALE SERVICE
1,One year guarantee for whole machine except tubes
2,24 hours technical support by mail
3,service station in your country, quick response
Two rollers rubber crushing machine,Used tire recycle machines,High output rubber crusher
