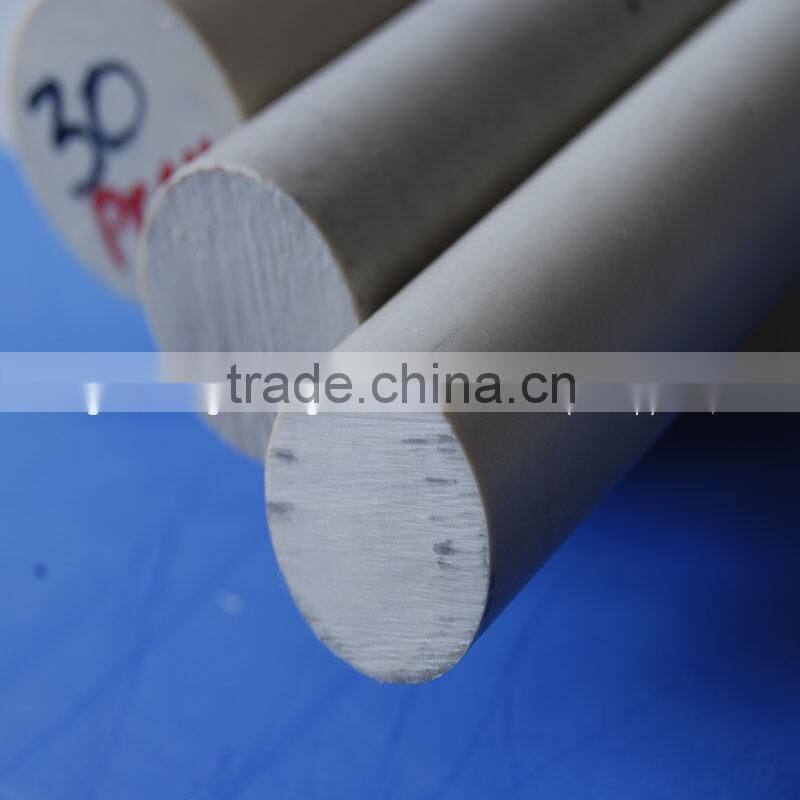

Free Sample Self Lubrication PEEK-GF30 Plastic Rod

Guangzhou factory wholesale Engineering PEEK-GF30 plastic rod

PEEK is a kind of heat-resistant, high performance thermoplastic special engineering plastics. It has good mechanical properties and chemical resistance, abrasion resistance, and hydrolysis resistance properties etc.; it has a light proportion and self-lubricating properties. Due to very good processing properties, it can be filled with carbon fiber and MoS2 etc. to improve lubrication performance and mechanical strength further.

PEEK engineering plastics have a broad application space related to aviation, machinery, electronics, chemical industry, automobiles, and other high-tech industry, mechanical parts and accessory can be manufactured in stringent requirements, such as gears, bearings, piston rings, supporting ring, sealing ring (letter), valves, and other wear circle.

High temperature resistant Low Noise Resistance to fatigue PEEK-GF30 rod

Mechanical properties Low Noise PEEK-GF30 rod

Self lubrication Resistance to fatigue PEEK-GF30 rod

The chemical resistance corrosion resistance PEEK-GF30 rod

PEEK Performance table:

PEEK materials of excellent performance is mainly manifested in the following aspects:

1. Heat-resistance
PEEK has a higher glass transition temperature and melting point (334℃). It is one of the reasons that it can be a reliable application in the requirement of the heat. Its heat load variable-temperature can be 316℃, continuous use temperature is 260℃.

2. Mechanical Properties
PEEK is the plastic that strikes a balance between toughness and rigidity. Especially, it has an excellent fatigue resistance against alternating stress that is the most talented of all plastics, and it can be comparable with alloys.

3. Self-lubricating
PEEK has outstanding sliding characteristics in all plastics; it is suitable for stringent requirements for low coefficient of friction and resistance to friction used. Especially, the self-lubricating properties of PEEK will be better if it is modified by carbon fiber and graphite mixed in the proportion of each of them.

4. Chemical Resistance (corrosion resistance)
PEEK has excellent chemical resistance. In ordinary chemicals, it can be dissolved or damaged only by concentrated sulfuric acid; its corrosion resistance is similar to those of steel and nickel.

5. Flame Retardant
PEEK is a very stable polymer. The 1.45mm thick samples can achieve the highest standard of fire retardant without adding any fire retardant.

6. Stripping Resistance
PEEK has good stripping resistance; therefore, it can be made into thin wires or electromagnetic wire coating, and it can be used in harsh conditions.

7. Fatigue Resistance
PEEK has the best fatigue resistance among all resins.

8. Radiation Resistance
PEEK has a very strong γ irradiated resistance, which is stronger than the radiation resistance of polystyrene, which is the best one among generic resin. It can be made into high-performance wiring that can still make good insulation capability when γ irradiation is at doses of 1100Mrad.

9. Hydrolysis Resistance
PEEK and its composites will not be affected chemically by water and high-pressure steam. The products that are made from this material will maintain the outstanding characteristics in continuous use in high temperature and high pressure water.

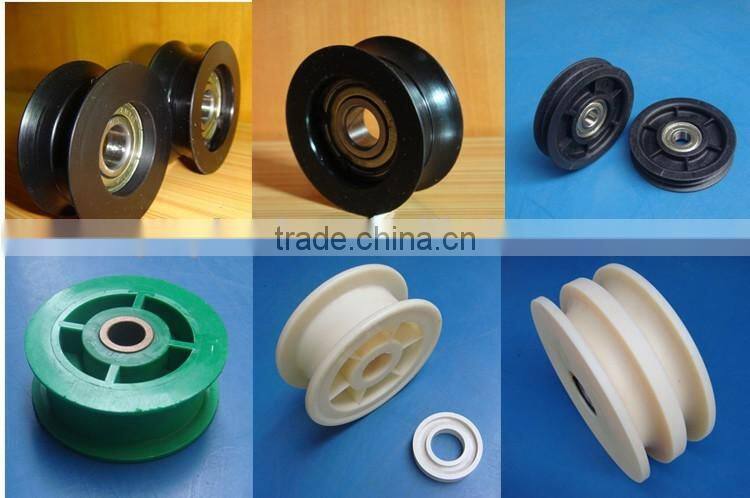

Plastic sheave

1. Rich industry experience since 1988.

2. Wide arrange product line, including plastics sheet/rod/parts/accessories: MC NYLON, OIL NYLON, POM, UHMW-PE, PU,PSU,PMMA, PETP, PC, PTFE, PVDF, PPS, PEEK, PAI, PI, PEI ect.

3. Manufacture, design and processing service as per your demand.

1.A: What’s the size of plastics sheet?

   B:Nylon sheet:Thickness*Width*Length:20-100*1000*2000mm
       UHMW-PE sheet:Thickness*Width*Length:20-100*1000*2000mm; 20-100*1250*3130mm; 20-100*1250*4250mm
     POM sheet:Width*Length:1000*2000mm

2. A:Can we purchase a small part of plastics sheet?
    B: Yes,you can, if we have the size you require in stock.

3. A:What color of plastics sheet?
    B: Nylon sheet:  Natural,black,blue,or according to client’s requiremnet.
         UHMW-PE sheet:  White,black,green ,bule,yellow,or according to client’s requirement.
         White,black

4. A:Can you manufacture the plastics products as per drawing?
    B: Yes,we can.

5.A: What the precision of plastic products according to drawing?
   B: Different machine with different precision,it usually around 0.05-0.1mm

6.A: What the technologies in producing plastics parts?
   B: Different products with different technologies,such as CNC machine,Extrusion,Injection

7: A:What kinds of processing machine do you have?
    B: CNC machining center,CNC lathes,Milling,Injection Molding Machine,Extruder,Moulding press
