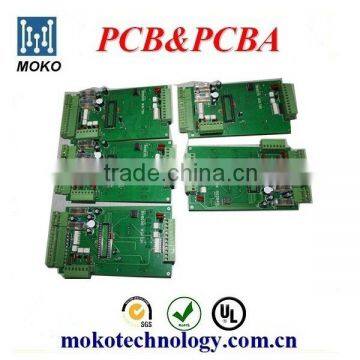

High Standard OEM Power Bank PCBA
- ShenZhen HongKong
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Moko | |
| Model Number | MKPCBAPP0342 | Base Material | FR4,Alu. | |
| Copper Thickness | 1 oz | Board Thickness | 1.6mm | |
| Min. Hole Size | 0.25mm | Min. Line Width | 0.075mm | |
| Min. Line Spacing | 0.075mm | Surface Finishing | HASL,ENIG |
Inner packing: Vaccum packing/Plastic bag
Outer packing: Standard carton packing
Product Description
Specifications
Power bank PCBAFR4 PCB with SMT,DIP soldered via smt,wave soldering
AOI,X-ray test
15 days leadtime for pcb assy
Welcome to Moko
-----over 10 years professional PCB&PCBA Manufacturer
Moko, your single point of contact for all of your raw materials, parts, and PCB assembly, also offers:
- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly
- Product Design
- Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
PCB Technical Specification
Layer | 1,2,4 or 6,upto 18 layer |
Material | FR4,CEM1,CEM3,Hight TG,FR4 Halogen Free,FR1,FR2 |
Order Quantity | 1-500,000 |
Board shape | Rectangular,round,slots,cutouts,complex,irregular |
Board type | Rigid,flexible,rigid-flexible |
Board material | FR-4,glass epoxy,FR4 High Tg,Rohs compliant,Aluminum,Rogers,etc |
Board cutting | Shear,V-score,tab-routed |
Board thickness | 0.2~4.0mm,Flex 0.01~0.25'' |
Copper weight | 0.5-4 oz |
Solder mask | Double-sided green LPI,Also support red,white,yellow,blue,black |
Silk screen | Double-sided or single-sided in white,yellow,black,or negative |
Silk screen min line width | 0.006'' or 0.15mm |
Max board dimensions | 20inch*20inch or 500mm*500mm |
Min drill hole diameter | 0.01'',0.25mm.or 10 mils |
Surface finish | HASL,Nickle,Imm Gold,Imm Tin,Imm Silver,OSP etc |
Board thickness tolerance | ± 10% |
Copper weight tolerance | ± 0.25oz |
Minimal slot width | 0.12'',3.0mm,or 120mils |
V-score depth | 20-25% of board thickness |
Plated through holes | Yes |
Sink holes | Yes |
Design file format | Gerber RS-274X,274D,Eagle and AutoCAD'S DXF,DWG |
PCB Lead Time
Single,Double sided | Four layer | Six layer | Above eight layer | HDI | |
Sample lead time(Normal) | 5-6 | 6-7 | 7-8 | 10-12 | 15-20 |
Sample lead time(Fastest) | 48 to 72 hours | 5 | 6 | 6-7 | 12 |
Mass production lead time(First batch) | 7-9 | 10-12 | 13-15 | 16 | 20 |
PCB Assembly Capabilities
| Quantity | Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000 |
| Type of Assembly | SMT,Thru-hole |
| Solder Type | Water Soluble Solder Paste,Leaded and Lead-Free |
| Components | Passive Down to 0201 size BGA and VFBGA Leadless Chip Carriers/CSP Double-sided SMT Assembly Fine Pitch to 0.8mils BGA Repair and Reball Part Removal and Replacement |
| Bare Board Size | Smallest:0.25*0.25 inches Largest:20*20 inches |
| File Formate | Bill of Materials Gerber files Pick-N-Place file |
| Types of Service | Turn-key,partial turn-key or consignment |
| Component packaging | Cut Tape,Tube,Reels,Loose Parts |
| Turn Time | Same day service to 15 days service |
| Testing | Flying Probe Test,X-ray Inspection AOI Test |
| PCB assembly process | Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
Detailed Terms for PCB Assembly
Technical requirement for PCB&PCB assembly:
---- Professional Surface-mounting and Through-hole soldering Technology
---- Various sizes like 1206,0805,0603 components SMT technology
---- ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
---- PCB Assembly With UL,CE,FCC,Rohs Approval
---- Nitrogen gas reflow soldering technology for SMT.
---- High Standard SMT&Solder Assembly Line
---- High density interconnected board placement technology capacity.
Quote requirement for PCB&PCB assembly:
---- Gerber file and Bom list
---- Clear pics of PCBA or PCBA sample for us
---- Test method for PCBA
Moko PCB Assembly Show
Moko Factory Overview
Contact with us:
Product show in different languages:
English: http://mokotechnology.en.china.cn/
Arabic: http://arabic.china.cn/gs-suppliers_mokotechnology/all-products.html
Japanese: http://japanese.china.cn/gs-suppliers_mokotechnology/all-products.html
Spanish: http://spanish.china.cn/gs-suppliers_mokotechnology/all-products.html
Portuguese: http://portuguese.china.cn/gs-suppliers_mokotechnology/all-products.html
German: http://german.china.cn/gs-suppliers_mokotechnology/all-products.html
French: http://french.china.cn/gs-suppliers_mokotechnology/all-products.html
Russian: http://russian.china.cn/gs-suppliers_mokotechnology/all-products.html
Korean: http://korean.china.cn/gs-suppliers_mokotechnology/all-products.html
Italian: http://italian.china.cn/gs-suppliers_mokotechnology/all-products.html
Turkish: http://turkish.china.cn/gs-suppliers_mokotechnology/all-products.html
Vietnamese: http://vietnamese.china.cn/gs-suppliers_mokotechnology/all-products.html
Thai: http://thai.china.cn/gs-suppliers_mokotechnology mokotechnology/all-products.html
Company Profile
MOKO TECHNOLOGY LTD is an expert at PCB and PCBA manufacture, based in Shenzhen, Guangdong, China. We are specialized in manufacturing Single-Sided Boards, Double-Sided Boards and multilayer PCB. We are honored as the excellent supplier of many companies all around this world. We can offer all kinds of services including PCB and PCB assembly sample orders and batch orders. We have got the ISO9001:2000, ISO14001, and UL RoHS certifications. Now our PCB daily capacity reaches 1000 square meters, and PCB assembly can reach 100,000,000 units per month. We deeply believe that our good service and experience will completely meet you need. Integrity, value and innovation are the forces that drive our success. We are the smart choice for you and the trusted source at the center of your deal. Welcome the win-win situation together.
