APS electrical operation desk

FOB Price

US$ 557 - 1,033 / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	KAIWEI
Model Number	APS80135002	Protection Level	IP54
Type	Other, Operation console	External Size	800mm1300mm500mm

Product Description

Specifications

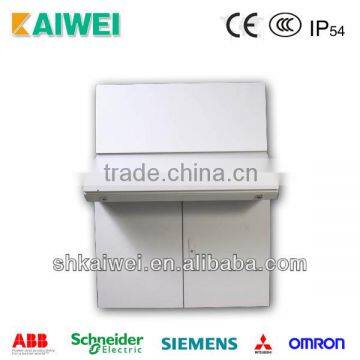

APS electrical operation desk
1.Unique appearance and structure design
2.Can be used independently

Product Description

APS electrical operation desk

1. Material: Cold Rolled Steel Sheet

2. Surface Treatment: Etch Primer for Box Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.

3. Class of Protection: IP54(According to GB4205-1993)

Item Name:		APS electrical operation desk
Material:		Cold Rolled Steel Sheet
Thickness:		Cabinet Body 2.0mm Door Plate:2.0mm Operation Console Board:2.0mm Mounting Plate:2.5mm

Standard Configuration:		Front Single(dual)Door,Operation Console Board,Cabinet Body,Mounting Plate,Door Lock,Sealing Strip,and Hydraulic Support

Surface Treatment:		Etch Primer for Cabinet Body,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.


Class of Protection:		IP54(According to GB4205-1993)

MOQ:		100 PCS
Supply Ability:		10000 PCS/Month
Delivery Time:		10-15 days
Remark:		Special Demands Can Be Customized

No.	Order No.(RAL7032)	Order No.(RAL7035)	Width	Height	Depth
No.	Order No.(RAL7032)	Order No.(RAL7035)	Width	Height	Depth
1	APS80135002	APS80135005	800	1300	500
2	APS10135002	APS10135005	1000	1300	500
3	APS12135002	APS12135005	1200	1300	500
4	APS16135002	APS16135005	1600	1300	500
5	APS80155002	APS80155005	800	1500	500
6	APS10155002	APS10155005	1000	1500	500
7	APS12155002	APS12155005	1200	1500	500
8	APS16155002	APS16155005	1600	1500	500
9	APS80134002	APS80134005	800	1300	400
10	APS10134002	APS10134005	1000	1300	400
11	APS12134002	APS12134005	1200	1300	400
12	APS16134002	APS16134005	1600	1300	400
13	APS80154002	APS80154005	800	1500	400
14	APS10154002	APS10154005	1000	1500	400
15	APS12154002	APS12154005	1200	1500	400
16	APS16154002	APS16154005	1600	1500	400

Details:

Main advantage of APS electrical operation desk :

Unique appearance and structure design embodies luxury character of the console body.
The three sections of console body are dismountable and can be used independently.
A and B operating panels, back display cover plate and front and back single(dual) doors can be opened and fixed with luxury hydraulic supports and high-strength draw bars, embodying humanized design and installation convenience.
Ground clearance of front and back single(dual) doors are sufficient, about 25mm, ensuring smoothness and convenience of door opening.
Specific three-section console structural dimension is detailed in drawing.
